B2GO Allwinner H618 Quad Core Smart Media Player 2GB 16GB X98H Android 12.0 TV Box
Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.
● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service
● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee
1,218
1
- Description
X98H TV Box Product Specifications:
| Product Model | X98H | Brand | B2GO | |
| Basic parameters | ||||
| CPU | Chipset | Allwinner H618 | ||
| Architecture | Quad core ARM Cortex A53 | |||
| GPU | Chipset | Mali G31 MP2 | ||
| RAM | Capacity | 4GB (2GB Optional) | ||
| ROM | Capacity | 32GB (16GB Optional) | ||
| External storage | Support USB Storage Devices | |||
| Software | ||||
| Operating system | OS Version | Android 12 | ||
| Language | Multi-Language | |||
| Multimedia | Video | Video Decoder: | ||
| H265 Main10 @L5. 1 decoder up to 4K @60fps or 6K @30fps | ||||
| VP9 Profile 2 decoder up to 4K @ 60fps | ||||
| AVS2 Jizhun 10bit decoder up to 4K @ 60fps | ||||
| H.264 BP/MP/HP @ L4.2 decoder up to 4K @30fps | ||||
| Multi-format 1080p @ 60fps video playback formats ,including H.264 BP/MP/HP , H 263 BP , VP8 , MPEG-1 MP/HL ,MPEG-2 MP/HL , MPEG-4 SP/ASP @ L5 , AVS +/AVS JizhunWMV9/VC1 , etc | ||||
| Video encoder: | ||||
| H.264 BP/MP/ HP encoder up to 4K@25fps or 1080p @ 60fps JPEG snapshot performance of 1080p @ 60fps | ||||
| Audio | MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG,BMP,GIF,PNG,TIF | |||
| Network service | ||||
| Wi-Fi | Type | IEEE802. a/b/g/n/ac /ax | ||
| Frequency | 2.4GHZ , 5.8GHZ | |||
| Antenna Type | Inside antennas | |||
| Bluetooth | Bluetooth | BT5.0+ | ||

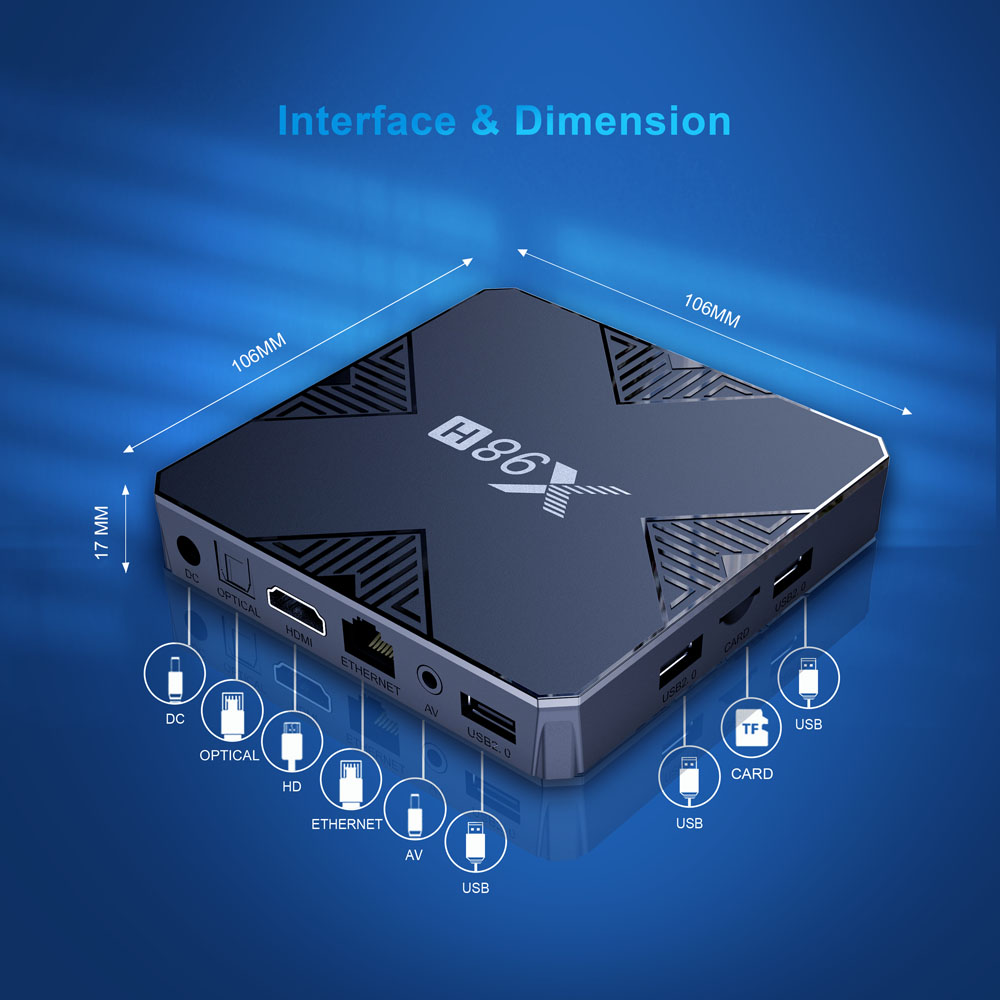

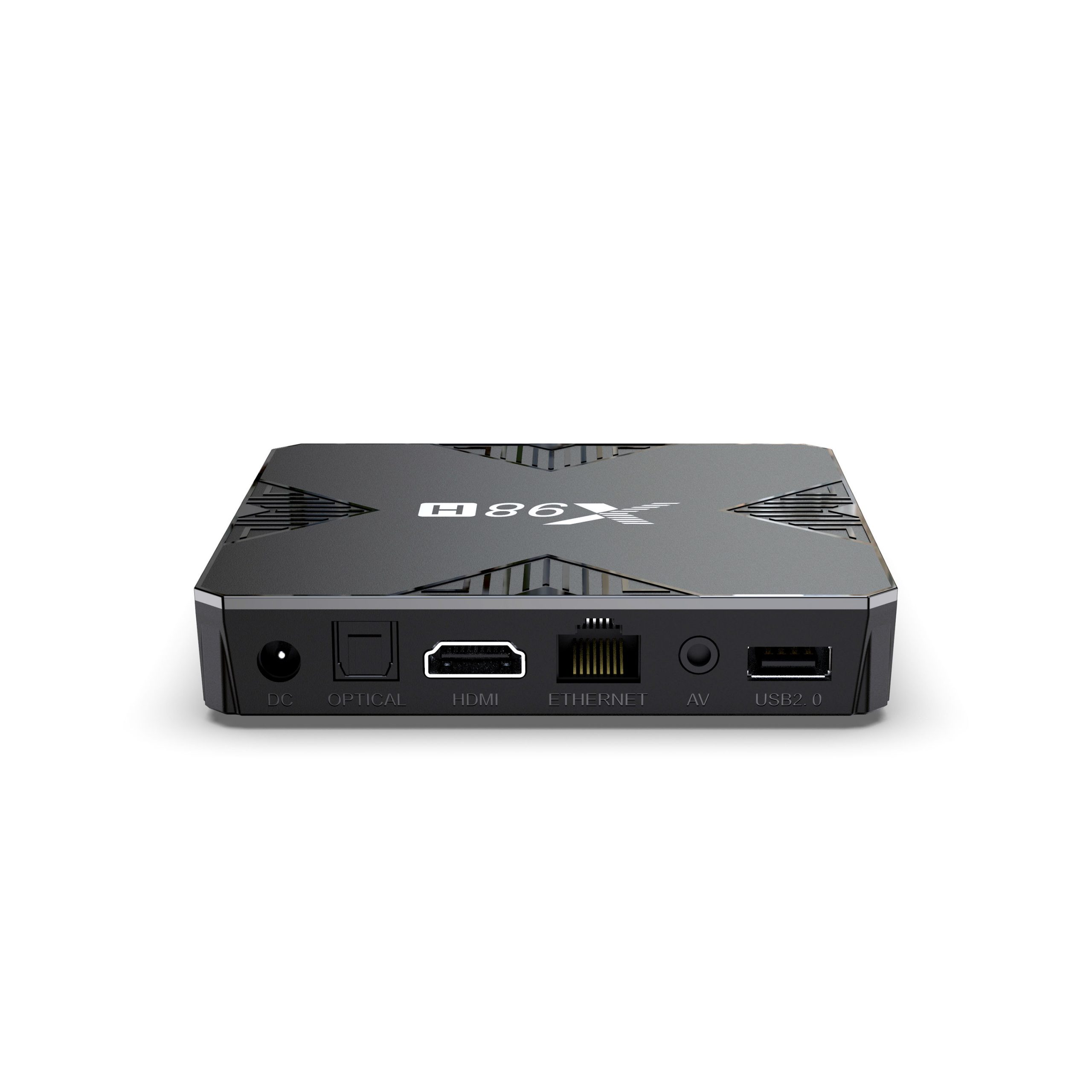

| Interface | ||||
| Charge | DC connector | DC 5V- 2A | ||
| Video output | HDMI | 1* 4K 2K Output, HDMI 2.0a | ||
| CVBS | Support PAL/NTSC | |||
| Audio | OPTCAL | 1 * SPDIF | ||
| Ethernet | Ethernet | 1*Default 100M( optional 1000M) | ||
| TF Card | External memory | 1* TF Card | ||
| USB port | USB Host | 3 * USB 2.0 | ||
| Upgrade | KEY | Update firmware | ||
| Others | RTC | Optional | ||
| Appearance | ||||
| Body Material | Plastic | |||
| Color | Black | |||
| Size | 106x106x19mm | |||
| Weight | 0.14 | |||

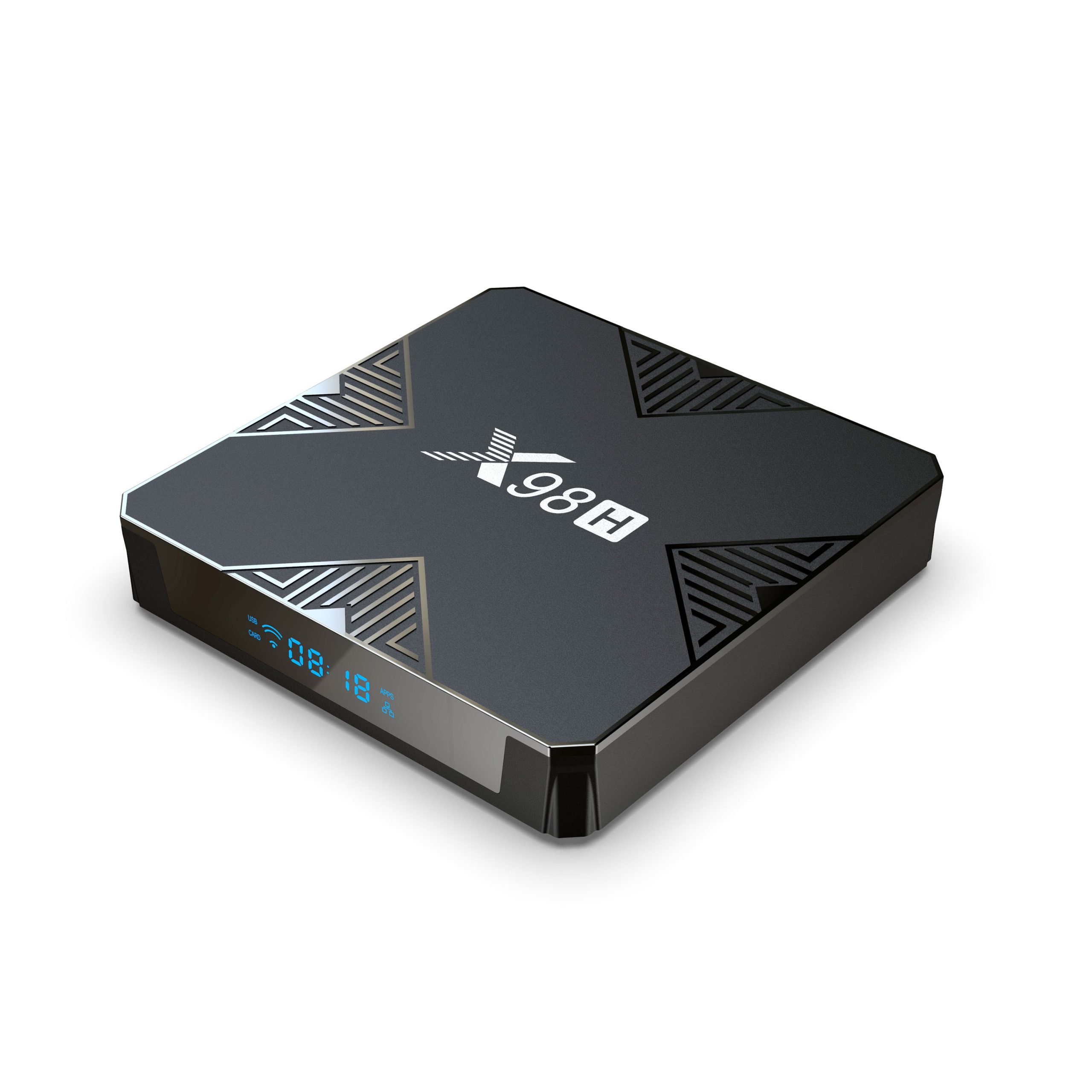

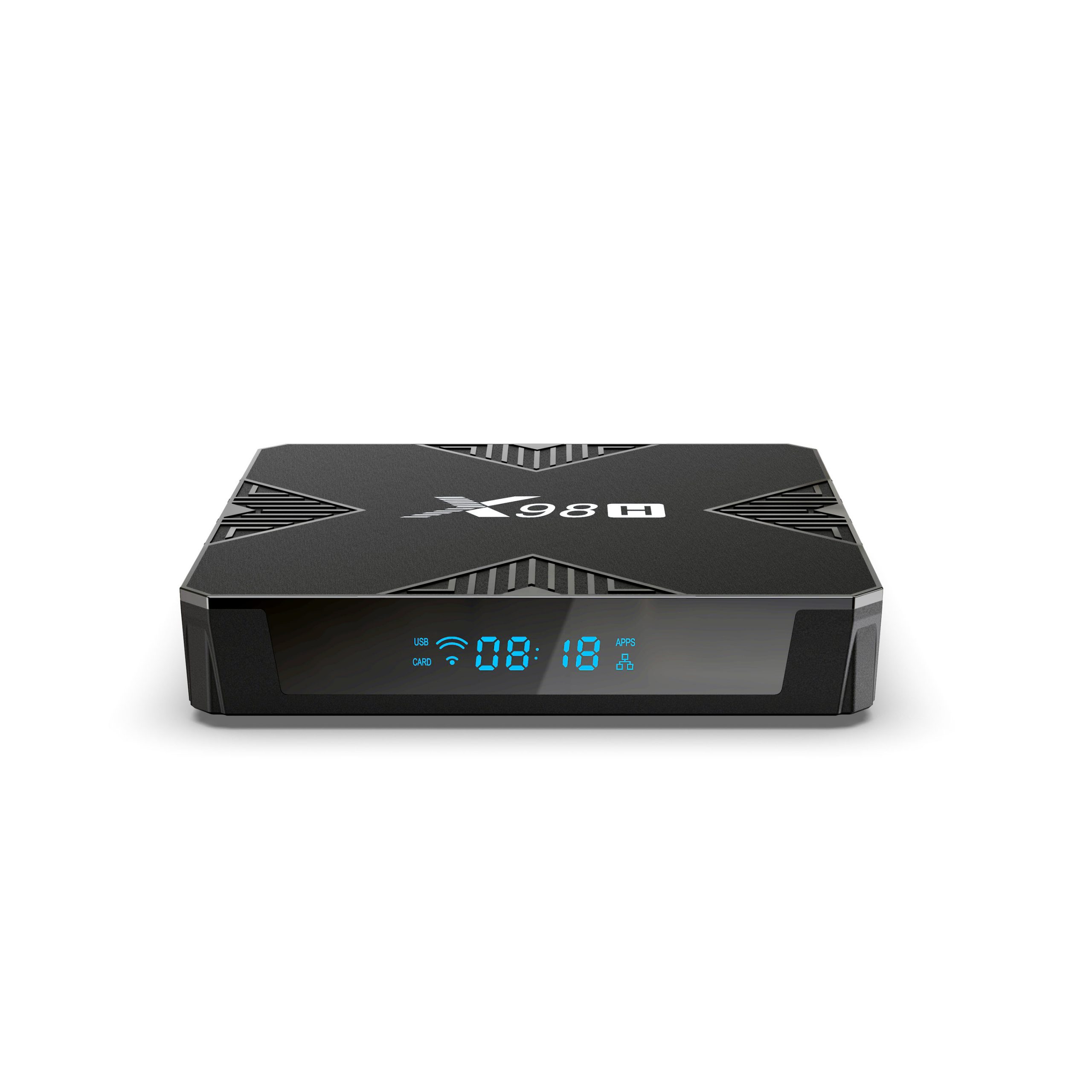

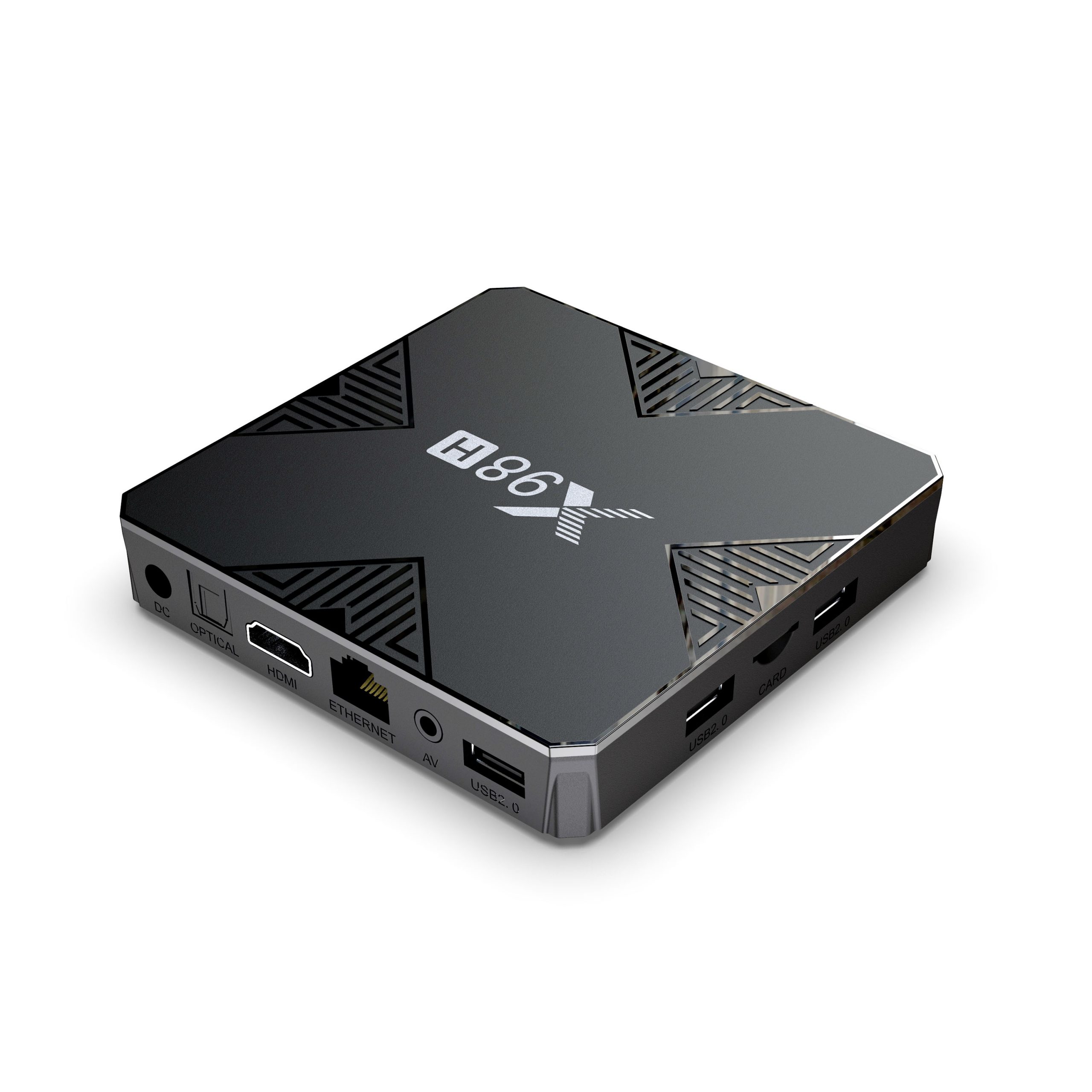

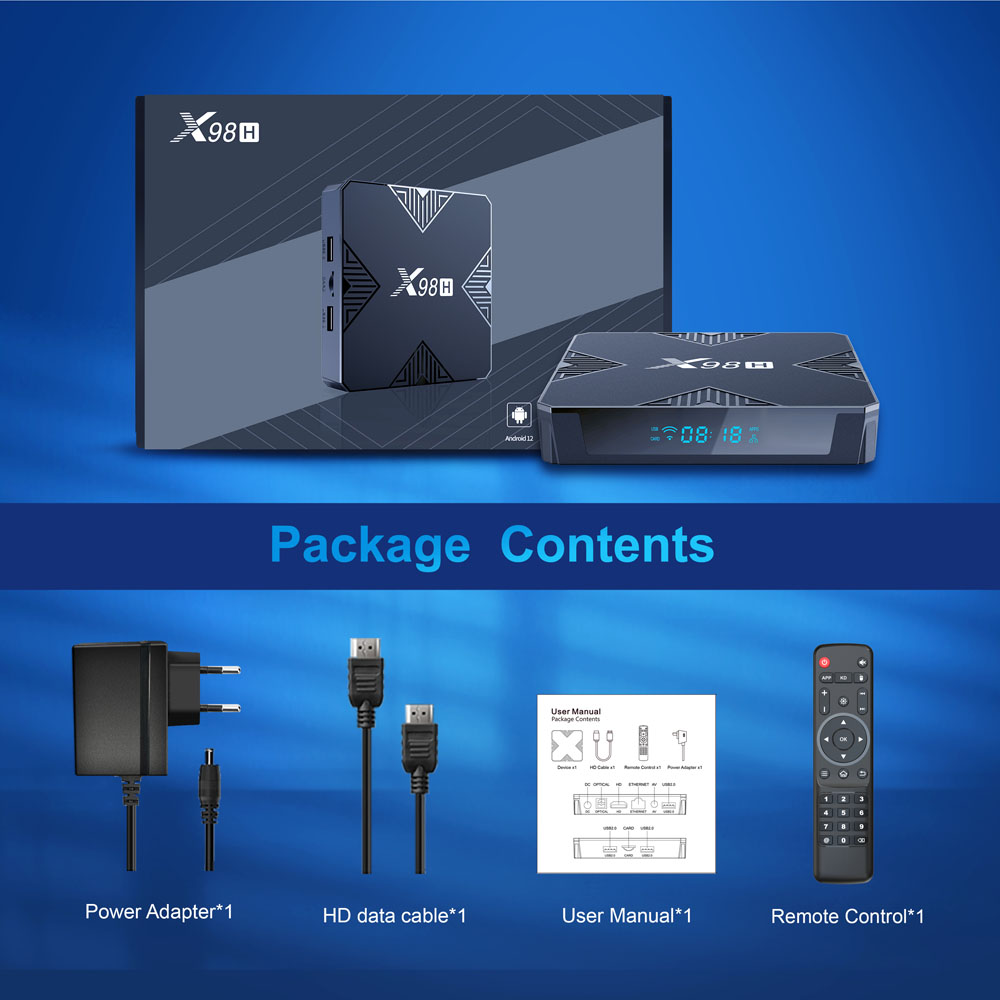

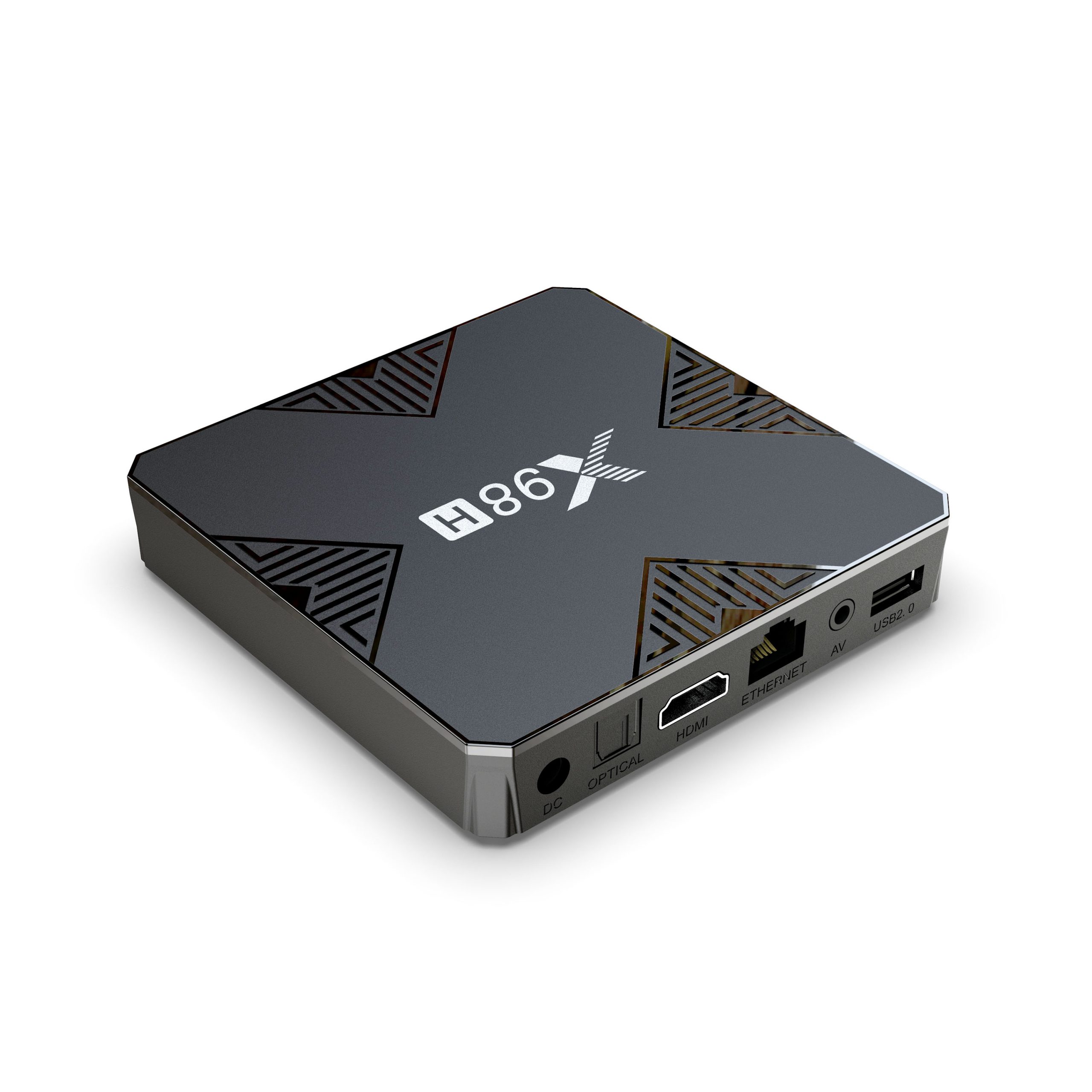

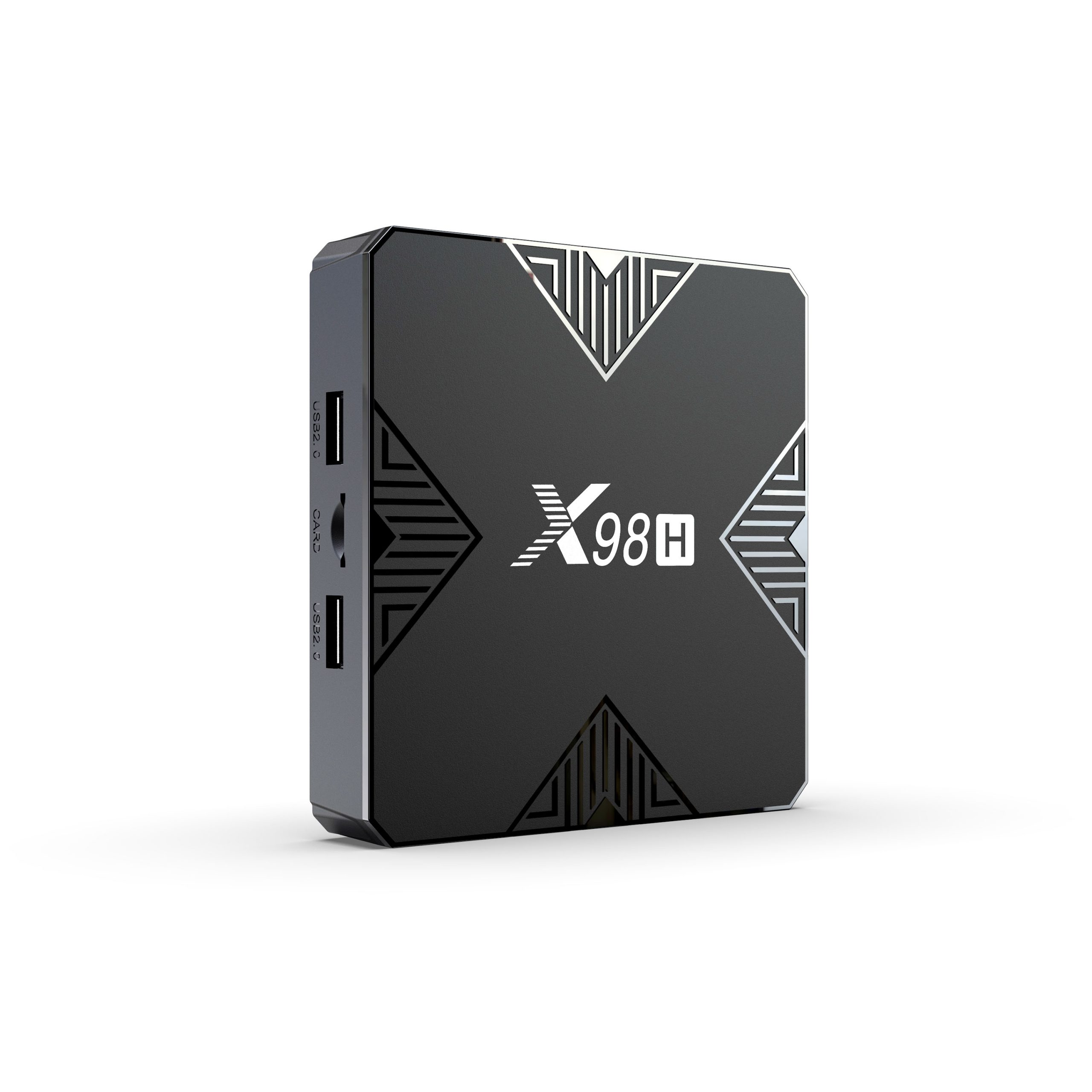

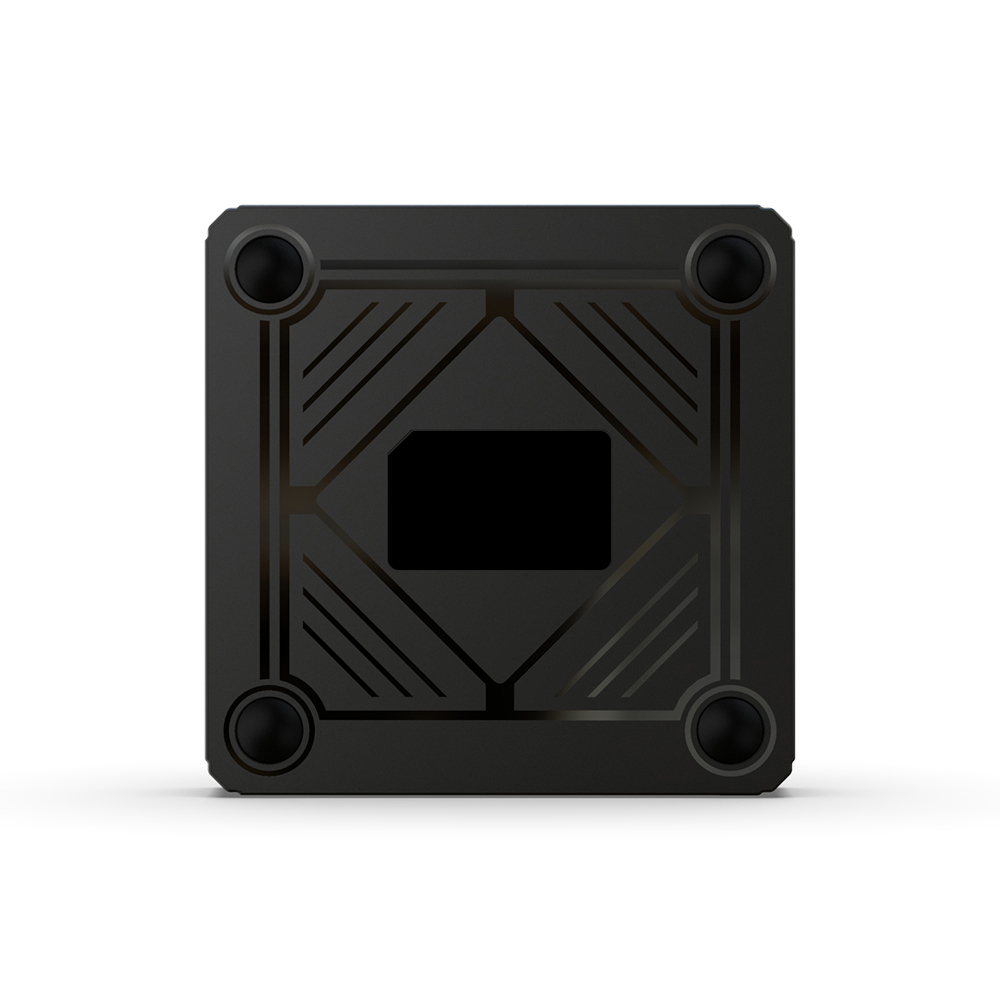

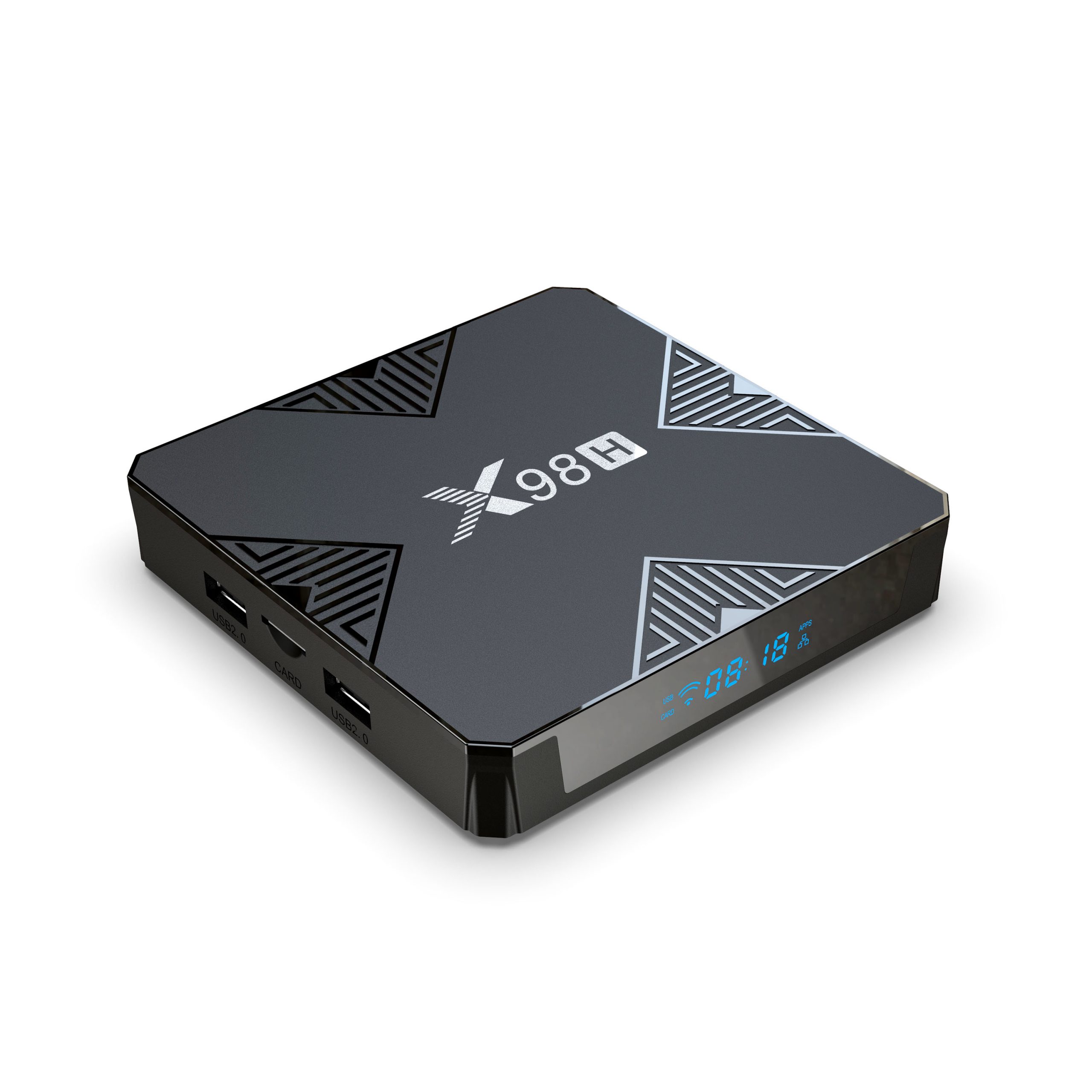

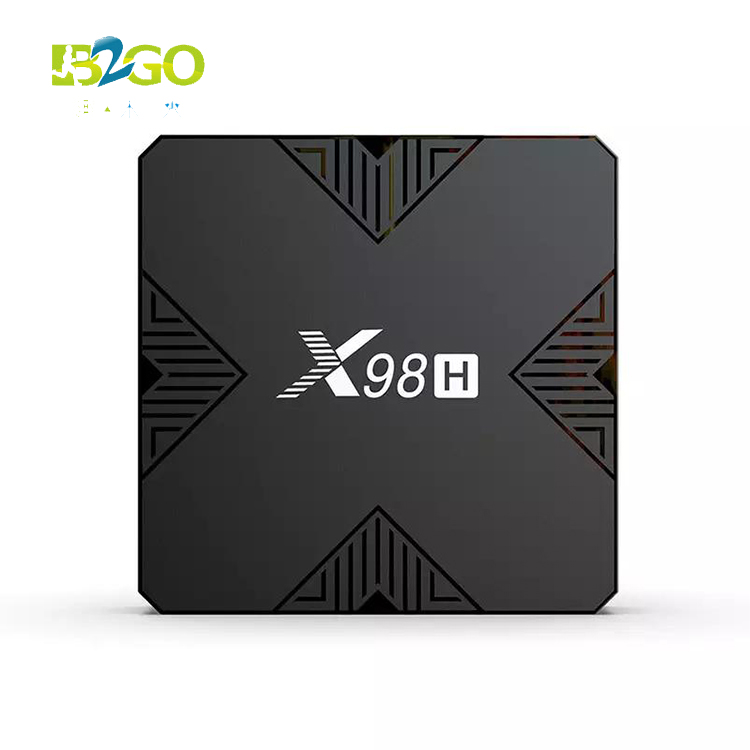

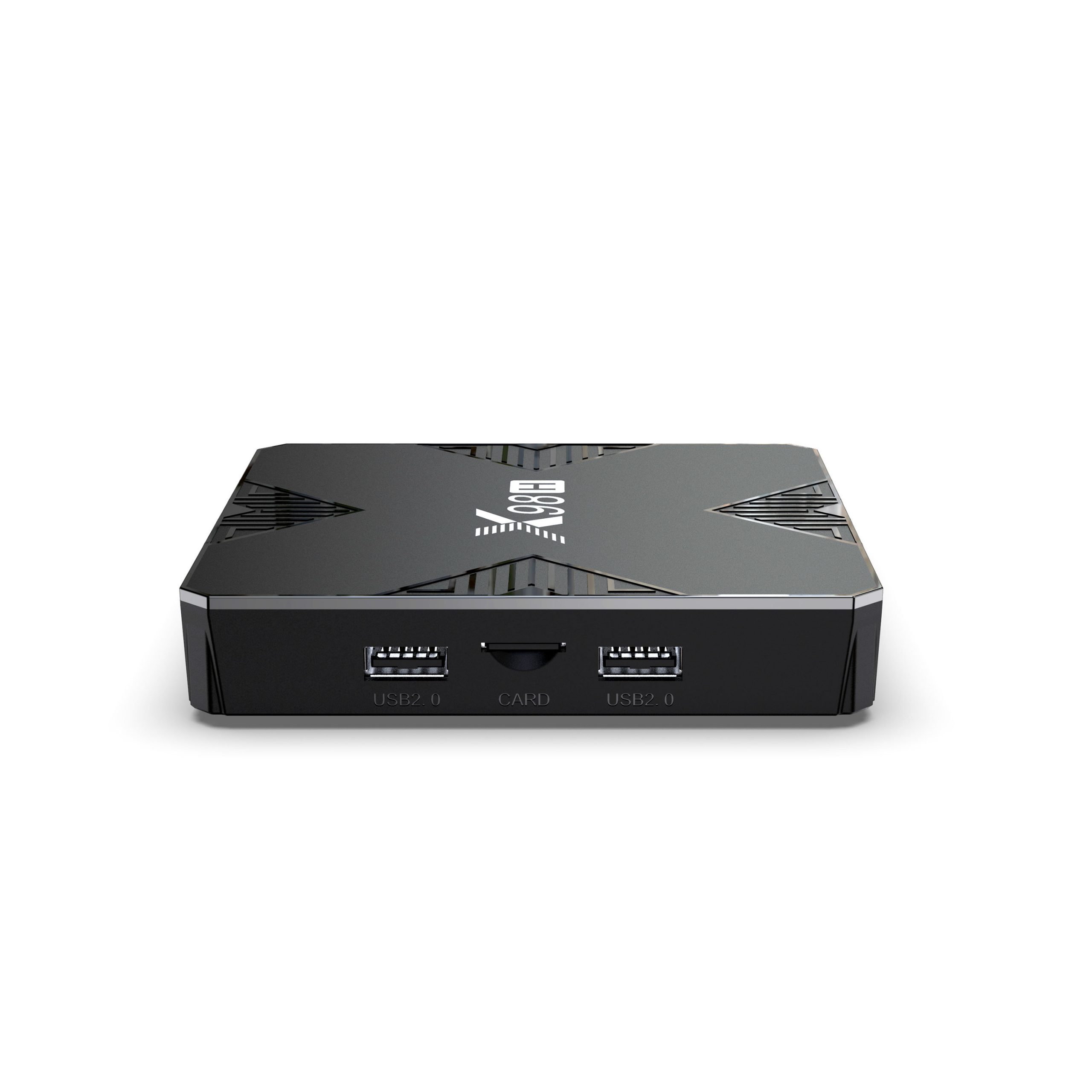

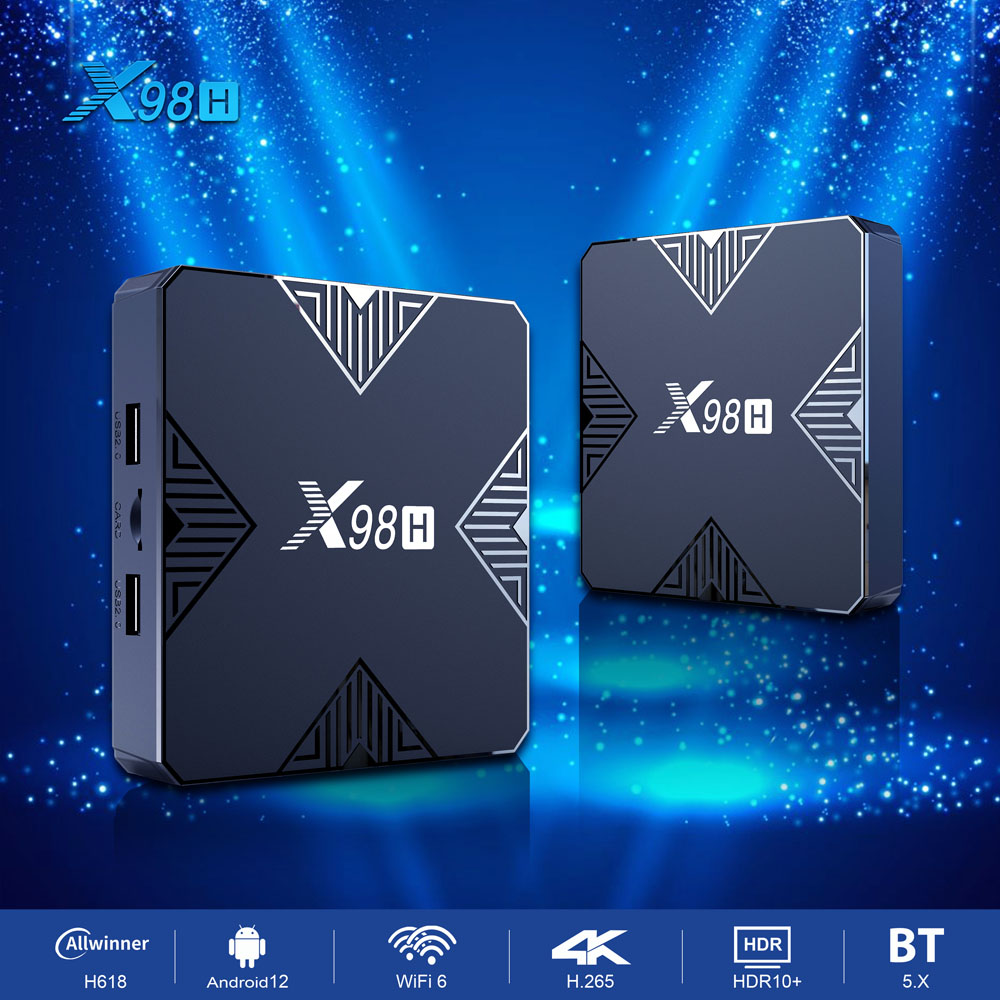

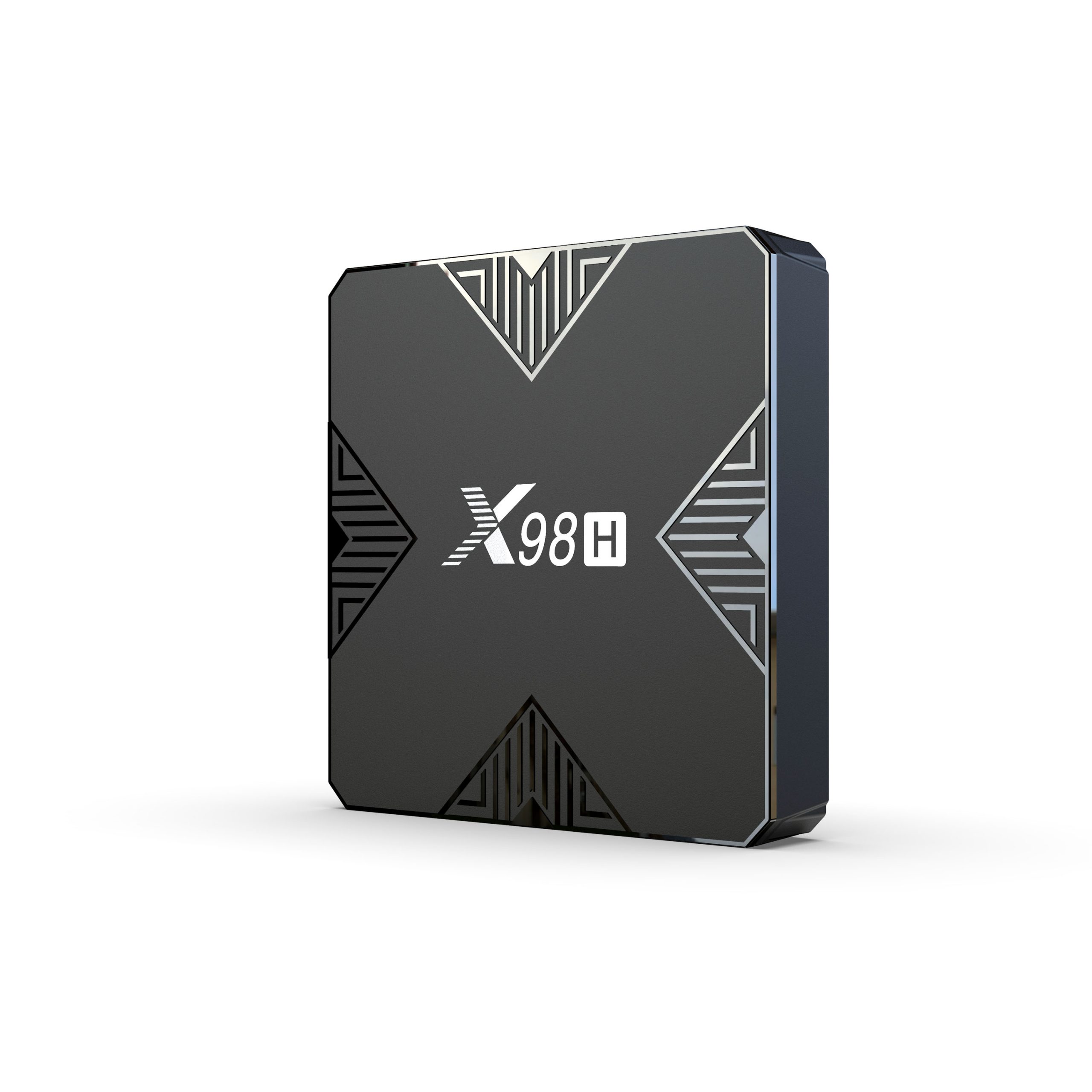

X98H TV Box Product Pictures:
