OEM Customize HK1 Rbox K8S Android 13.0 TV Box with Rockchip RK3528 Support 8K Video Decoding Dual Band Wifi

Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.
● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service
● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee

GET PRICE
578 2
  • Description

HK1 Rbox K8S TV Box Specifications:

System
CPU
Quad Core ARM Cortex A53
GPU
Mali-450
Memory
2GB/4GB
Flash
16GB/32GB/ 64GB/128G
WiFi
IEEE 802.11 a/b/g/n/ac/ax 2.4G/5G
Bluetooth
BT 5.0

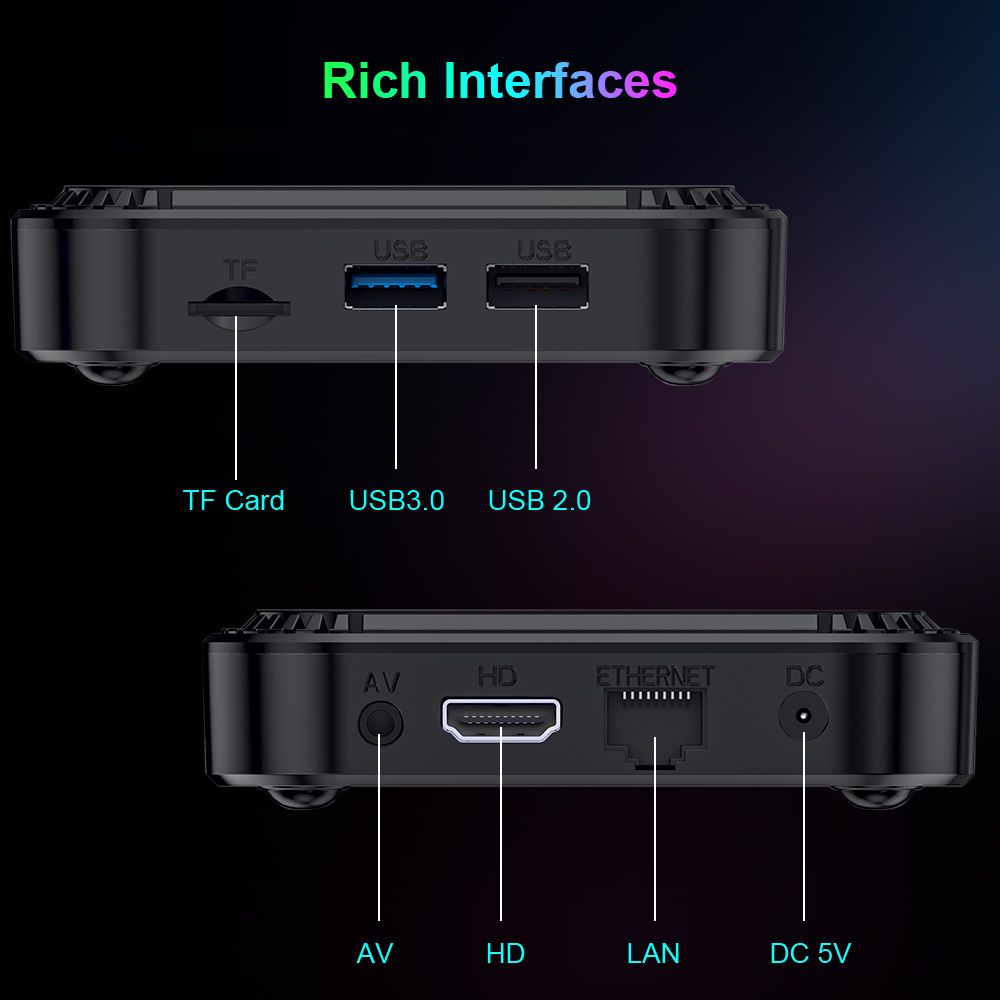

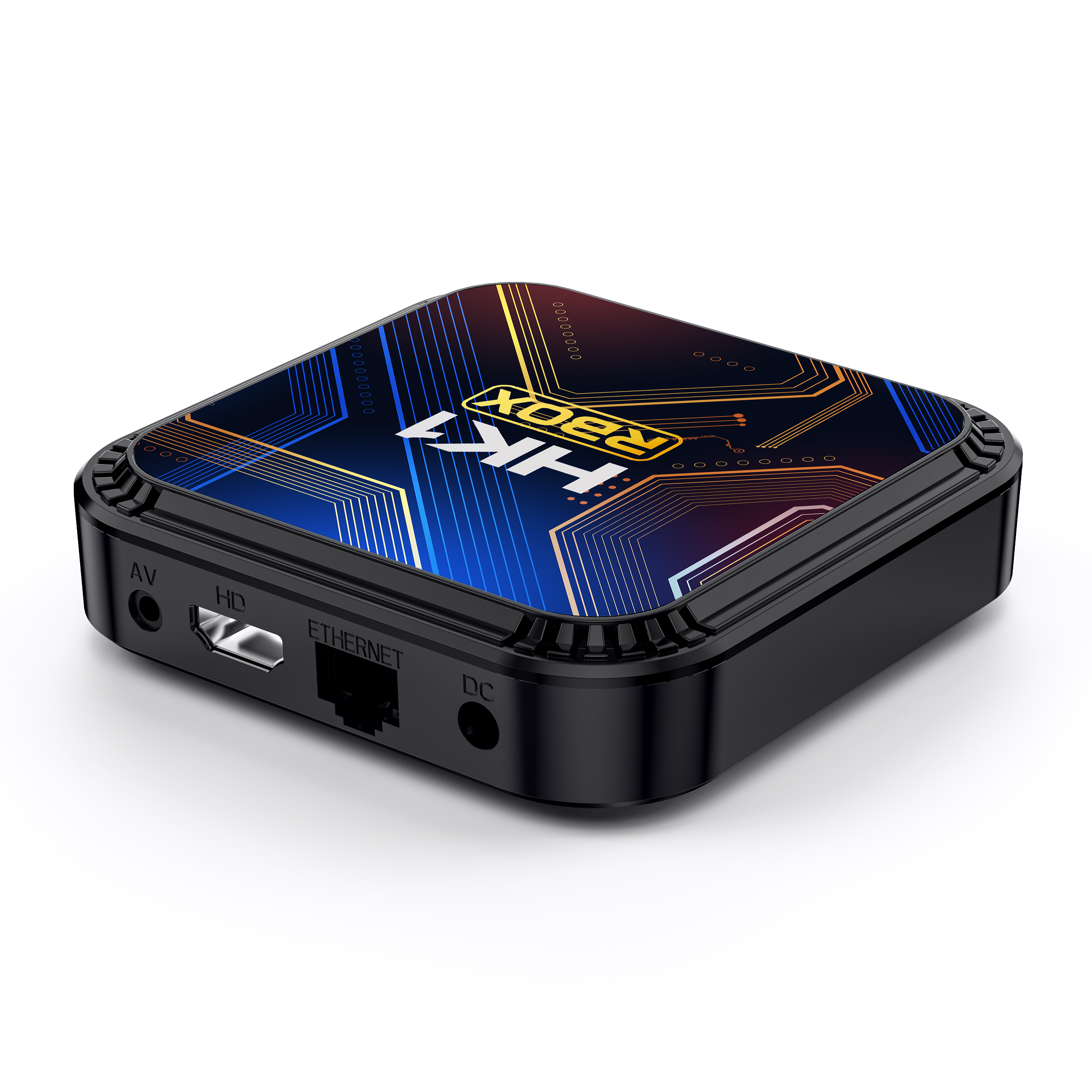

I/O

1*HDMI
4K*2K UHD Output
1*AV
Support

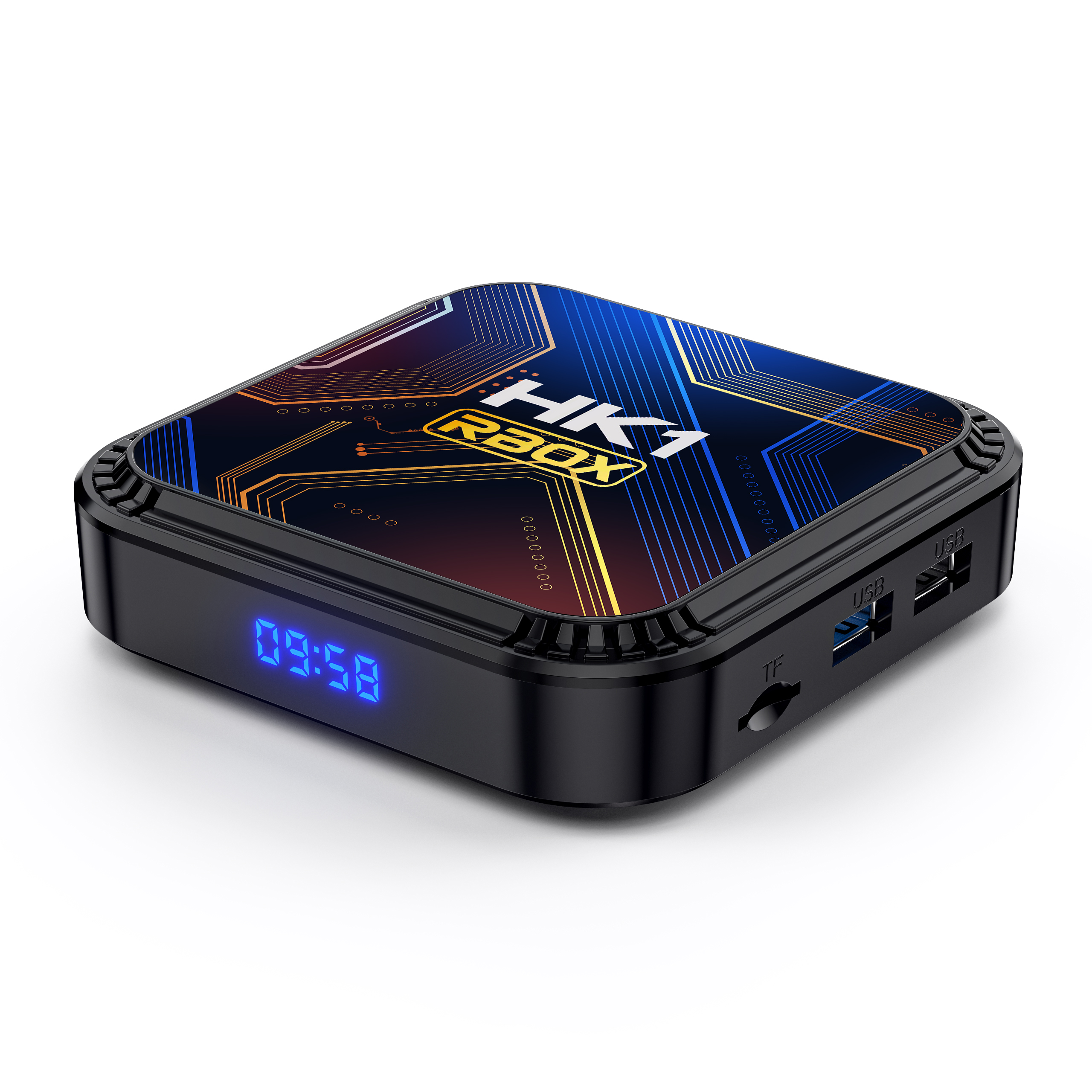

2*USB
1*USB 2.0,1*USB 3.0
1*IR Reciver
Remote Reciver Connect
1*RJ45
Ethernet Interface;Support 100M
1*TF CARD
Support 4GB/8GB/16GB/32GB/64GB/128GB/256GB
1*DC
5V/2A
Software
OS
Android 13.0

Video

Video Decoder
 Real-time video decoder of MPEG-1, MPEG-2, MPEG-4 H.263, H.264/AVC, H.265/HEVC, MVC VC-1 AVS, AVS+,AVS2
H.265 HEVC/MVC Main10 L6.1 : 8K@25fps (7680×4320)
 H.264/AVC BP/MP/HP profile @ level 5.1; H.264/AVC MVC; up to 4Kx2K @ 60fps
 H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps
 AVS2 4KX2K @60fps
 MPEG-1, Main profile, up to 1080P @ 60fps
 MPEG-2, SP@ML, MP@HL, up to 1080P @ 60fps
 MPEG-4, ASP profile @ level 5, up to 1080P @ 60fps
 AVS, Jizhun profile @ level 6.0; up to 1080P @ 60fps
 AVS-P16 (AVS+), up to 1080P @ 60fps
 H.263, up to 576P @ 60fps
 VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P @ 60fps

Display Interface
 Support HDMI 2.0b output up to 4K 10bit @60Hz
 TV interface: TV encoder 10bit out for DAC
 HDMI interface:
 24 bit (RGB888 YCbCr444), 30 bit(RGB101010,YCbCr 420, YCbCr 444)
 Max output resolution 4K for HDMI, 480i/576i for CVBS
 Support 1 cluster layer, 4 smart layer
 Support HDR10, HLG HDR, Vivid HDR

Audio
Supports MP3, AAC, WMA, RM, FLAC
HD JPEG、BMP、GIF、PNG、TIF
Language
Multi-Language
Appliactions
Online
Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
Apps
Apps download freely form android market、amazon app store etc.
Medium
Local Media playback,Support HDD, U Disck ,TF Card .
Talk online
Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc

Others

Support Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard
Packing:
Product dimension:
Qty per unit packing:
Unit packing: (LxWxH):(MM)
Unit packing (G.W.):
Export carton (WxHxL):(MM)
Export carton (G.W.):
Qty per export carton:20PCS

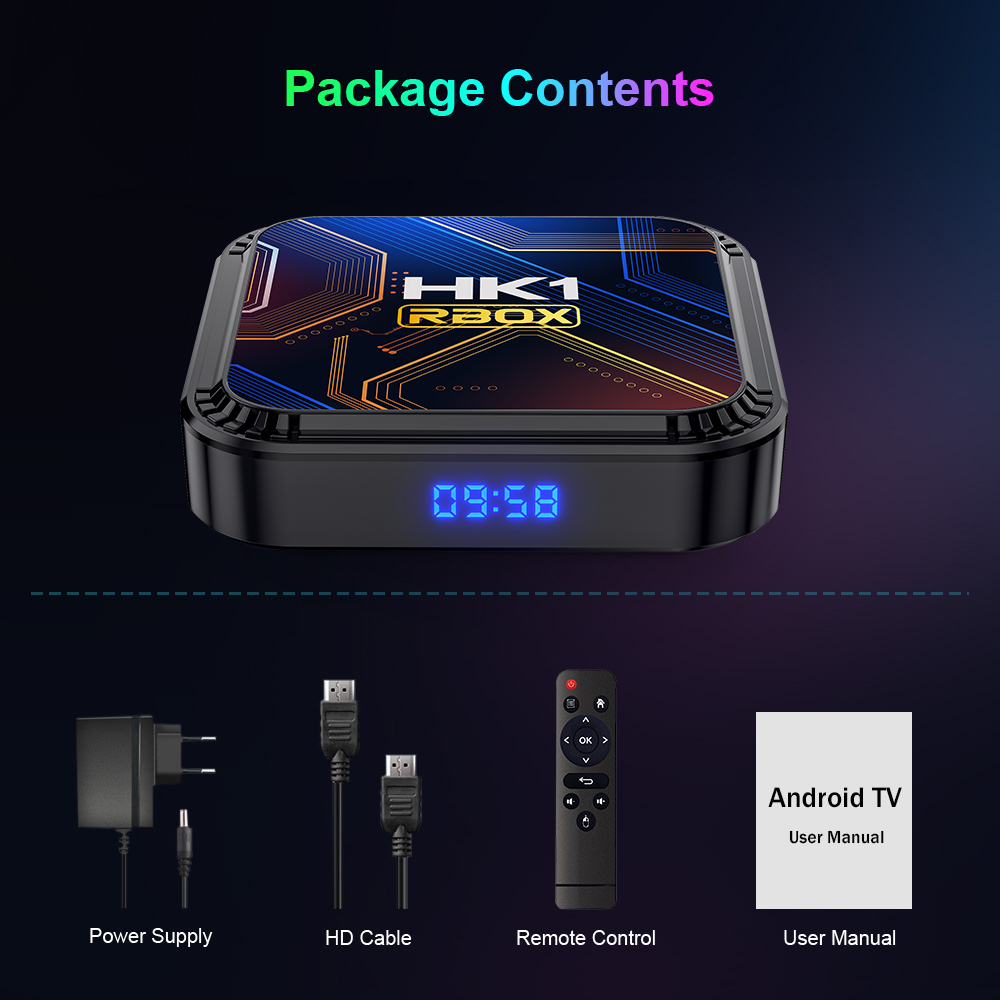

Accessories :
1、HDMI cable *1
2、IR Remote *1
3、User Manual *1
4、Package box *1
5、Power adapter *1

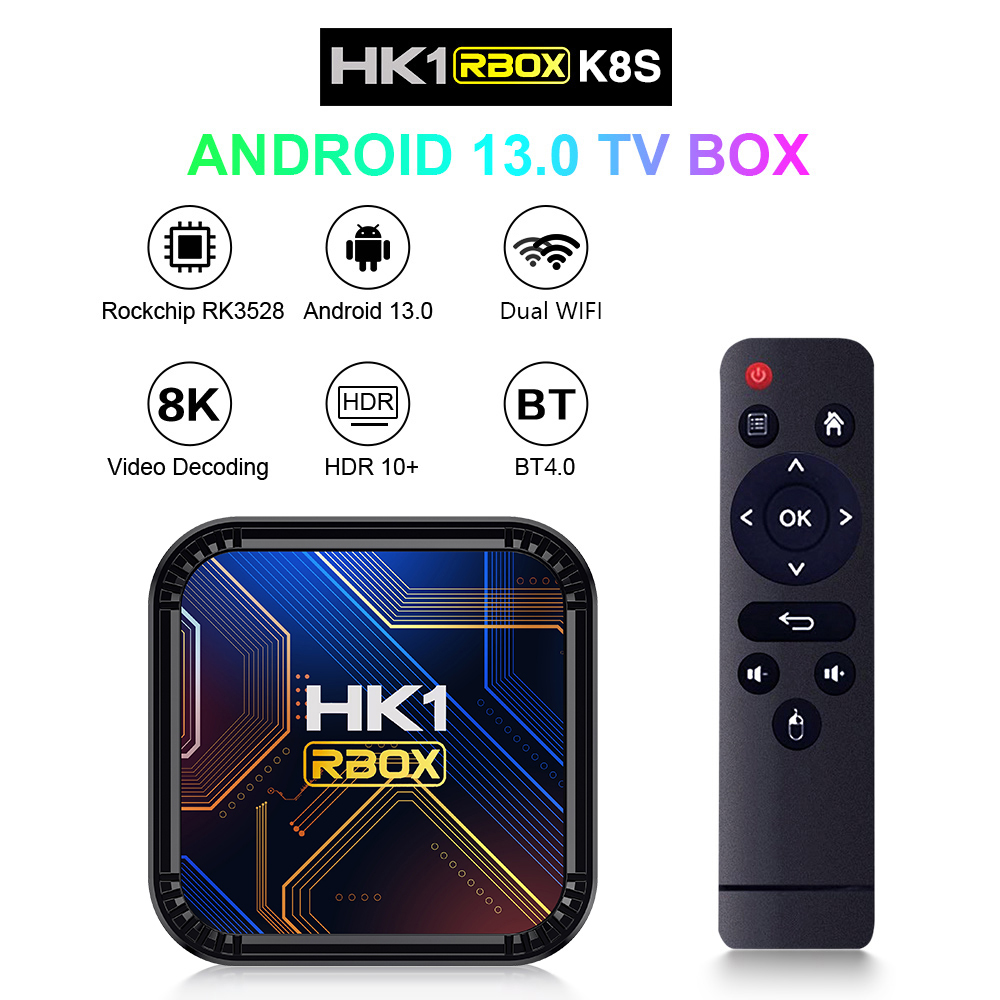

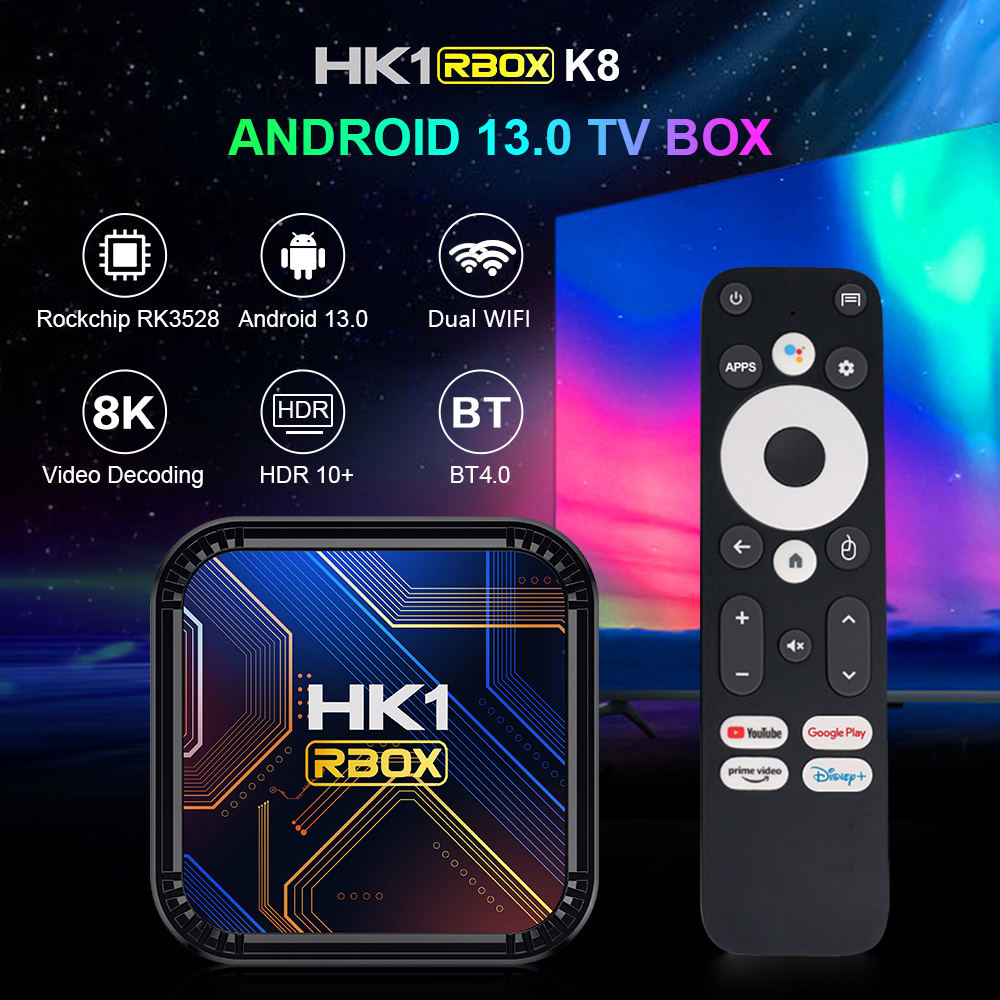

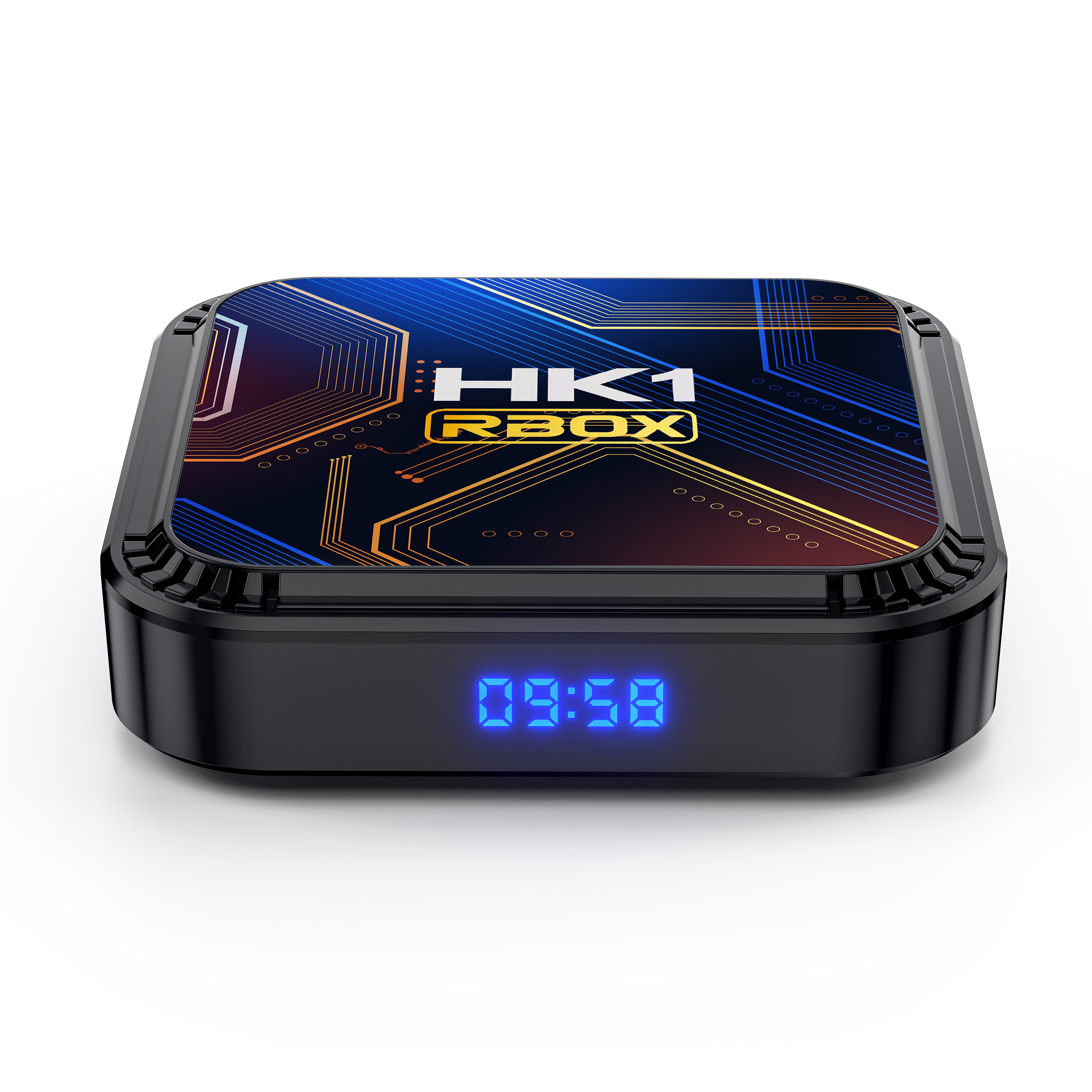

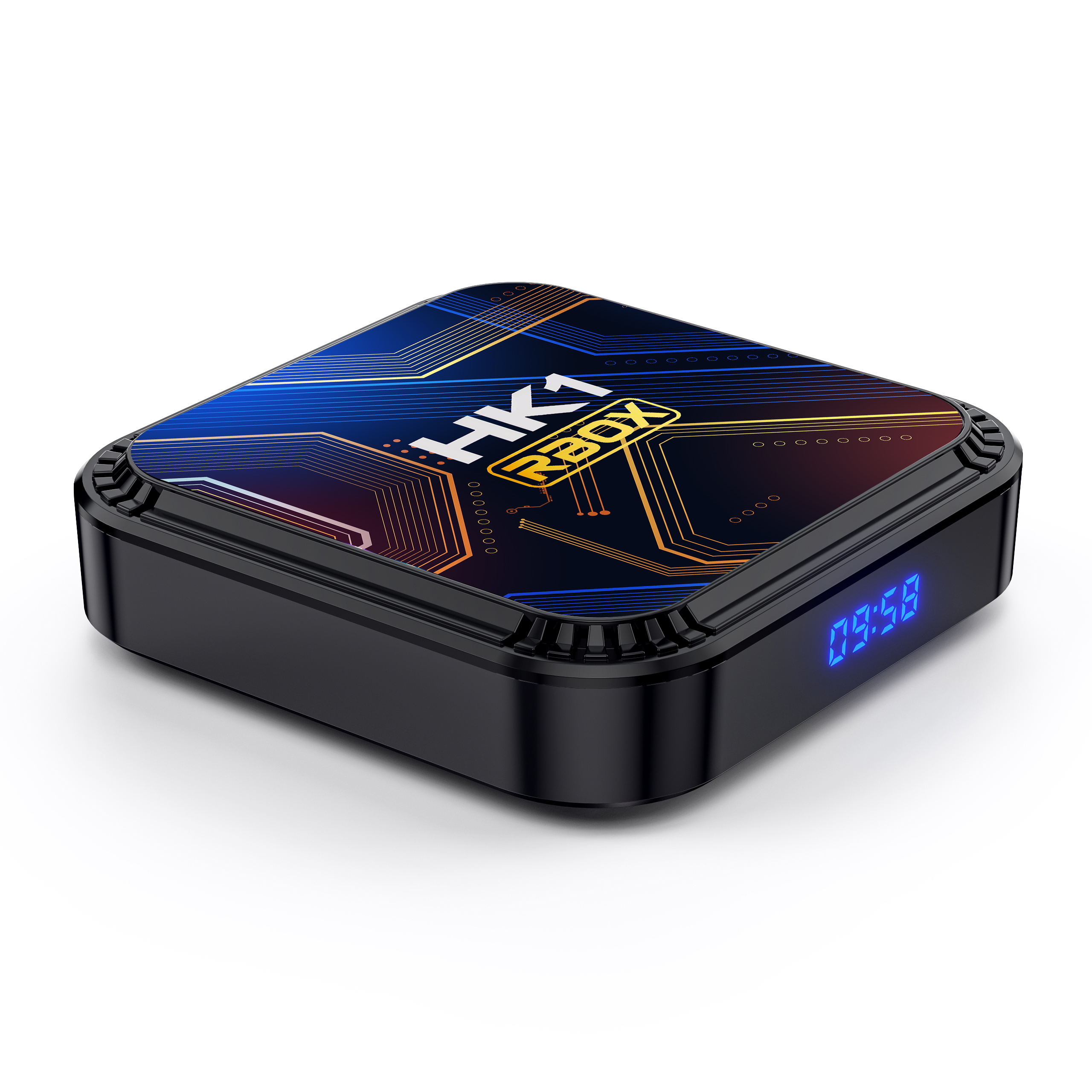

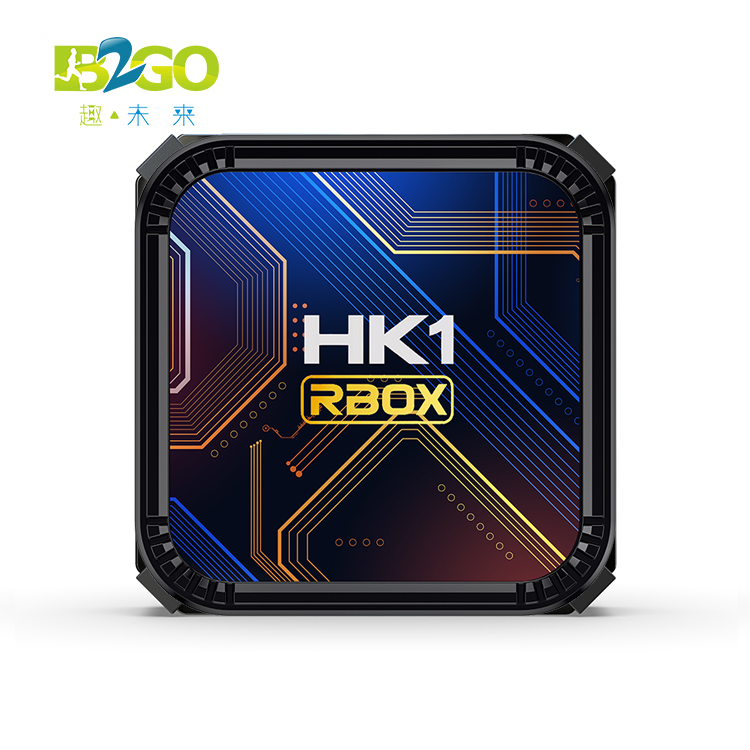

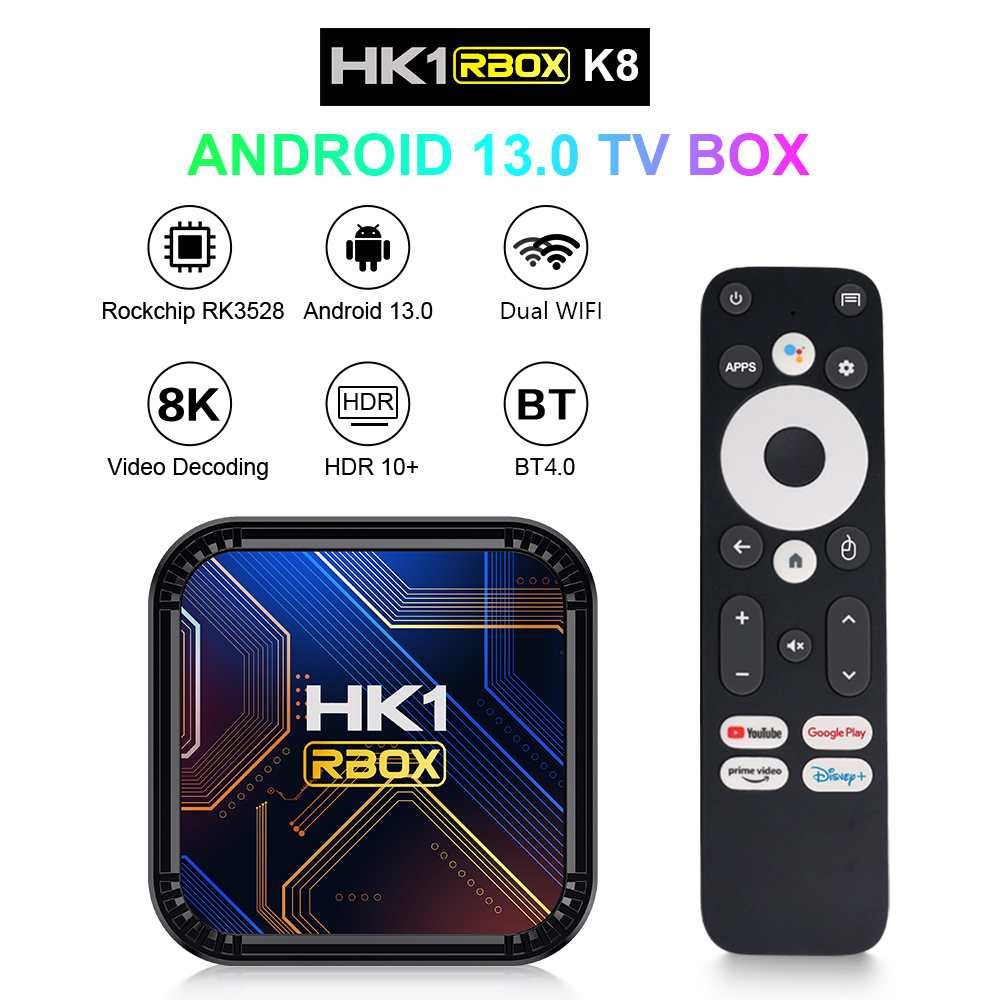

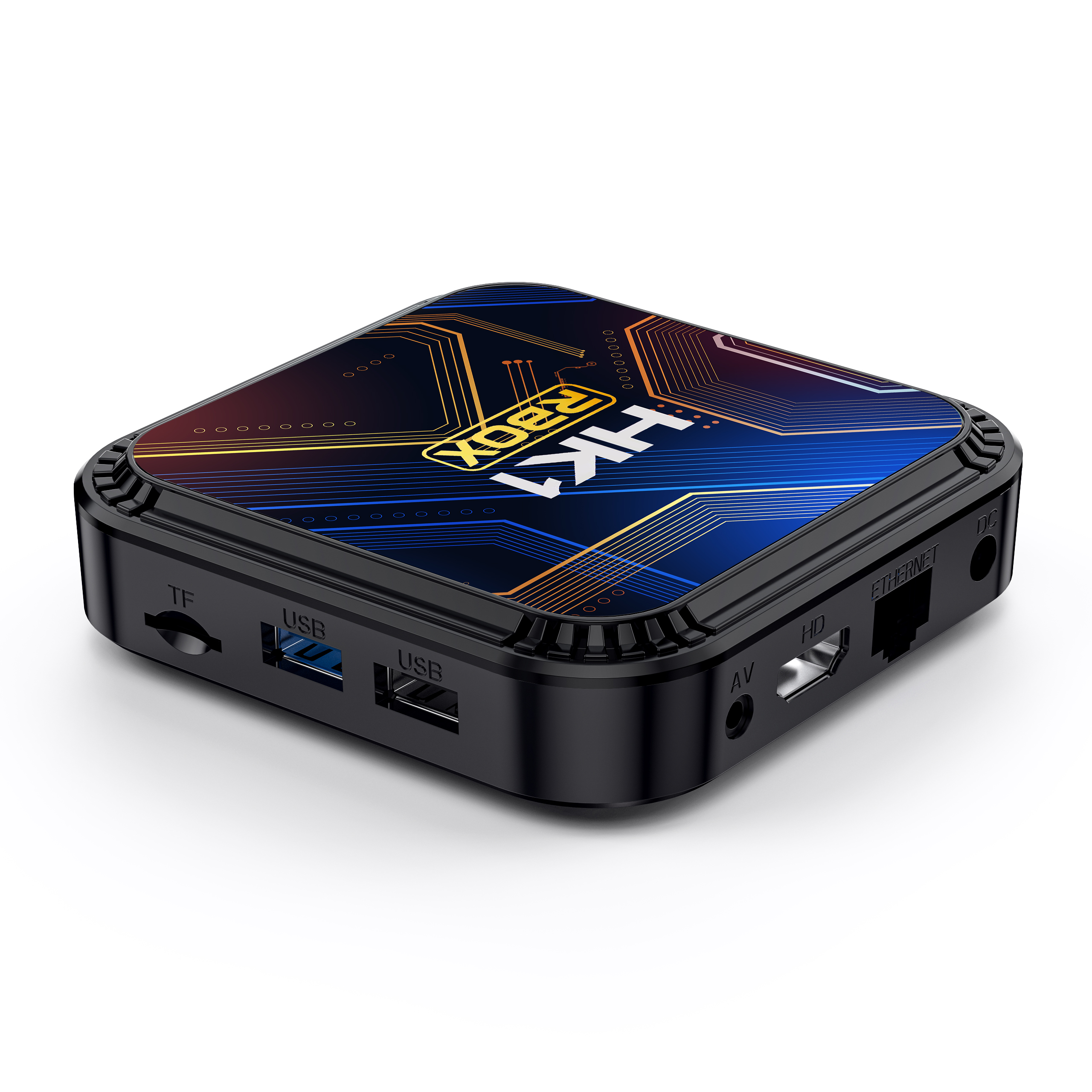

HK1 Rbox K8S Pictures:
