X96Q Rockchip RK3539 Quad Core 2GB 16GB 4K AV1 Media Player TV Box
Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.
● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service
● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee
16
0
- Description
Product Specifications:
| Basic parameters | ||||
| CPU | Chipset | RK3539 | ||
| Architecture | Quad Core ARM Cortex A55 | |||
| GPU | Chipset | ARM Mali G310 | ||
| Architecture | OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.2 and OpenCL 2.0 support | |||
| RAM | Capacity | Option：1.5/2GB | ||
| ROM | Capacity | Option：8/16GB | ||
| Software | ||||
| Operating system | OS Version | Android 14 | ||
| Language | Multi-Language | |||
| Video/Picture Decoding | AV1 MP-10@L5.1 up to 4Kx2K@60fps | |||
| VP9 Profile-2 up to 4Kx2K@60fps | ||||
| H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps | ||||
| H.264 AVC HP@L5.1 up to 4Kx2K@30fps | ||||
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Image Engine | Supports HDR10+, HDR10 processing | |||
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||
| Network service | ||||
| Wi-Fi | Type | Support IEEE 802.11 b / g / n /ac /ax（WIFI 6） | ||
| Frequency | Support 2.4G and 5G | |||
| Bluetooth | Bluetooth | Support BT5.X | ||

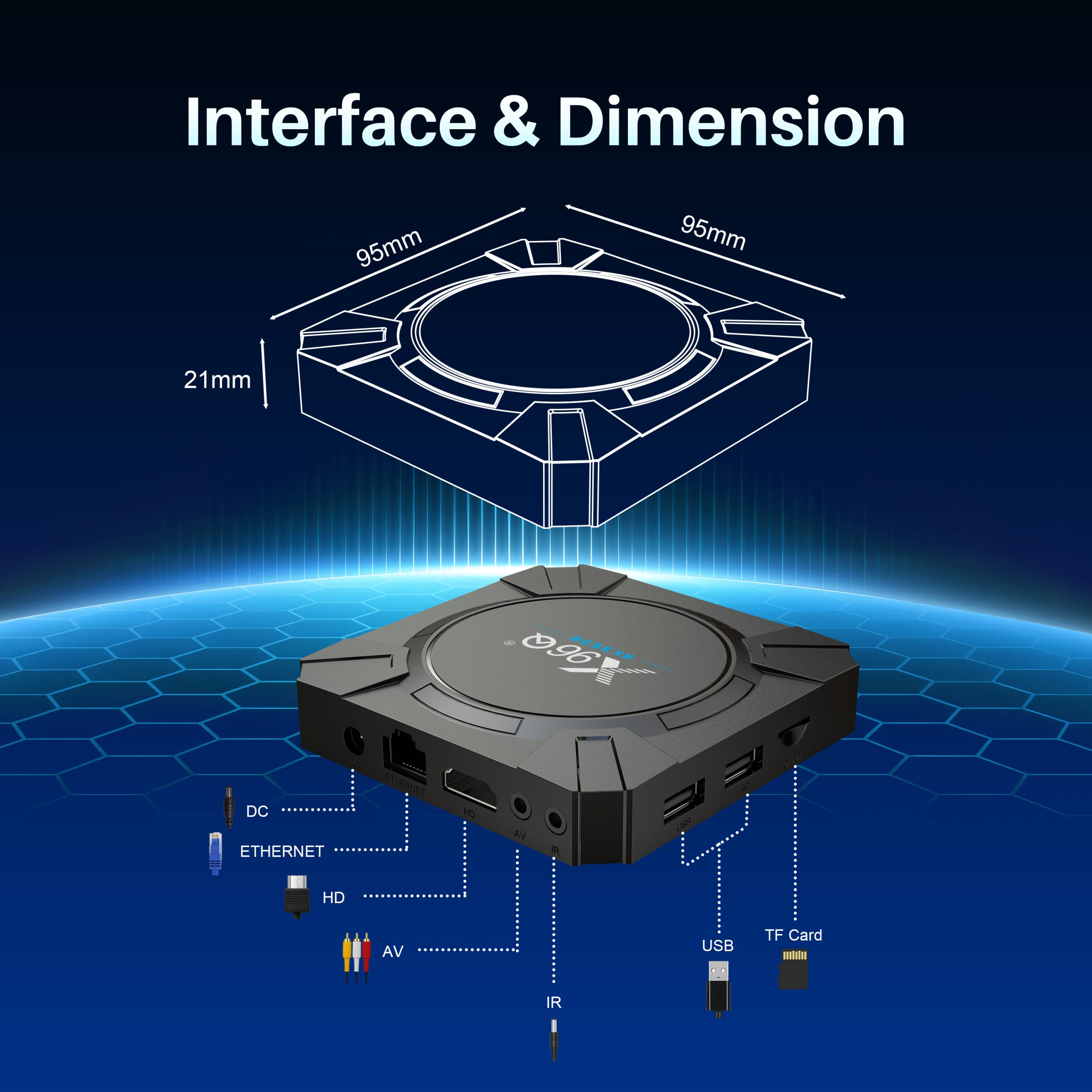

| Interface | ||||
| Micro SD | External memory | Support | ||
| Charge | Charging Port | 5V/2A, DC_IN | ||
| Video output | HDMI OUT | 4K@60 Hz | ||
| AV output | CVBS OUT | Support | ||
| IR Reciver | On board | Support | ||
| Key | Key Function | Update | ||
| Ethernet | Ethernet | 100Mbps | ||

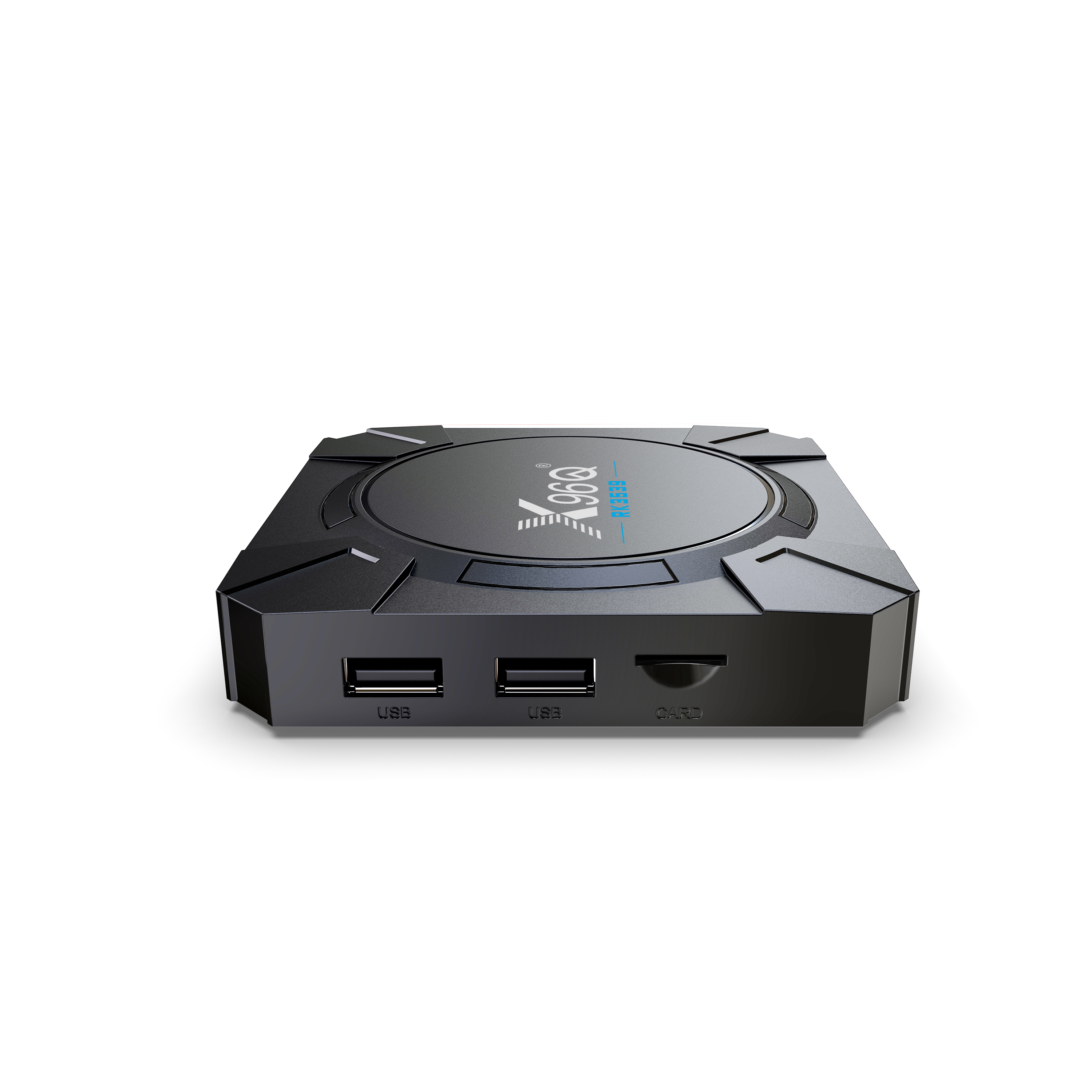

| USB port | Data | 1*USB2.0 Type-A | ||
| USB host | 1*USB2.0 Type-A | |||

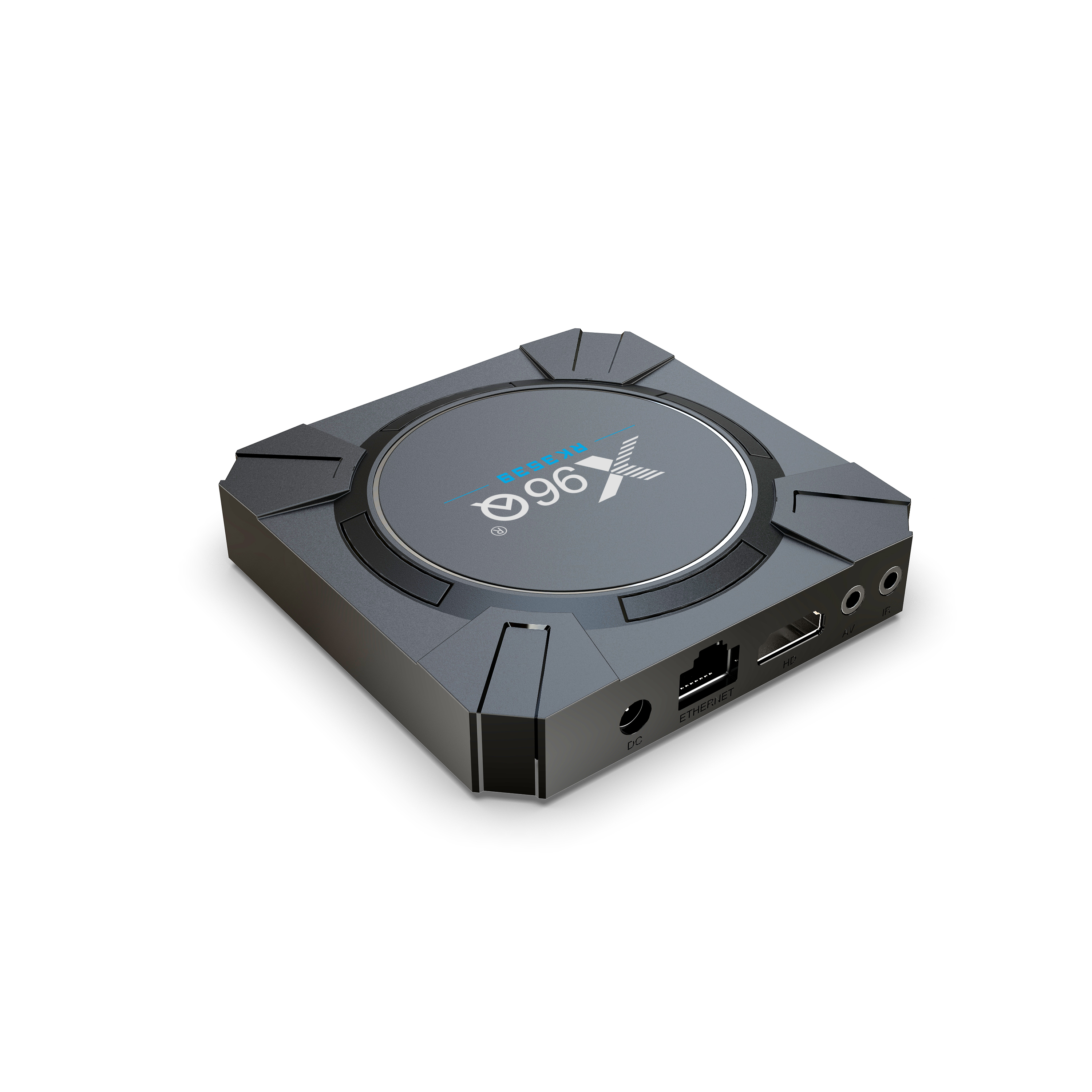

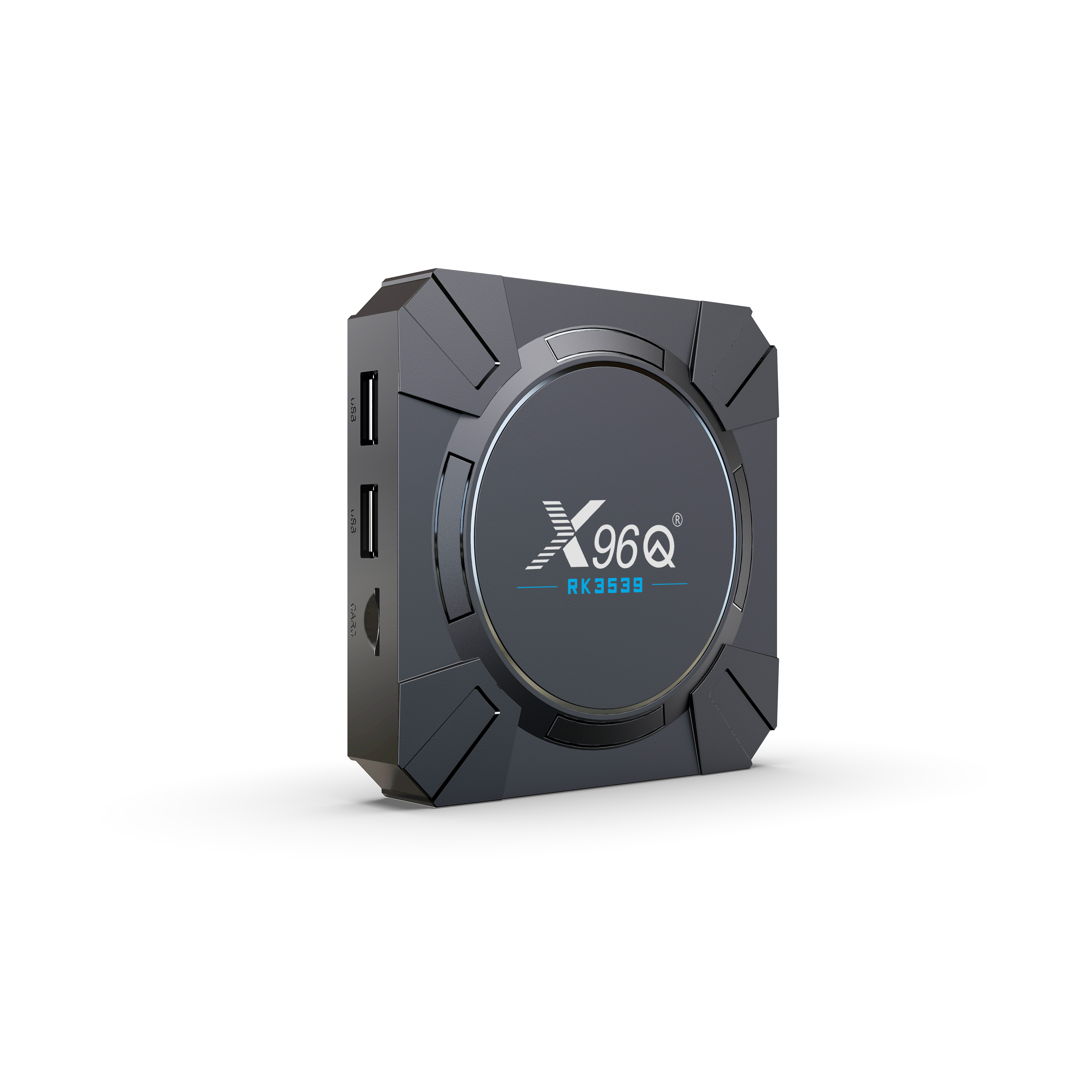

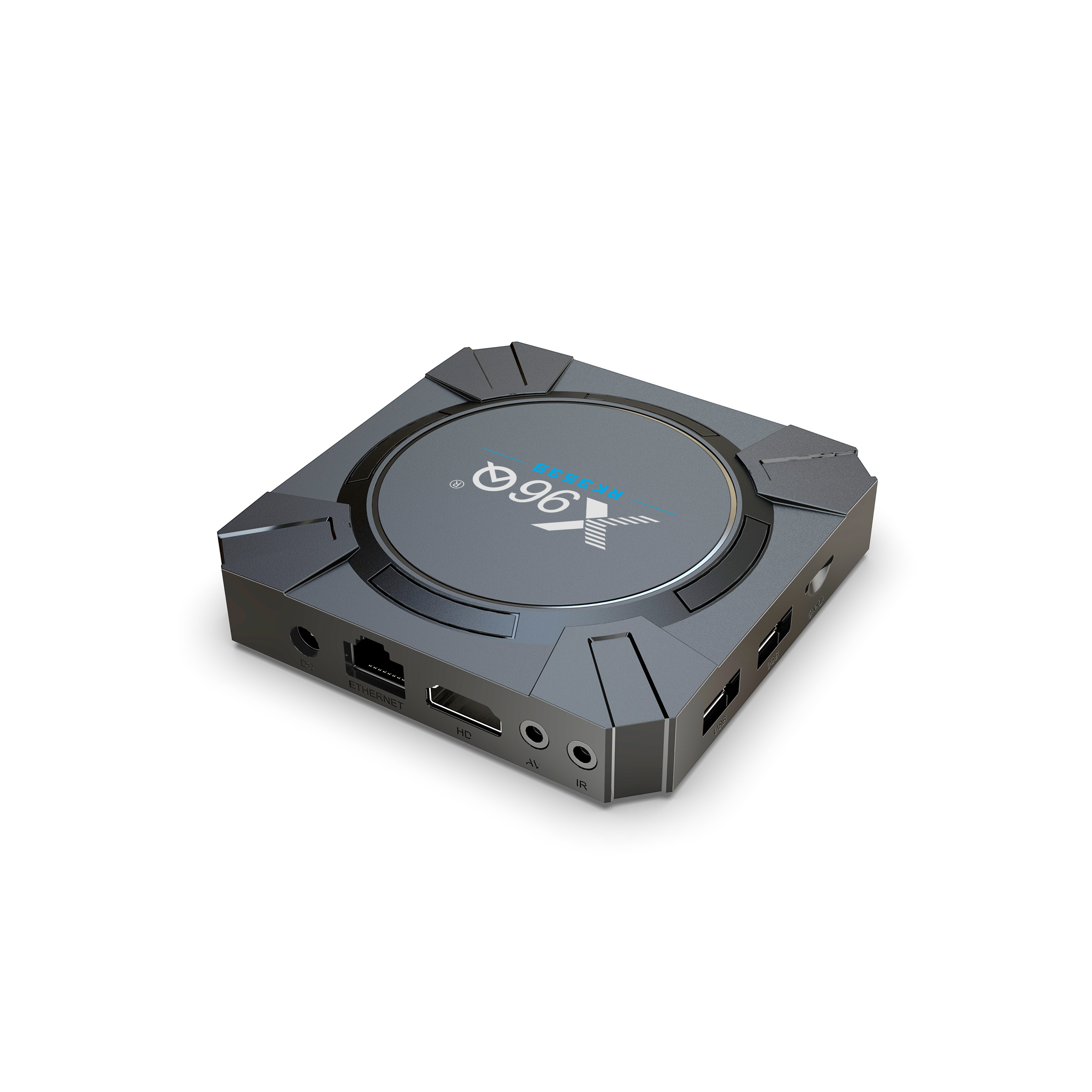

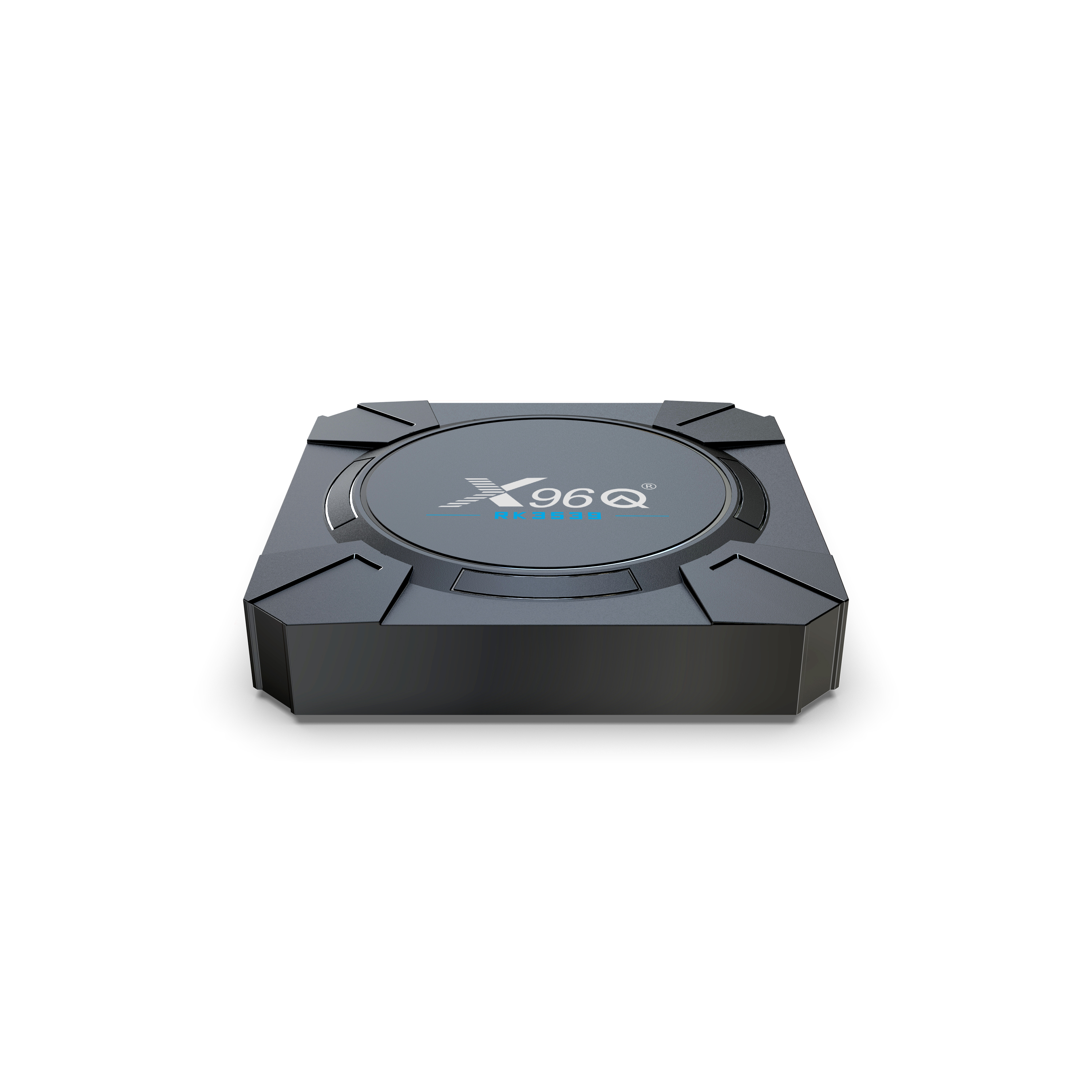

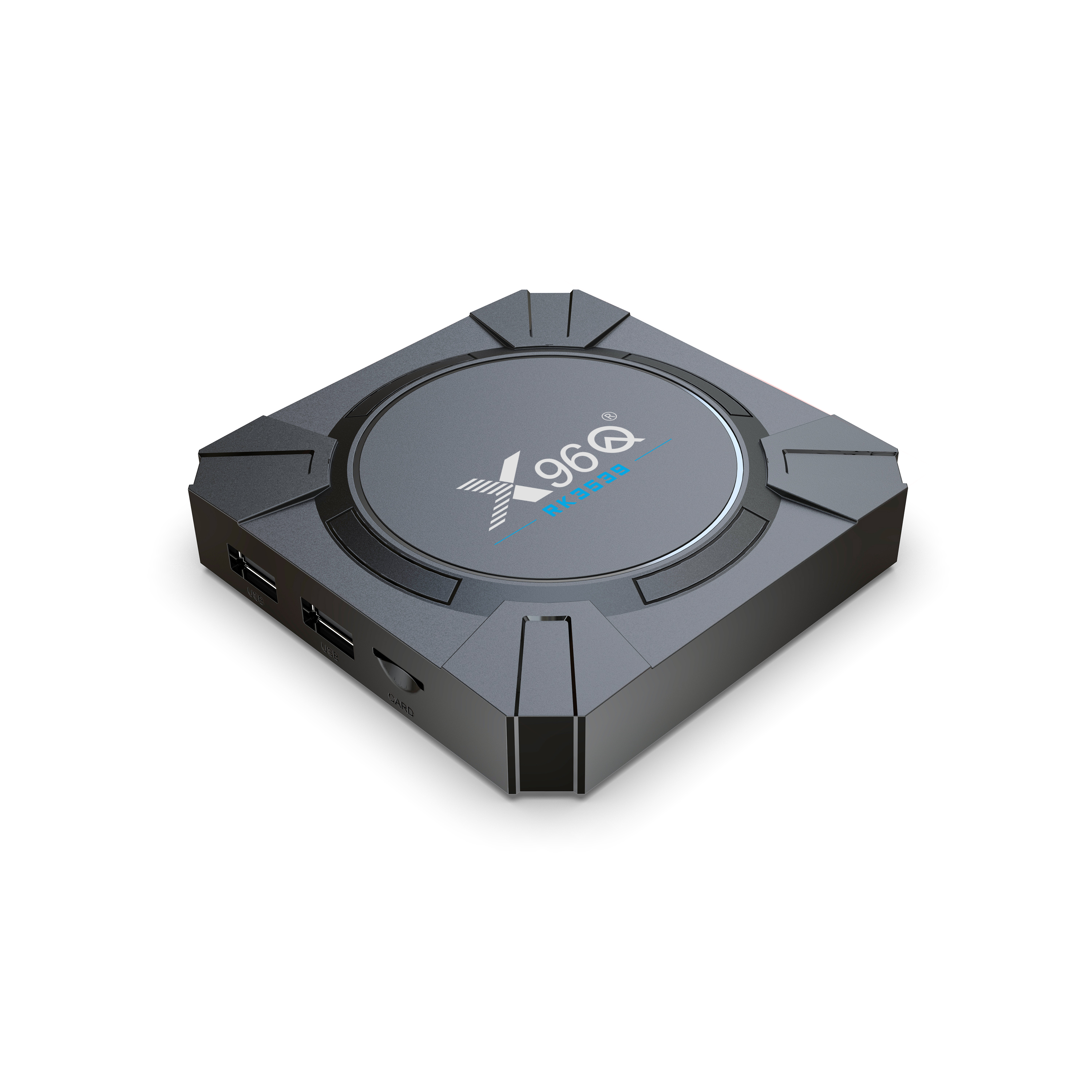

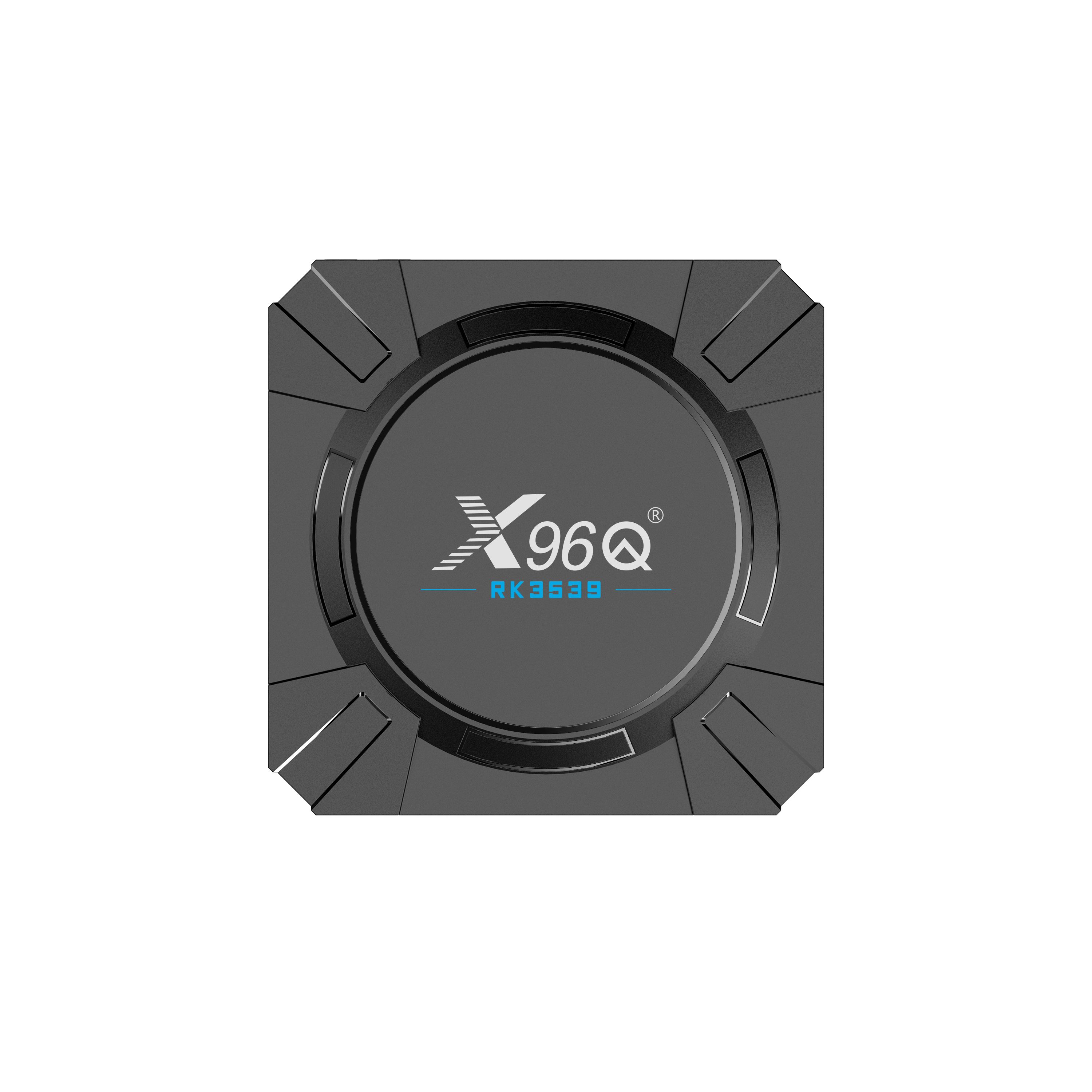

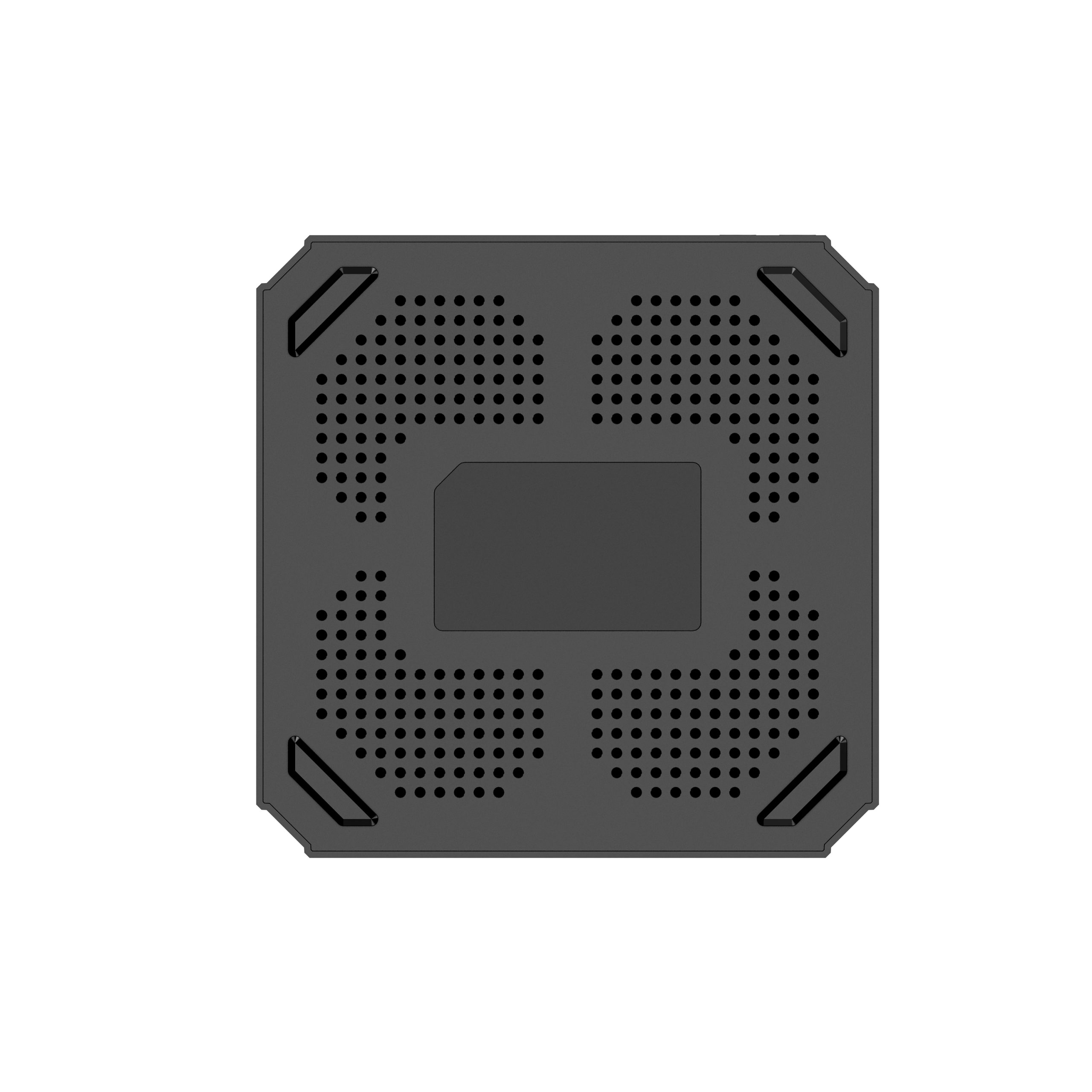

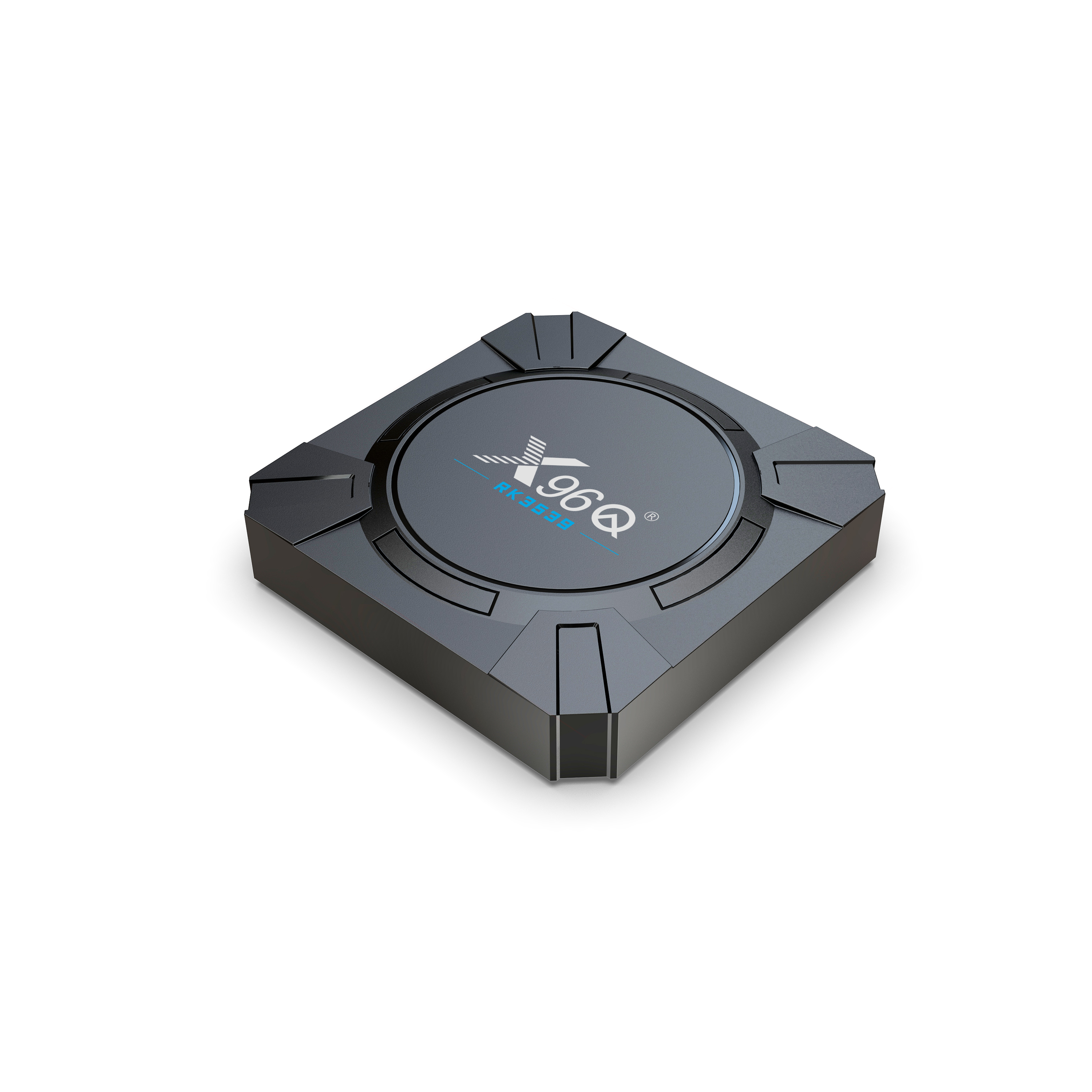

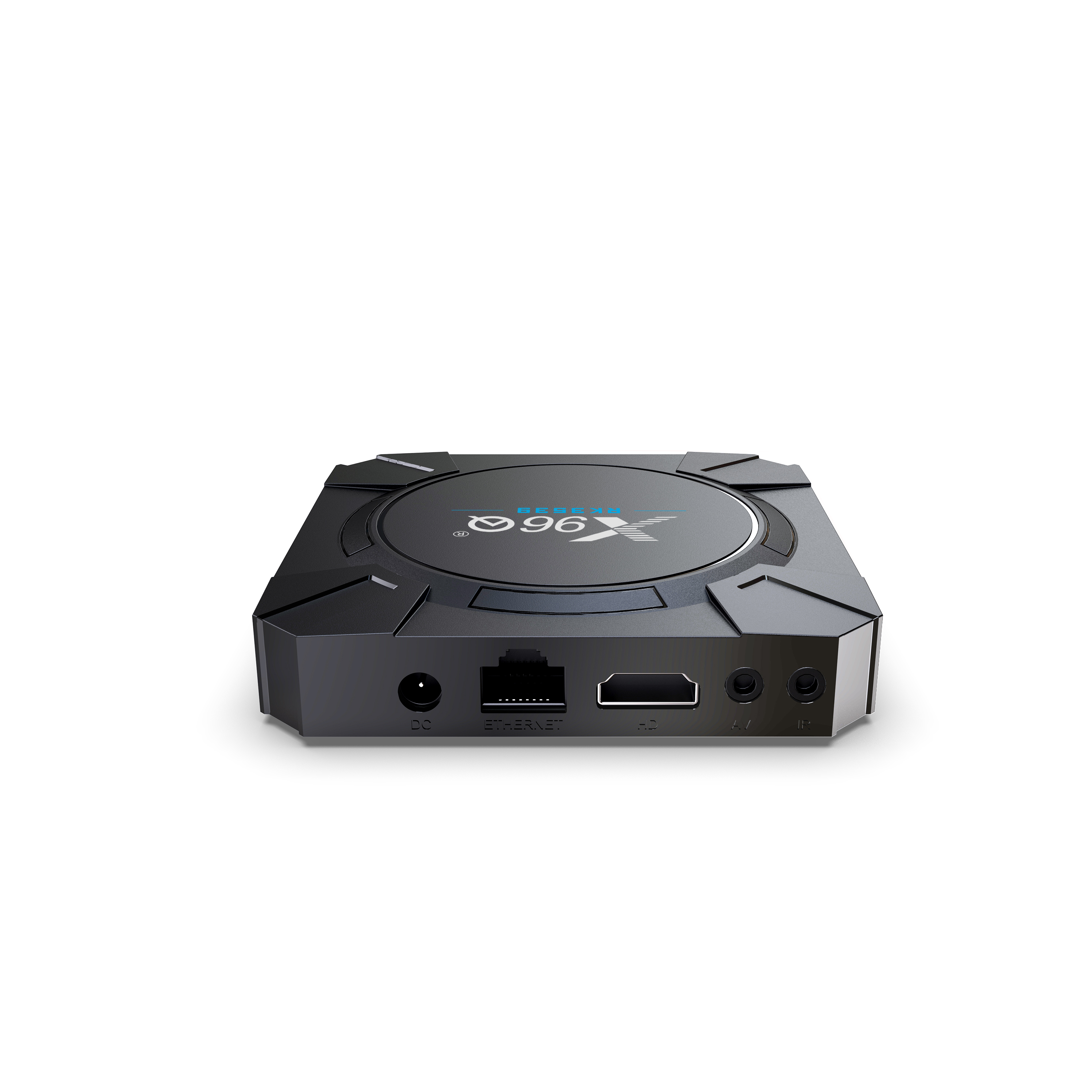

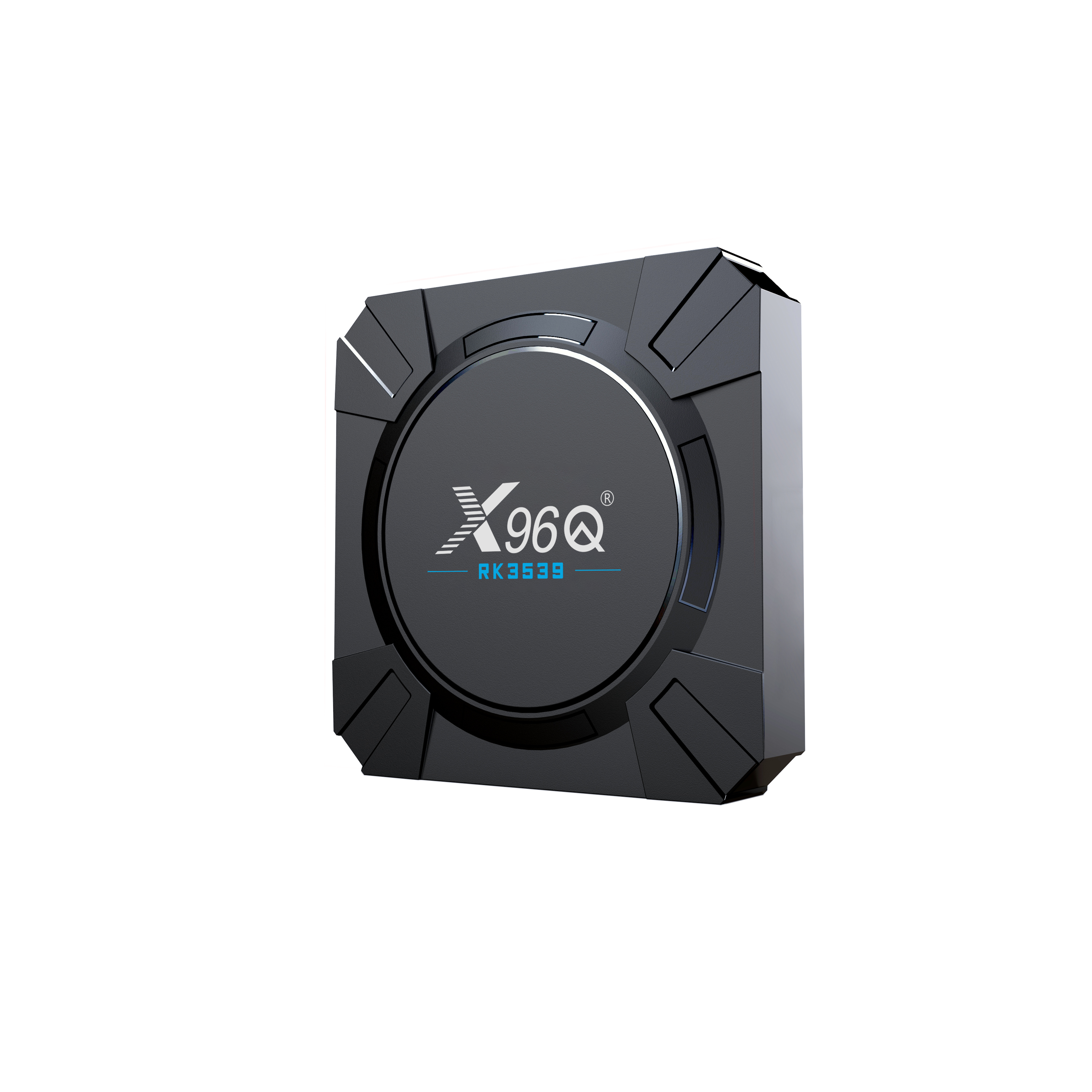

Product Pictures:
