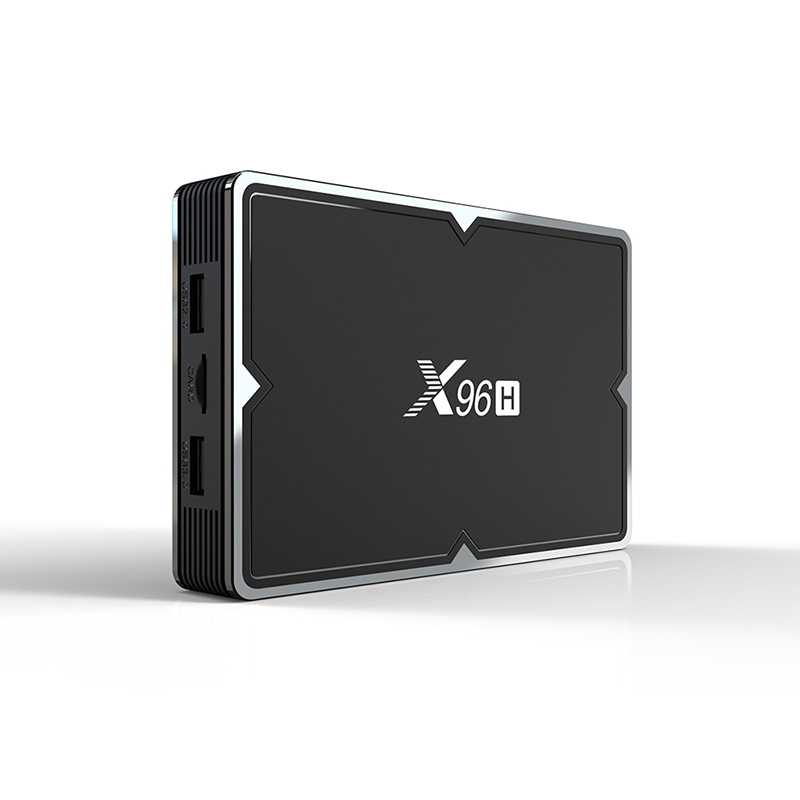

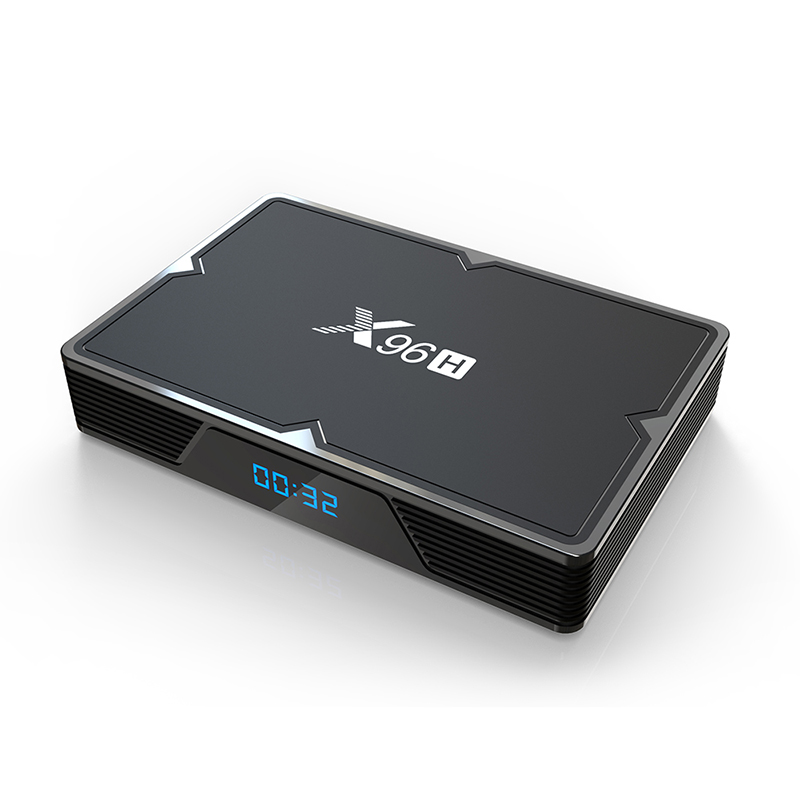

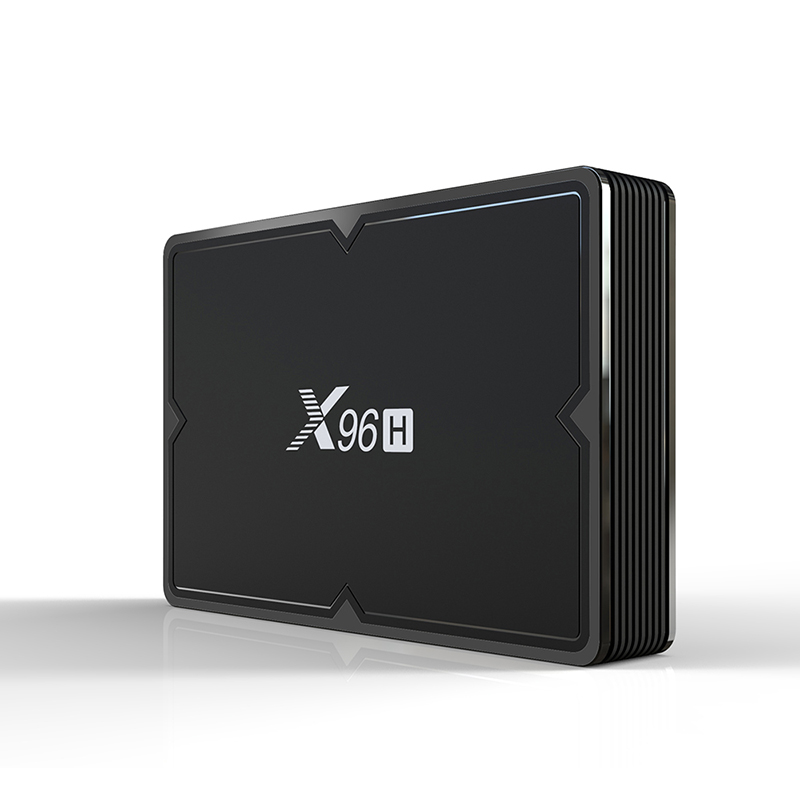

X96H TV Box with HDMI IN Smart Media Player 2GB RAM 16GB ROM

Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.
● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service
● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee

805 0
  • Description

X96H TV Box Main Features
● Supports HDR 6K image
● 2GB RAM + 16GB / 4GB RAM + 32GB / 4GB RAM + 64GB / optional large memory and expandable storage
● Android 9.0 operation system
● Allwinner H603 CPU, Quad-core 64-bit ARM CortexTM- A53
● Mali T720 GPU, High-performance multi-core GPU Mali T720
● 2.4G + 5G WiFi
● Supports H.265 decoding

X96H TV Box Specification

General Model: X96H
Type: TV Box
GPU: Mali-T720
System: Android 9.0
CPU: Allwinner H603
Core: Quad Core
RAM Type: DDR3
Media Supported Decoder Format: H.264, H.265, VP9/VP6/VP8
Audio format: MPEG-1, MPEG-2 (L1/L2/L3), MP3, AAC-LC, HE AAC V1/V2, APE, FLAC, OGG, AMR-NB, AMR-WB, G.711 (u/a) decoding • G.711(u/a), AMR-NB, AMR-WB, AAC-LC encoding • 3~5m far field sound acquisition, supports speech enhancement, acoustic echo cancellation and direction of speaker estimation. • Virtual surround sound
Video format: Allwinner Video Engine (AVE) with dedicated hardware decoders and encoders  Support multi-video decoder up to [email protected][email protected]  Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding  Video/Picture Decoding – H265/HEVC Main/Main10 [email protected] High-tier ;[email protected], up to [email protected] – H264/AVC BP/MP/[email protected], MVC, [email protected] – VP9, ​​Profile 0/2, [email protected] 30fps – VP6/VP8, [email protected] – MPEG1/MPEG2 [email protected], [email protected], [email protected] – MPEG4 [email protected] 0~3, [email protected] 0~5, GMC, short header format, [email protected] – AVS+/AVS JIZHUN [email protected] 6.0, [email protected] – VC-1 [email protected], [email protected], [email protected] 0~3, [email protected] – Supports Frame Buffer Compression(FBC) – Output pixel format configurable,YUV420/ YV12/NV12/… – Real-time image decoding- Maximum resolution up to 65536 x 65536 – Integrated JPEG hardware decoder – Configurable output pixel format- YUV420/YV12/NV12/…
Photo Format: HD JPEG, BMP, GIF, PNG, TIF
Support 5.1 Surround Sound Output: Yes
Product Details 5G WiFi: Yes
WIFI: 802.11 b/g/n/ac
Bluetooth: Bluetooth 4.1
Power Supply: Charge Adapter

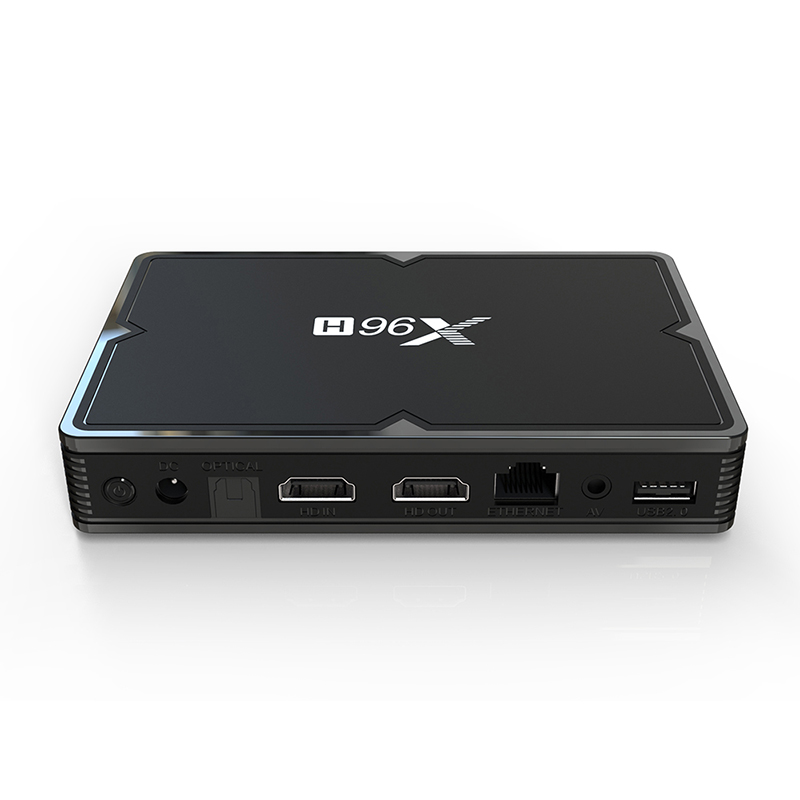

Interface: AV,DC 5V,Ethernet,HDTV In,HDTV Out,Optical,OTG,TF card,USB2.0,USB3.0
Language: Multi-language
HDMI Version: 2.0
Other Functions: DLNA,Others
HDMI Function: HDCP
Power Consumption.: 10W
RJ45 Port Speed: Support 10/100Mbps
Firmware Information System Bit: 64Bit
Power Requirement Power Type: External Power Adapter Mode
Power Input Vol: 5V
Power Adapter Input: 100-240V / 50-60Hz
Power Adapter Output: 5V 2A
Battery Information Remote Controller Battery: 2 x AAA Battery ( not included )
Dimensions and Weight Product weight: 0.1780 kg
Package weight: 0.4100 kg
Product size (L x W x H): 13.50 x 9.00 x 2.30 cm / 5.31 x 3.54 x 0.91 inches
Package size (L x W x H): 20.00 x 12.50 x 4.50 cm / 7.87 x 4.92 x 1.77 inches
Package Contents Package Contents: 1 x TV Box, 1 x HDMI Cable, 1 x IR Remote, 1 x English User Manual, 1 x Power Adapter

Inquiry Now

Product Name:X96H TV Box with HDMI IN Smart Media Player 2GB RAM 16GB ROM
