X96 max plus ultra Amlogic S905X4 8K Video Decoding 4gb 32gb smart tv box satellite receiver
Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.
● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service
● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee
90
0
- Description
x96 max plus ultra tv box specifications：
| X96 Max+ Ultra Amlogic S905X4 8K HD Video decoding Android 11 tv box | ||||
| CPU | Chipset Architecture | Amlogic S905X4 Quad Core ARM Cortex A55 | ||
| GPU | Chipset | ARM Mali-G31 MP2 OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 support | ||
| RAM ROM | Capacity | 4GB (2/4GB Optional) 64GB (16/32/64/128GB Optional) | ||
| External storage | USB2.0, USB3.0 Support USB Storage Devices Micro SD card Supported | |||
| Software | ||||
| Operating system | OS Version | Android 11 | ||
| Language | Multi-Language | |||
| Multimedia | Video | Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4x1080P@60fps |
||
| Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding | ||||
| Video/Picture Decoding | ||||
| VP9 Profile-2 up to 8Kx4K@24 fps | ||||
| H.265 HEVC MP-10 L5.1 up to 8Kx4K@24 fps | ||||
| AVS2-P2 Profile up to 8Kx4K 24 fps | ||||
| MPEG-4 ASP L5 up to 1080P@60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
| AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | ||||
| MPEG-2 MP/HL up to 1080P 60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172 | ||||
| RealVideo 8/9/10 up to 1080P@60fps | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918 | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | ||||
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG,BMP,GIF,PNG,TIF | |||
| Network service | ||||
| Wi-Fi | Frequency Type | Support 2.4G and 5G WiFi IEEE 802.11 b / g / n / ac | ||
| Antenna Type | Two external antennas | |||
| BT | BT | Support BT4.X | ||

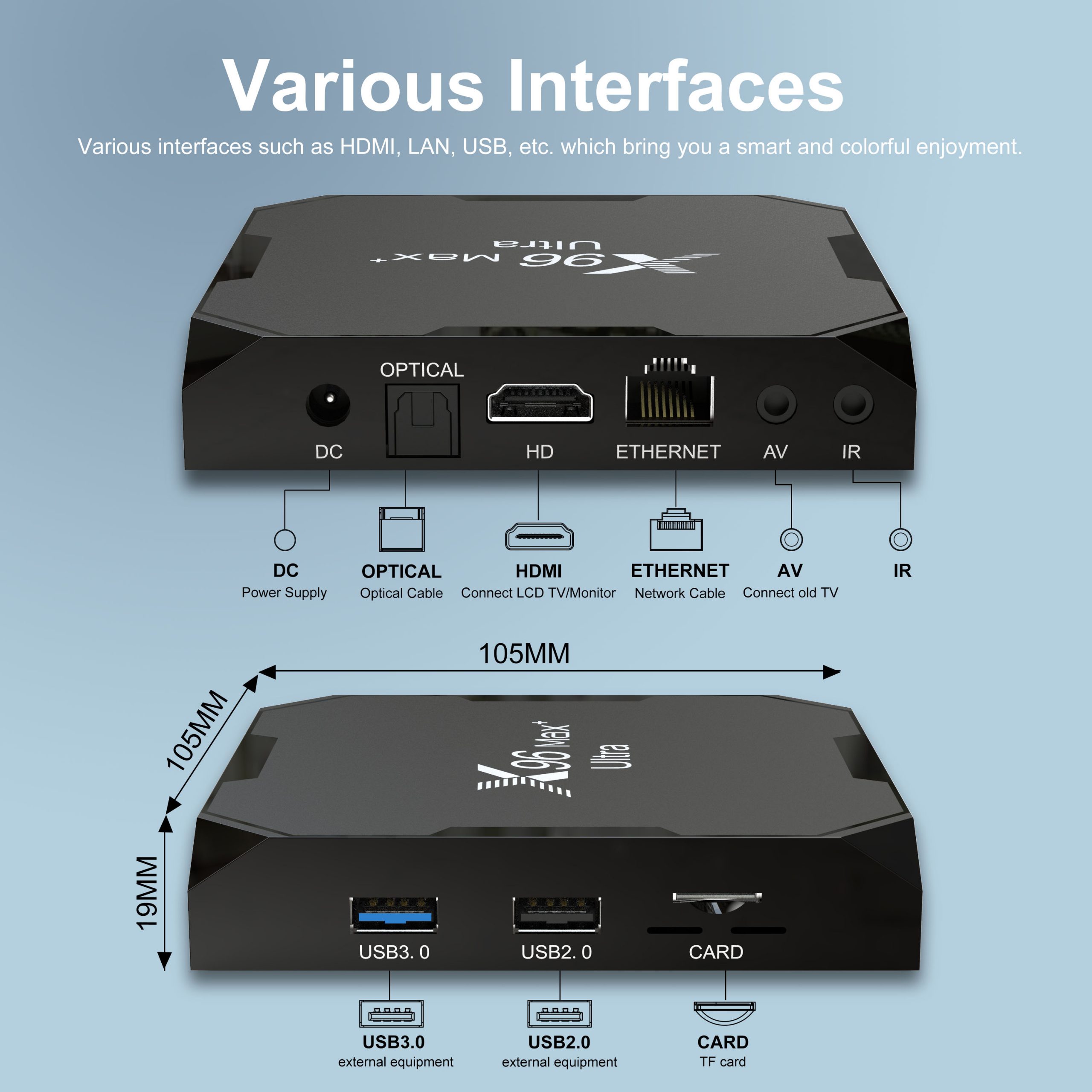

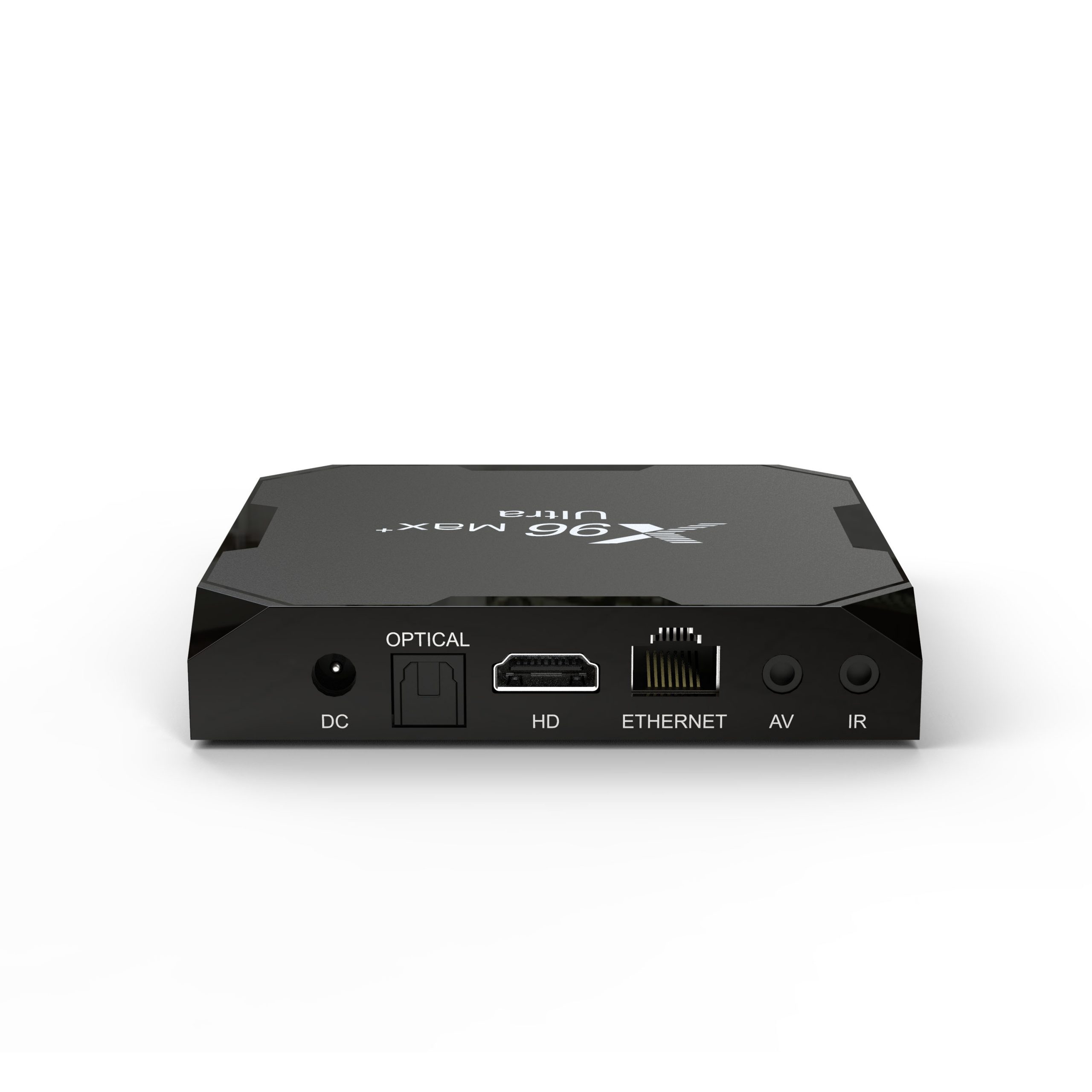

| Interface | ||||
| Charge | DC connector | DC IN(5V/2A) | ||
| Video output | HD | 4K*2K UHD Output, HD 1.4/2.0 | ||
| IR Reciver | 3.5mm Earphone jack | Remote Reciver Connect | ||
| Micro SD | External memory | Support | ||

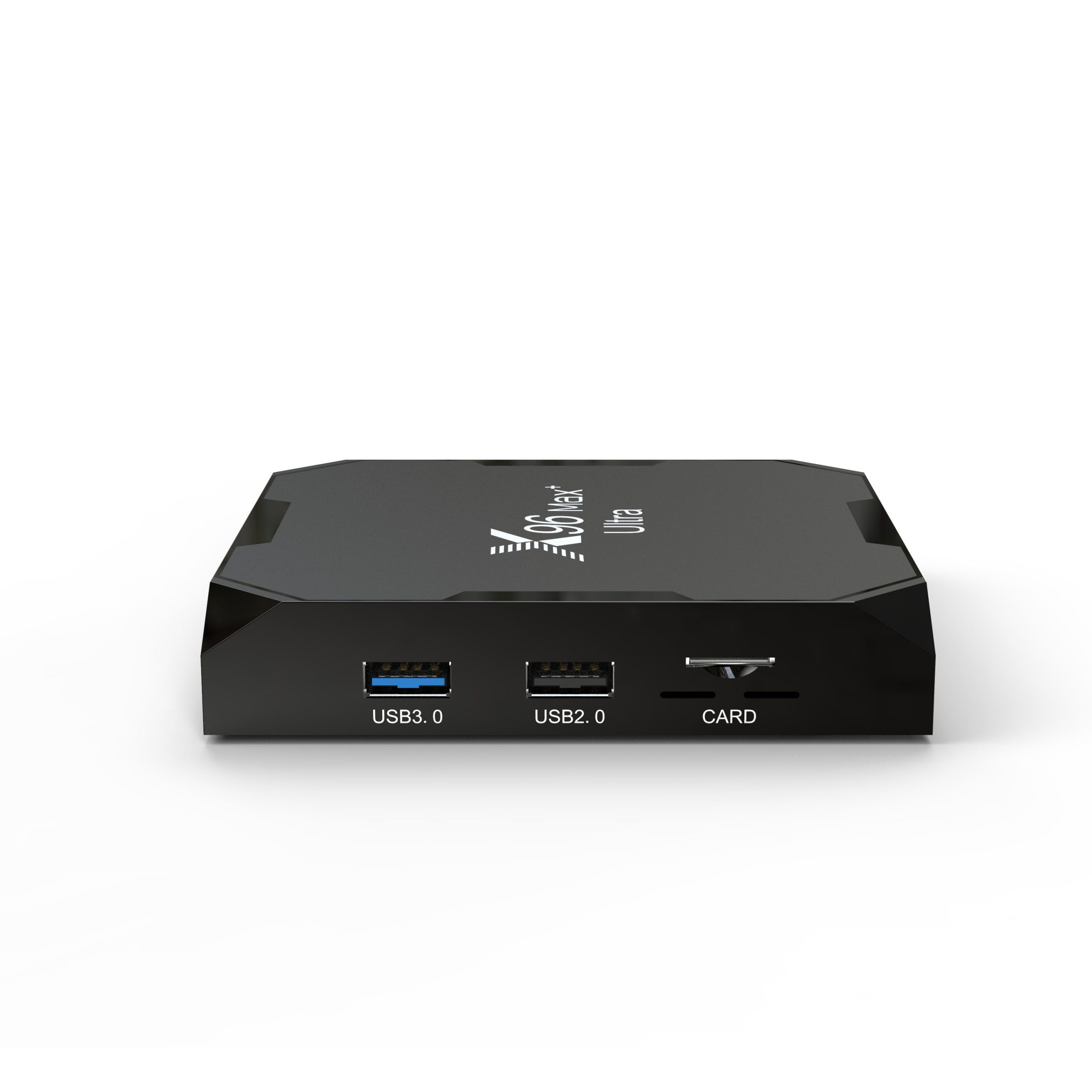

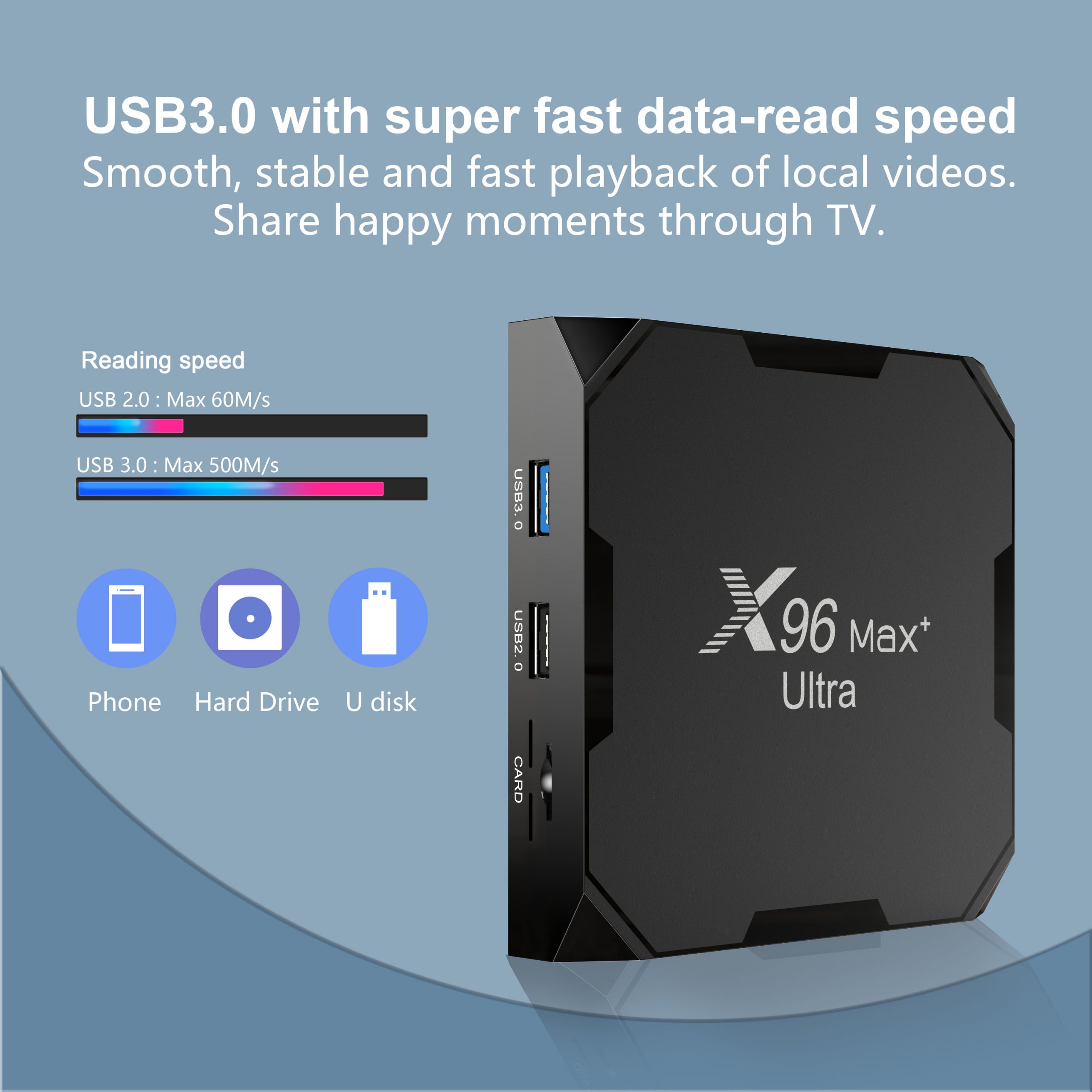

| USB port | USB host | 1*USB3.0 1*USB2.0 normal type | ||
| Ethernet | Ethernet | 100M Ethernet | ||
| Appearance | ||||
| Body Material | Plastic | |||
| Color | Black | |||
| Size | 105x105x19(mm) | |||
| Weight | 0.137Kg | |||
| Cerifications(For Unit) | ||||
| Standard | CE, RoHS | |||

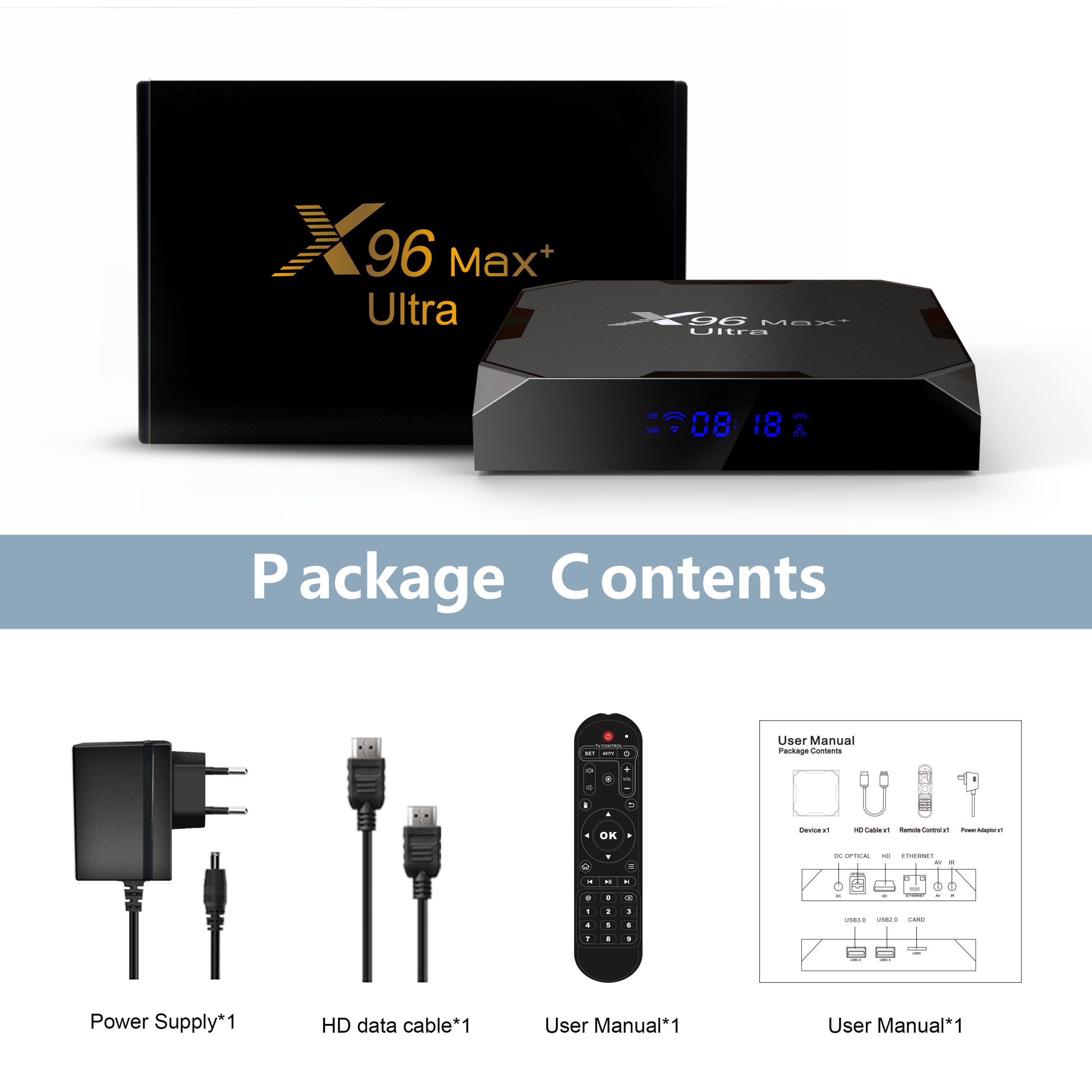

| Package contents | Shipping Info | |||
| User manual | *1 | Gift Box Dimension(mm) | 205x140x50mm | |
| Gift Box | *1 | Carton Size(mm) | 420x270x305mm | |
| Remote control | *1 | Qty Per Carton(pcs) | 20PCS | |
| HD external cable | *1 | Gift Box.G.W(gs) | 0.394Kg | |
| Power adapter | *1 | Export carton (G.W.)(kgs) | 8.8Kg | |

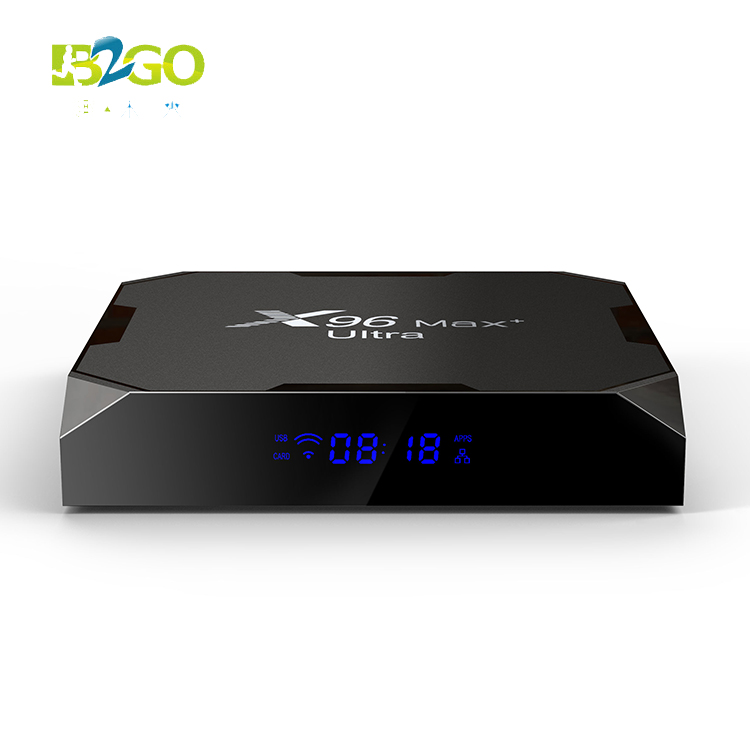

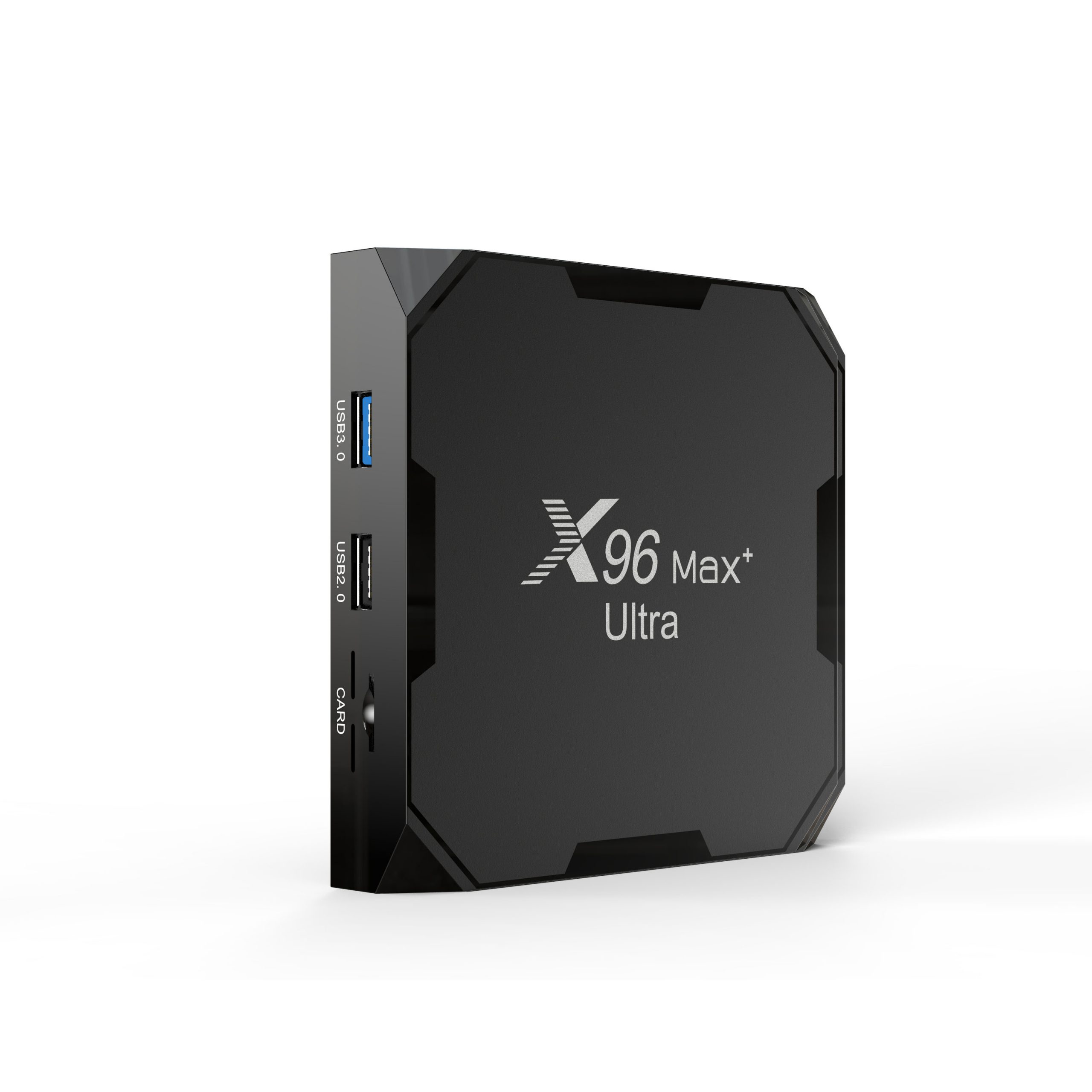

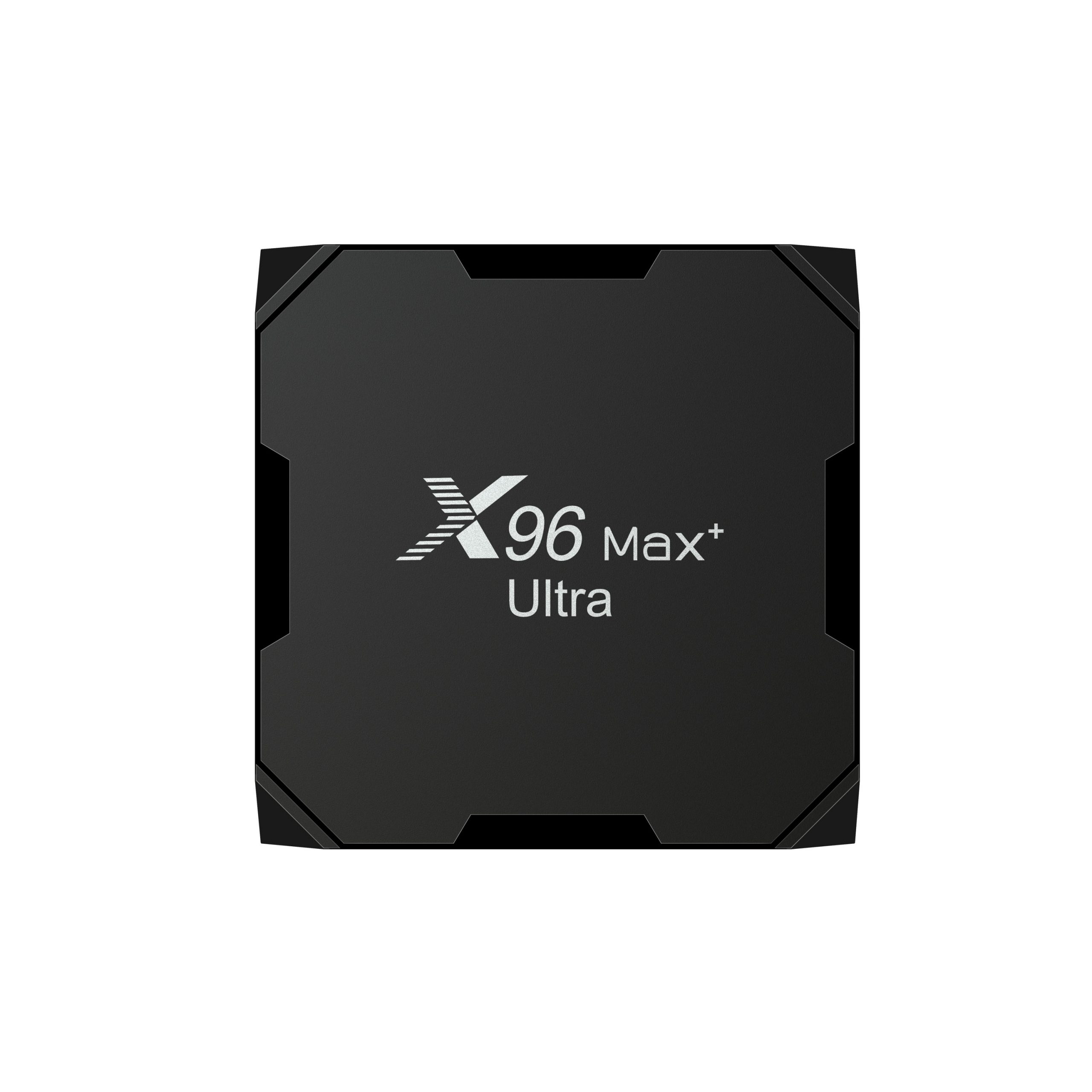

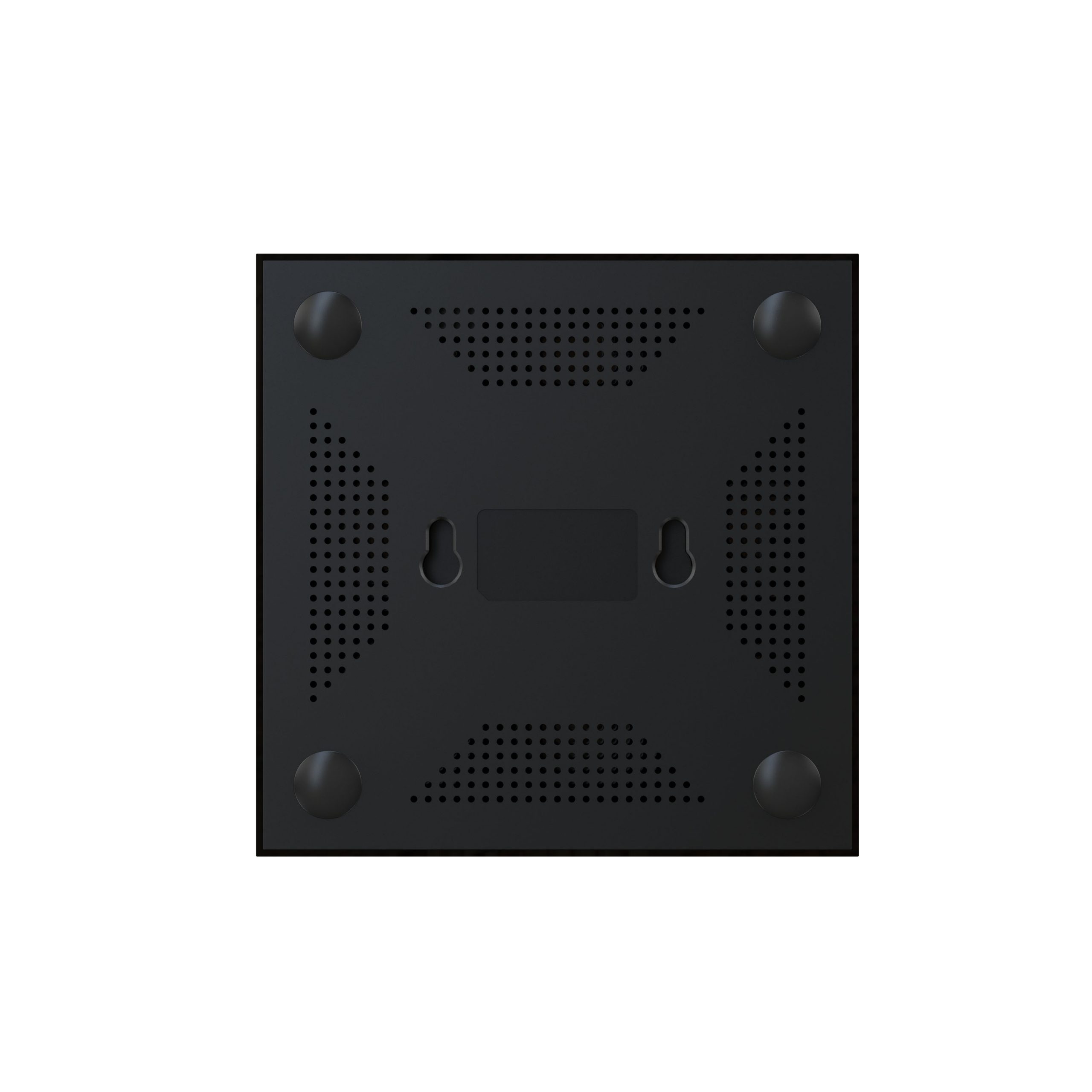

x96 max plus ultra tv box pictures:
