Tanix TX5 Max Amlogic S905X5 Android TV Box Android 14 Streaming Device
Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.
● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service
● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee
12
0
- Description
Tanix TX5 Max TV Box Specifications:
| Spec | ||||
| SoC | Amlogic S905X5 | |||
| CPU | Quad Core ARM Cortex-A55 CPU | |||
| GPU | ARM G310 V5 GPU | |||
| DRAM | 2GB/4GB LPDDR4 | |||
| FLASH | eMMC 16G/32G/64G | |||
| OS | Android 14.0 | |||
| Network | RJ45 Interface 10M/100M/1000M Adaptive | |||
| Wifi | 802.11 a/b/g/n/ac/ax; 2.4G/5G WiFi 6 | |||
| Interface | ||||
| Video Output | HDMI 2.1b(4K60), AV | |||
| Antenna | Buildin Wi-Fi antenna | |||
| Peripheral Interface | USB3.0x1, USB2.0x1 | |||
| Card Reader | TF Card Reader | |||
| Power Interface | Type-C Power Delivery | |||
| Other Interface | BT Receiver, LED Indicator | |||
| SPDIF | Yes | |||
| Power Indicator | Power On：Blue | |||
| Media Parameter | ||||
| Video/Picture CODEC | Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders Supports multi-video decoder up to 4x1080P@60fps Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding Video/Picture Decoding -AV1 MP-10@L5.1 up to 4Kx2K@60fps -VP9 Profile-2 up to 4Kx2K@60fps -H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps -AVS2-P2 Profile up to 4Kx2K@60fps -H.264 AVC HP@L5.1 up to 4Kx2K@30fps -MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) -WMV/VC-1 SP/MP/AP up to 1080P@60fps -AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps -MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) -MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) -Multiple language and multiple format sub-title video support -MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) -Supports —JPEG thumbnail, scaling, rotation and transition effec |
|||
| Video/Picture encoding | H.264 video encoding up to 1080@30fps and 720@60fps with low latency | |||
| Audio Decoder | Supports MP3, AAC, WMA, RM, FLAC and programmable with 7.1/5.1 down-mixing -Low-power VAD -Built-in serial digital audio IEC958 input/output, SPDIF input/output and PCM input/output, SPDIF supports 192KHz 16/24/32bit stereo -Supports TDMIN_A (1 lane), TDMIN_B (4 lanes), TDMIN_C (4 lanes), TDMOUT_A (2 lanes), TDMOUT_B (4 lanes), TDMOUT_C (1 lane), SPDIF_IN (1 lane), SPDIF_OUT (1 lane).Each data lane supports 2 channels in I2S mode, or 2–32 channels in TDM mode -Digital microphone PDM input with programmable CIC, LPF, HPF, support up to 4 DMICs -Built-in stereo audio DAC -Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S +PCM |
|||
| Software Extension | Support Google Play & APK install | |||
| DLNA, Miracast Protocol | Support DLNA, Miracast Protocol | |||
| IM Software | Support for Skype, WhatsApp, Telegram, WeChat (depends on APK), etc. | |||
| Office Software | Support for Microsoft Office, Google Workspace, MyOffice, ONLYOFFICE, etc. | |||
| Languages | English, French, German, Spanish, Italian, Russian, Portuguese, etc. (24 languages) | |||

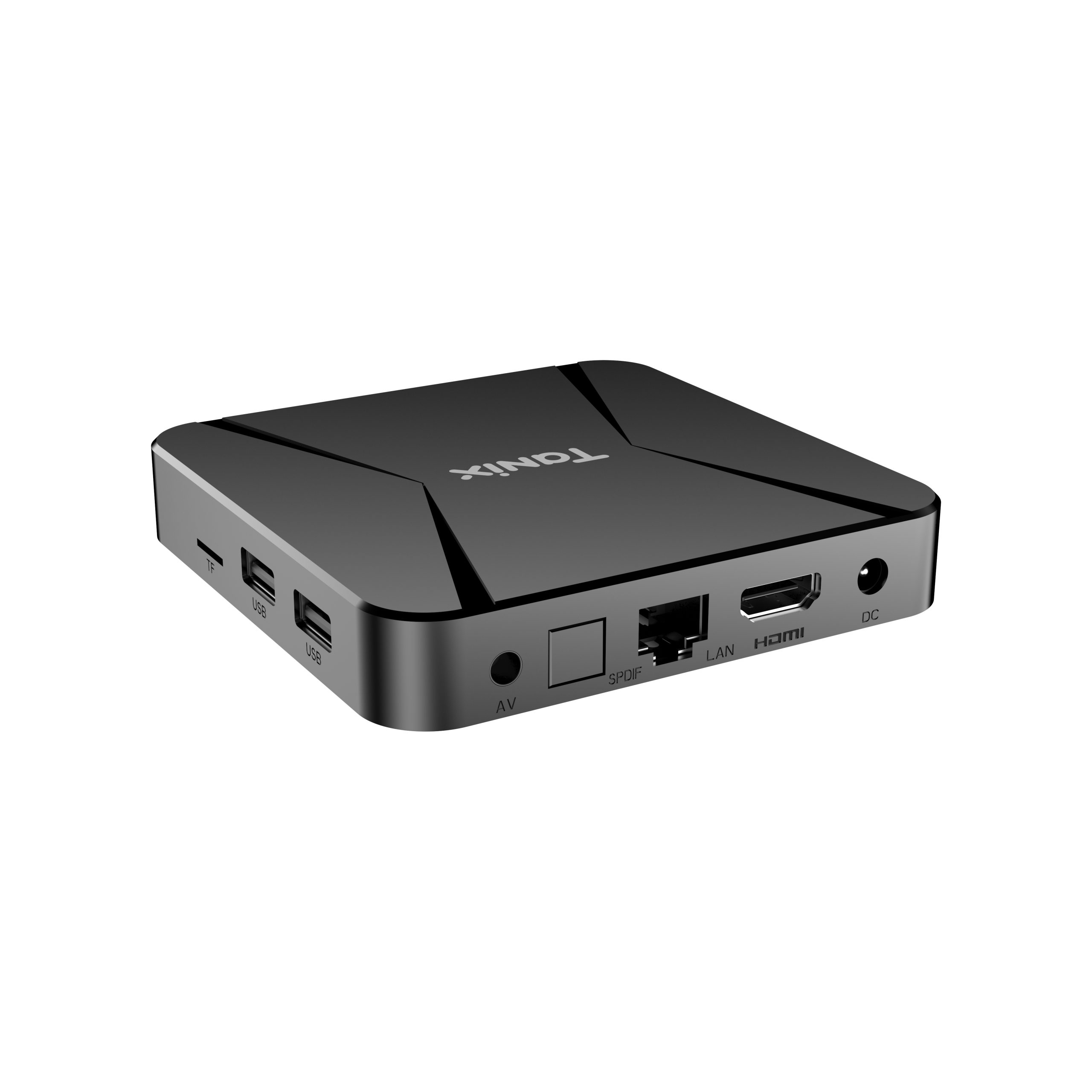

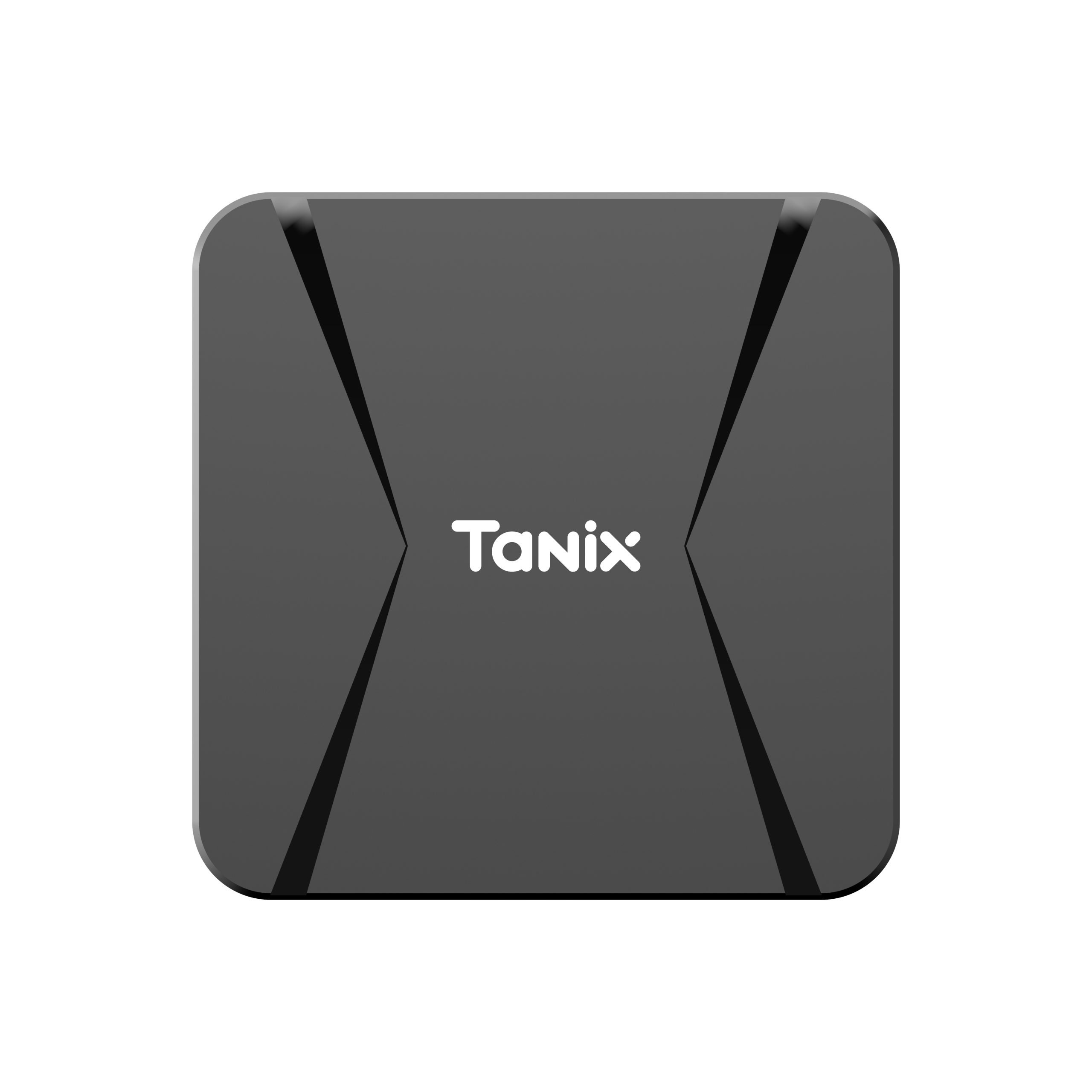

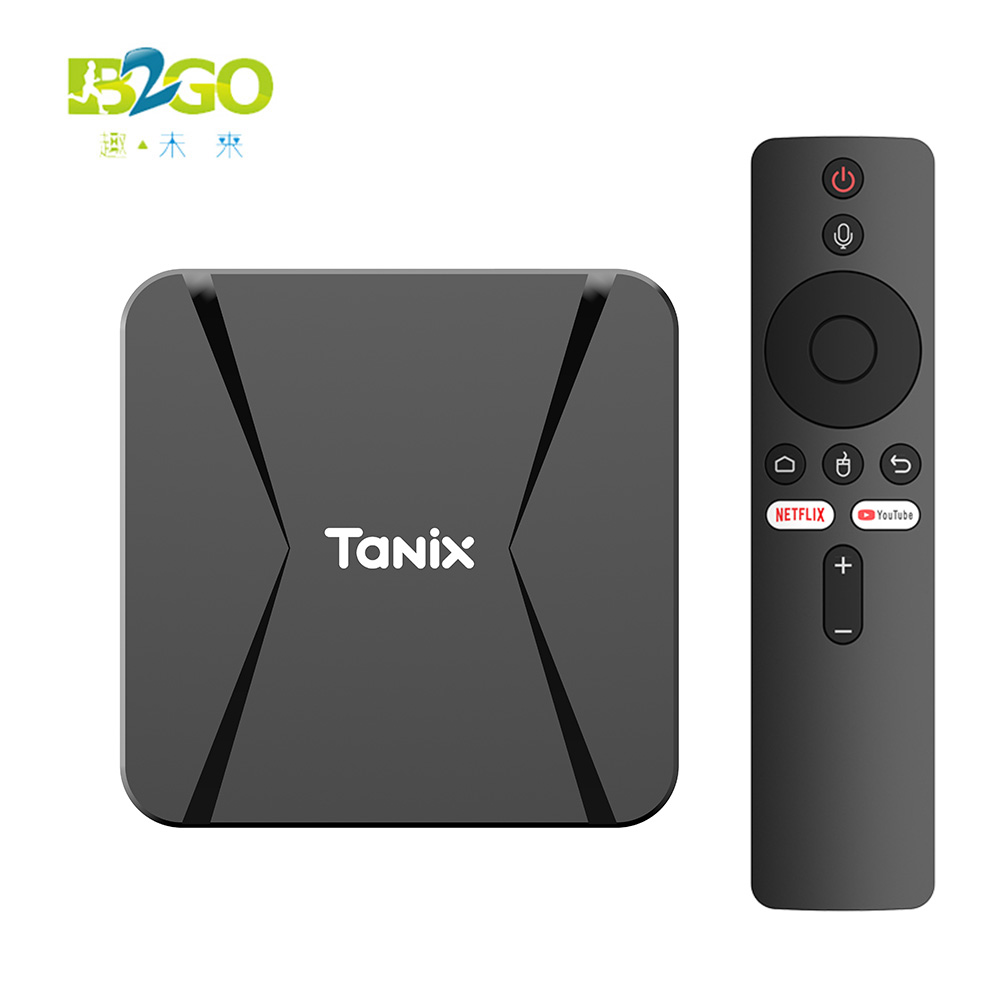

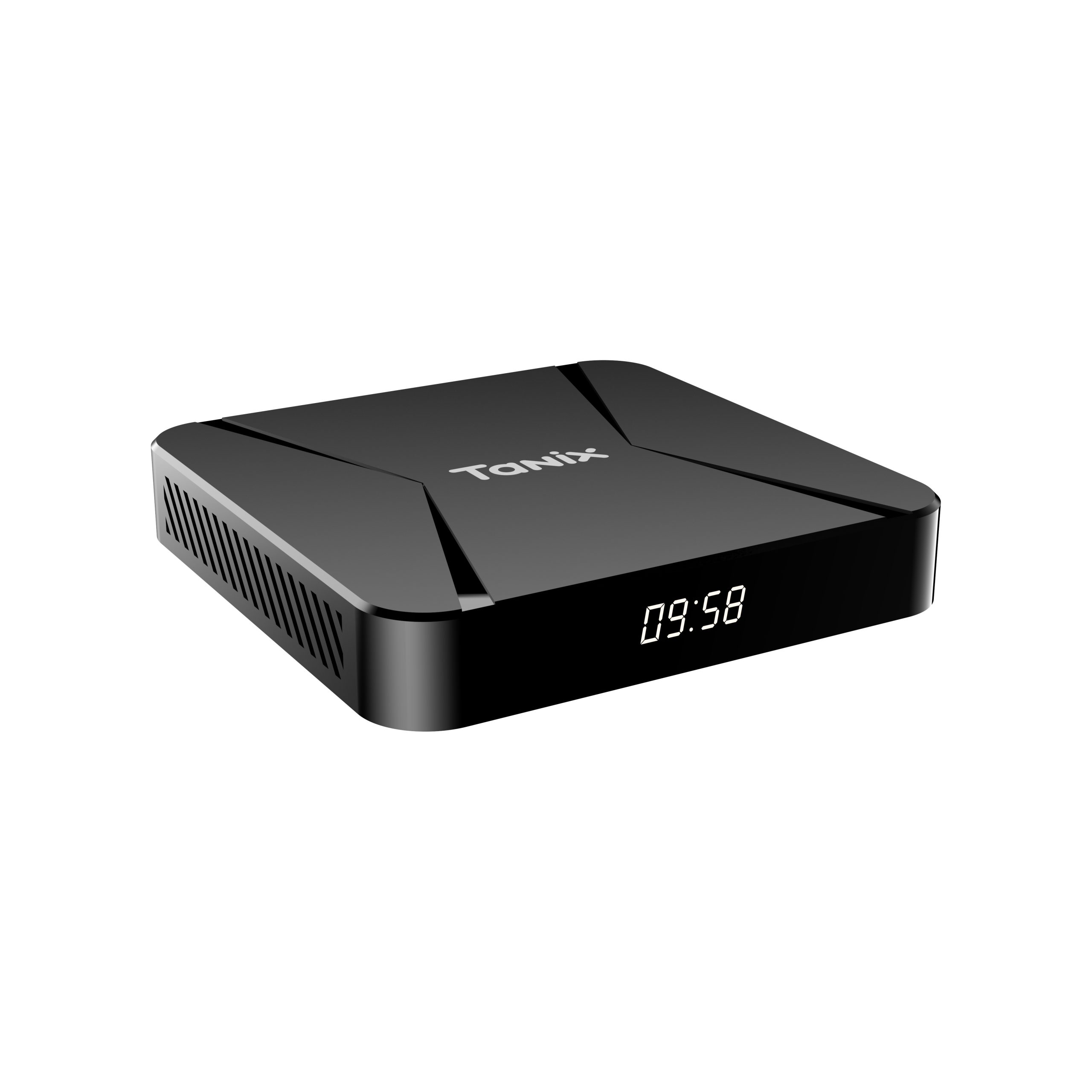

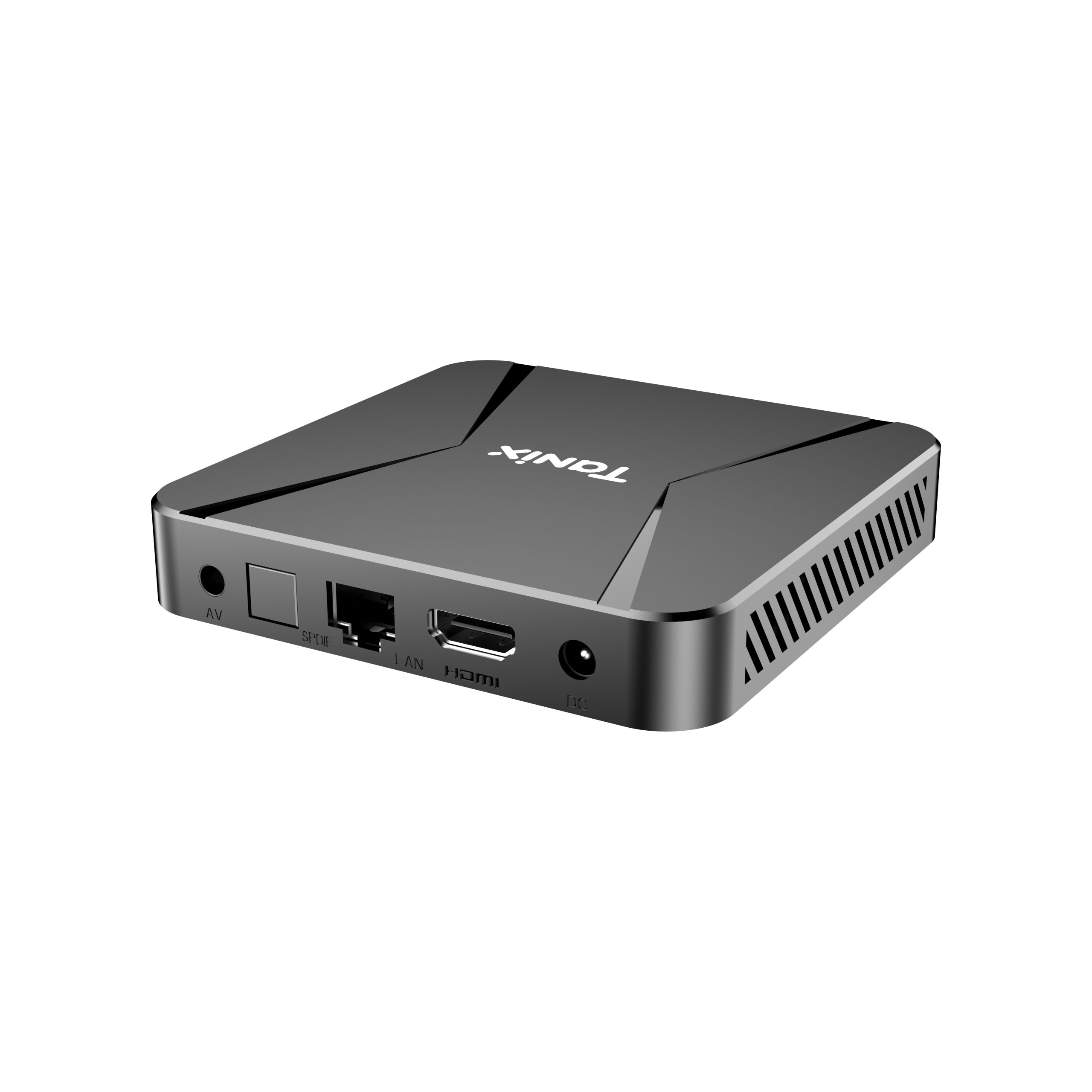

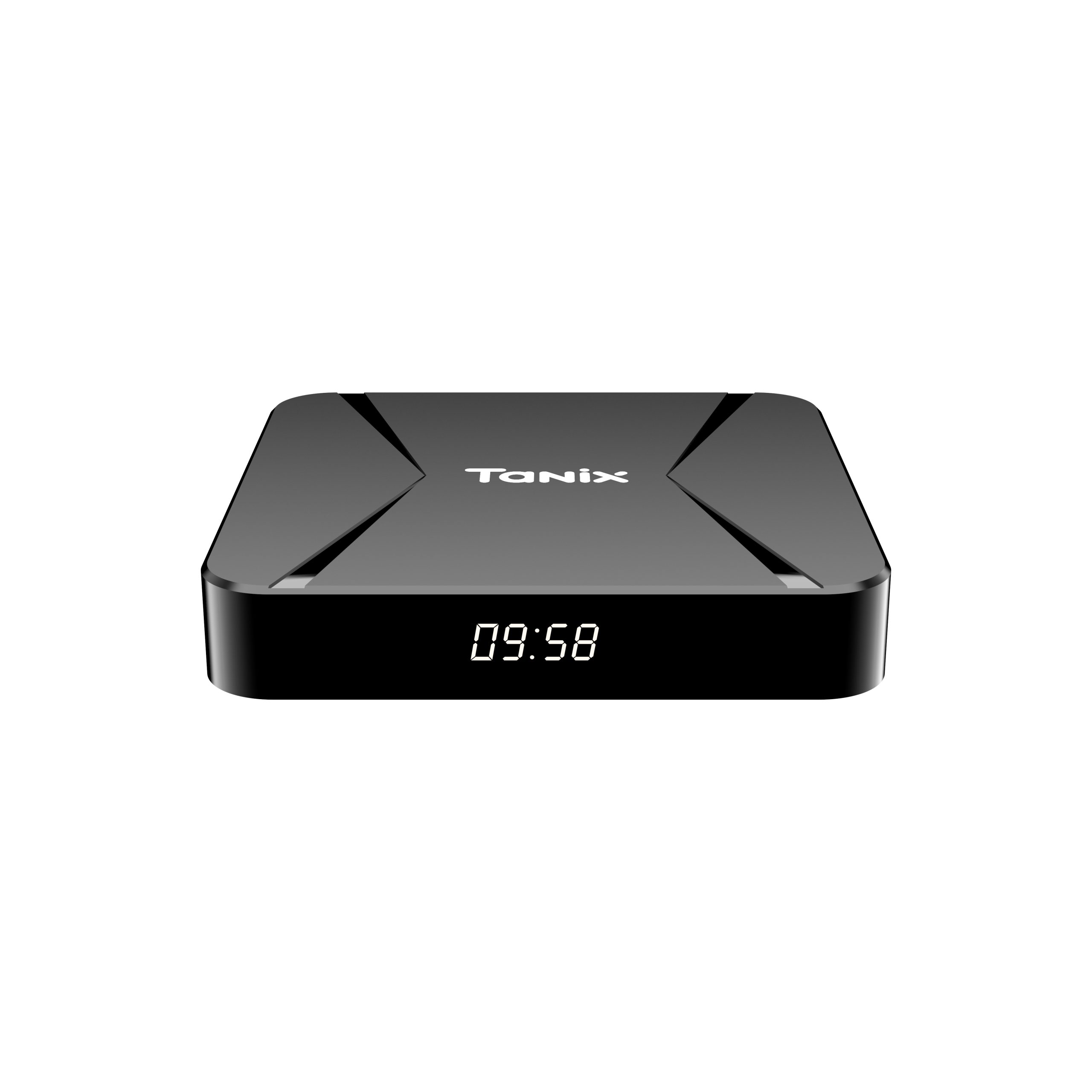

Tanix TX5 Max TV Box Pictures:
