Android 10.0 TV Box Decoder Dvb t2 with Netflix 1080p Youtube 4K Hybird Dvb-T2 Set Top Box

Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.
● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service
● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee

GET PRICE
119 10
  • Description

Hybird Dvb-T2 Set Top Box Specifications:

Product Description
Quad Core HD TV Box support DVB T2
Android base TV system
IPTV, VOD, KODI, Youtube, Redtube
H.264 1080p Video encoding
H.264/H.265 decoding up to 4K×[email protected]
Basic parameters
System SoC: Allwinner RP-T507B
CPU: ARM Quad Cortex-A7 up to 1.2GHz
GPU: Mali-400MP2
DRAM: DDR3 2GB(4GB Optional)
Flash: EMMC 16GB(32GB Optional)
OS:  Android 10.0
Network RJ45 Interface 10M/100M adaptive
Build in Wi-Fi 2.4GHz 802.11 b/g/n(2.4GHz, 5GHz, BT Optional )
Tuner Tuner+DEMO: M88RS600B
Frequency Range: 950~2150MHZ
Input Level: -65~-25dBm
Input impedance: 75Ω
I/O
RF RF IN
Video Output HDMI, AV
Network RJ45, Buildin Wi-Fi antenna
Peripheral Interface USB2.0 x2
Power Interface DC 12V
Other Interface Front panel: IR receiver, LED indicator
Media
Video Decoder:
H.265 decoding up to 4K×[email protected]
H.264 [email protected] up to 4K×[email protected]
SVC, MVC, VC-1/WMV, AVS, WebM, RMVB, MPEG1/2/4, MJPEG, H.263, DivX 3/4/5, Xvid, Real Video, VP6/8
Format:
MKV, TS, M2TS, MOV, MP4, RM, RMVB, AVI, MPG, MPEG, DAT, VOB, FLV etc.
Audio Decoder:
MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, Real Audio(AC-3 Optional )
Format:
MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc.
Subtitle Format SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation
Photo Format HD JPEG/BMP/GIF/PNG/TIFF
Features
Digital  TV Fully compliant with HD DVB-S2/DVB-S, 7 days EPG, USB PVR, Timeshift, Program playback, Timing playing
CAS Conax CA (Optional), Patch, BISS, CCCAM, NEWCAM, GSCAM, MGCAM
4K H.264/H.265 decoding up to [email protected], Support 4Kx2K max resolution output
Network Streaming HTML5, RTSP, HLS, Smooth streaming
Multi-screen interactive Miracast, DLNA and Airplay
System Upgrading Upgrading via USB disk or internet
Local Media Playback Video/Audio/Picture
External Storage USB storage max to 32GB (FAT32/NTFS)
Games Android 2D/3D games
APP KODI(XBMC),Facebook, YouTube, Skype, Google play etc.
Other parameters
Input Voltage DC IN 12V/1A
Power Consumption 6W Max
Operation Temperature 0~40℃, Humidity<95%
Physical characteristics Size: 139mm*85mm*28mm
Weight: 326g
Material: plastic
Proposed Accessory Remote control , User manual, Power adapter, AV cable(Optional), HDMI cable

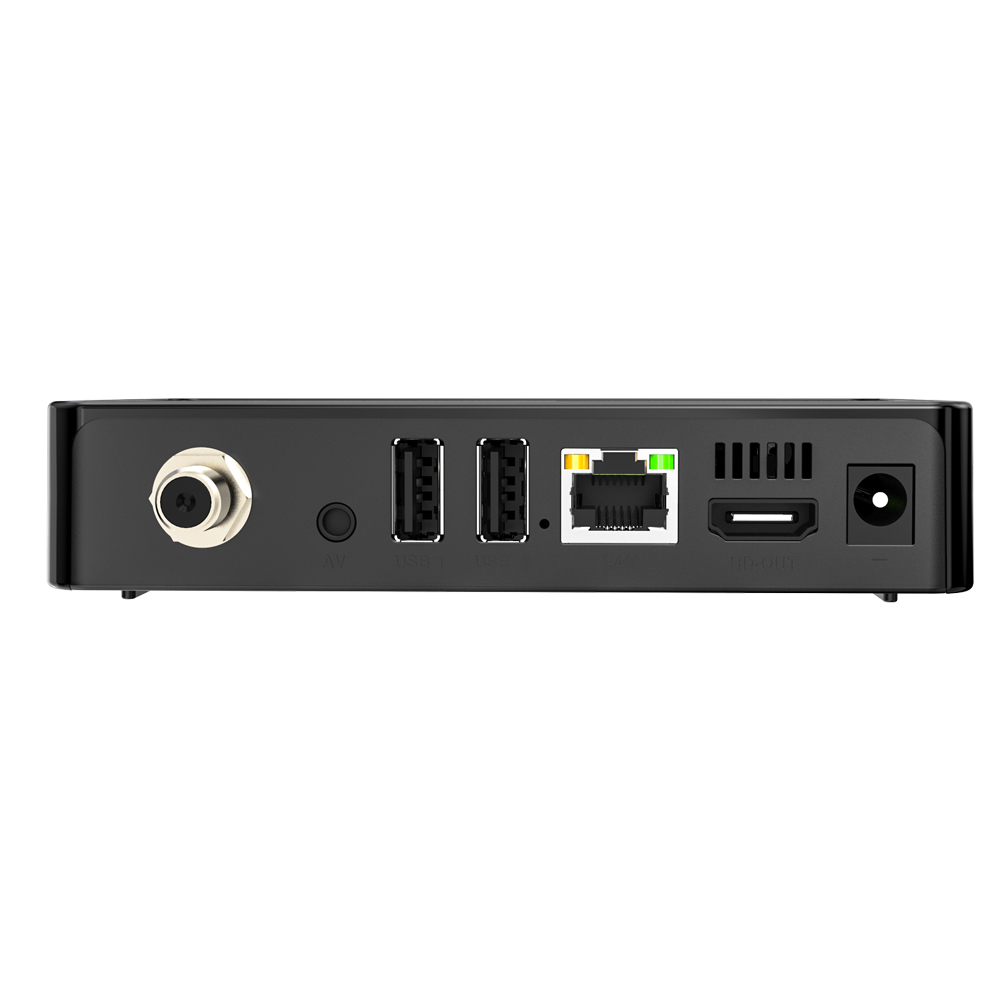

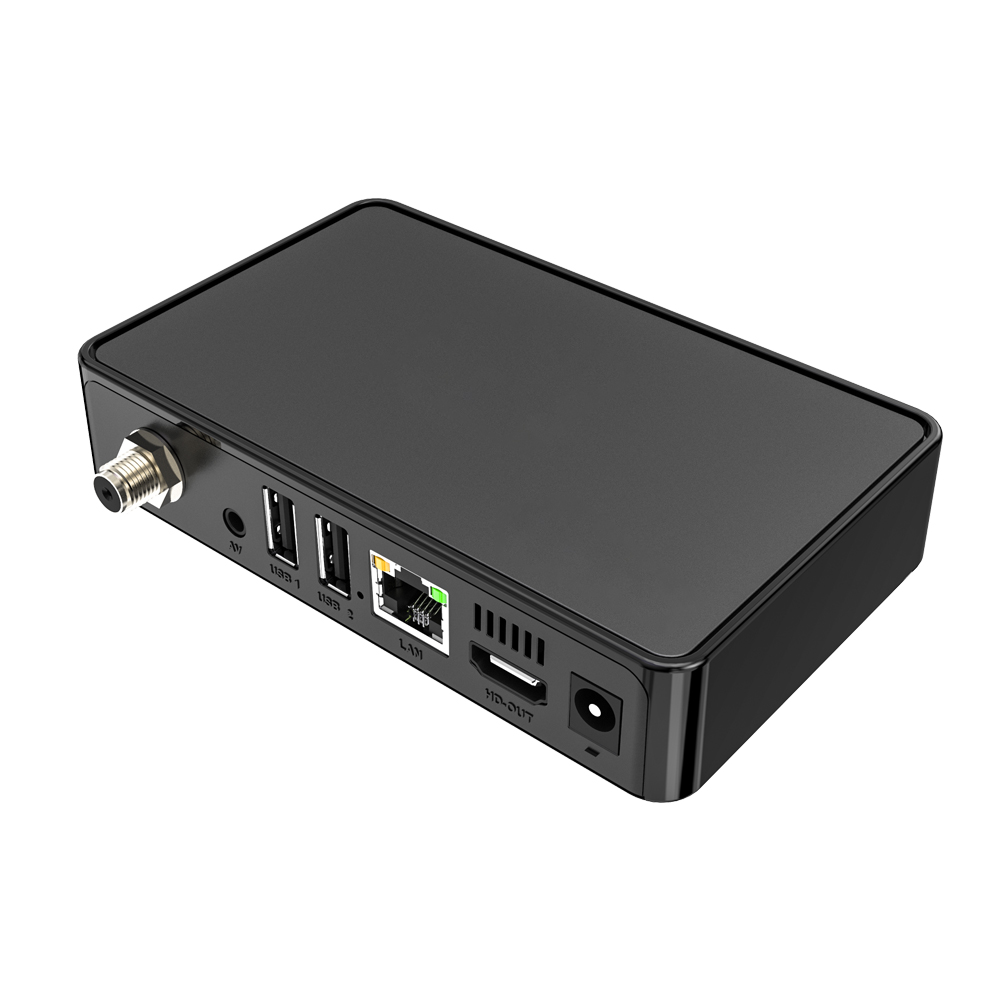

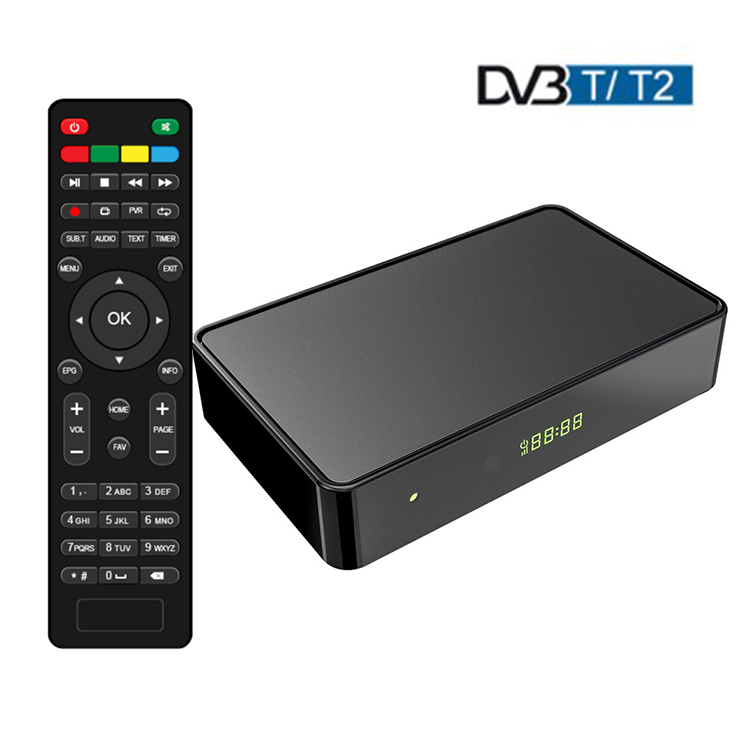

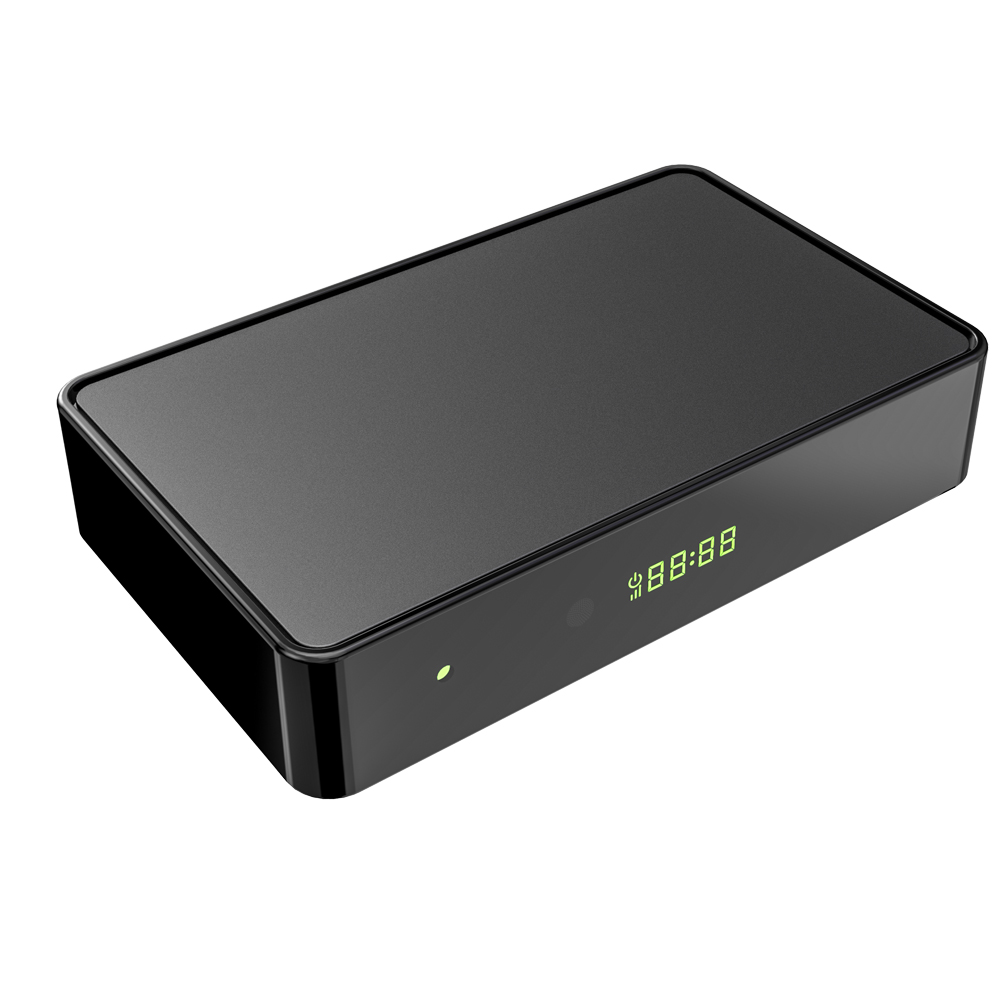

Hybird Dvb-T2 Set Top Box Pictures:

Inquiry Now

Product Name:Android 10.0 TV Box Decoder Dvb t2 with Netflix 1080p Youtube 4K Hybird Dvb-T2 Set Top Box
