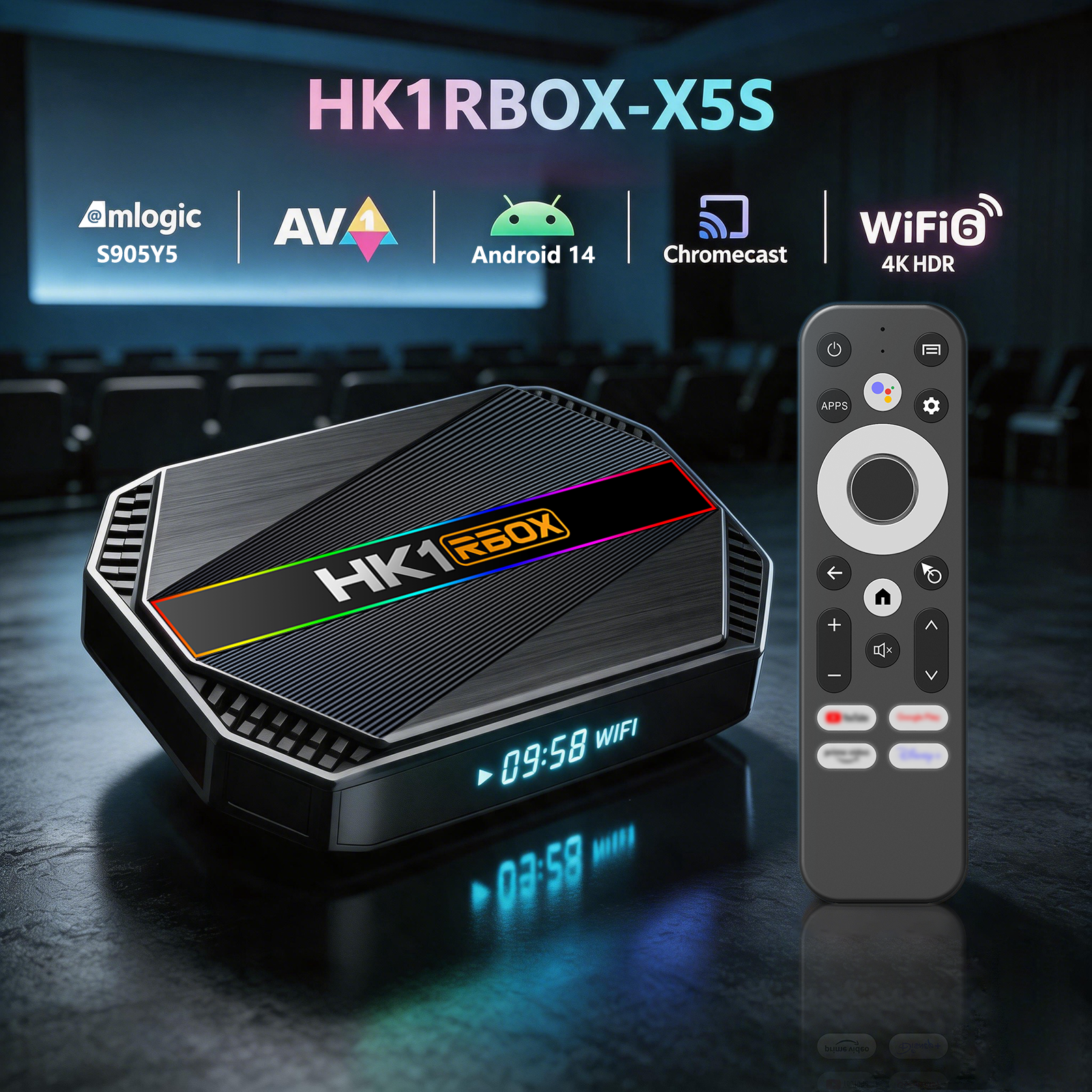

HK1RBOX X5S Amlogic S905Y5 Quad Core Android 14.0 4GB 32GB 4K TV Box
Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.
● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service
● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee
19
0
- Description
Product Specifications:
| Basic parameters | ||||
| CPU | Chipset | Amlogic S905Y5 (12nm) | ||
| Architecture | Quad Core ARM Cortex A55 up to 1.7Ghz | |||
| GPU | Chipset | ARM Mali-G31 MP2 | ||
| Architecture | OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.0 support | |||
| RAM | Capacity | 2/4GB DDR3 | ||
| ROM | Capacity | 16/32/64/128GB EMMC | ||
| External storage | USB Storage Devices | USB2.0 Support | ||
| Micro SD card | Supported | |||
| Software | ||||
| Operating system | OS Version | Android 14 (64bit System) | ||
| Language | Multi-Language | |||
| Video/Picture Decoding | AV1 MP-10@L5.1 up to 4Kx2K@60fps | |||
| VP9 Profile-2 up to 4Kx2K@60fps | ||||
| H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps | ||||
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
| AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | ||||
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Image Engine | Supports HDR10, HDR10+ processing | |||
| Inline AI-SR,Block noise, mosquito noise, spatial noise, contour noise reduction | ||||
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||
| Network service | ||||
| Wi-Fi | Type | Support WiFi IEEE 802.11 a/ b / g / n /ac/ax wifi6 | ||
| Frequency | Support 2.4G and 5G | |||
| Antenna Type | one external antennas | |||
| Bluetooth | Bluetooth | Support BT5.X | ||

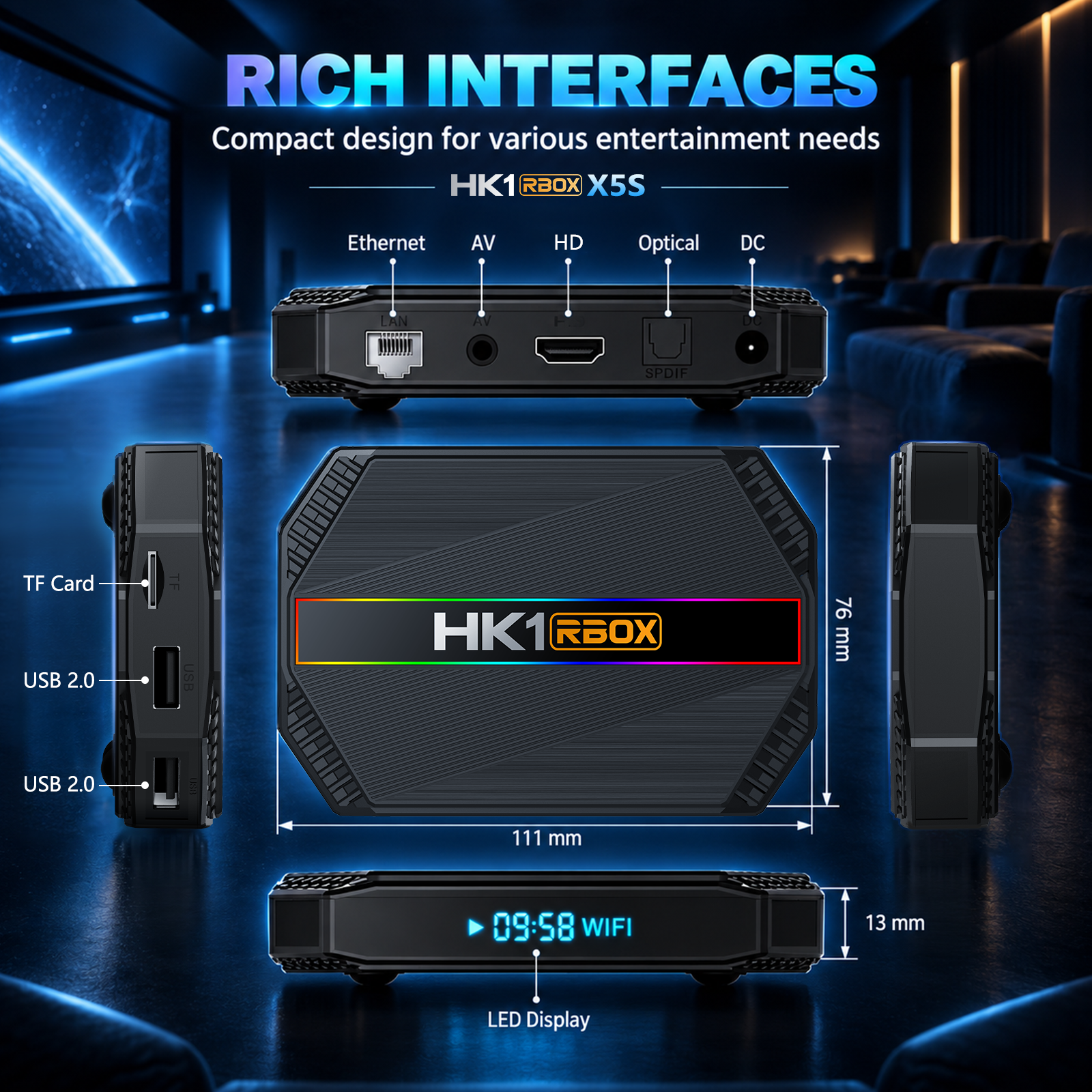

| Interface | ||||
| Charge | DC connector | DC IN(5V/2A) | ||
| Video output | HDMI | 4K60HZ Output, HDMI 2.1a | ||
| AV PORT | 3.5mm Earphone jack | need to purchase the AV cable | ||
| Optical interface | Supported | Spdif | ||
| Micro SD | External memory | Support | ||
| USB port | USB host | *2 USB2.0 normal type | ||
| Ethernet | Ethernet | 100M Ethernet | ||
| Others | RTC (Real-Time Clock) | Optional (OEM) | ||

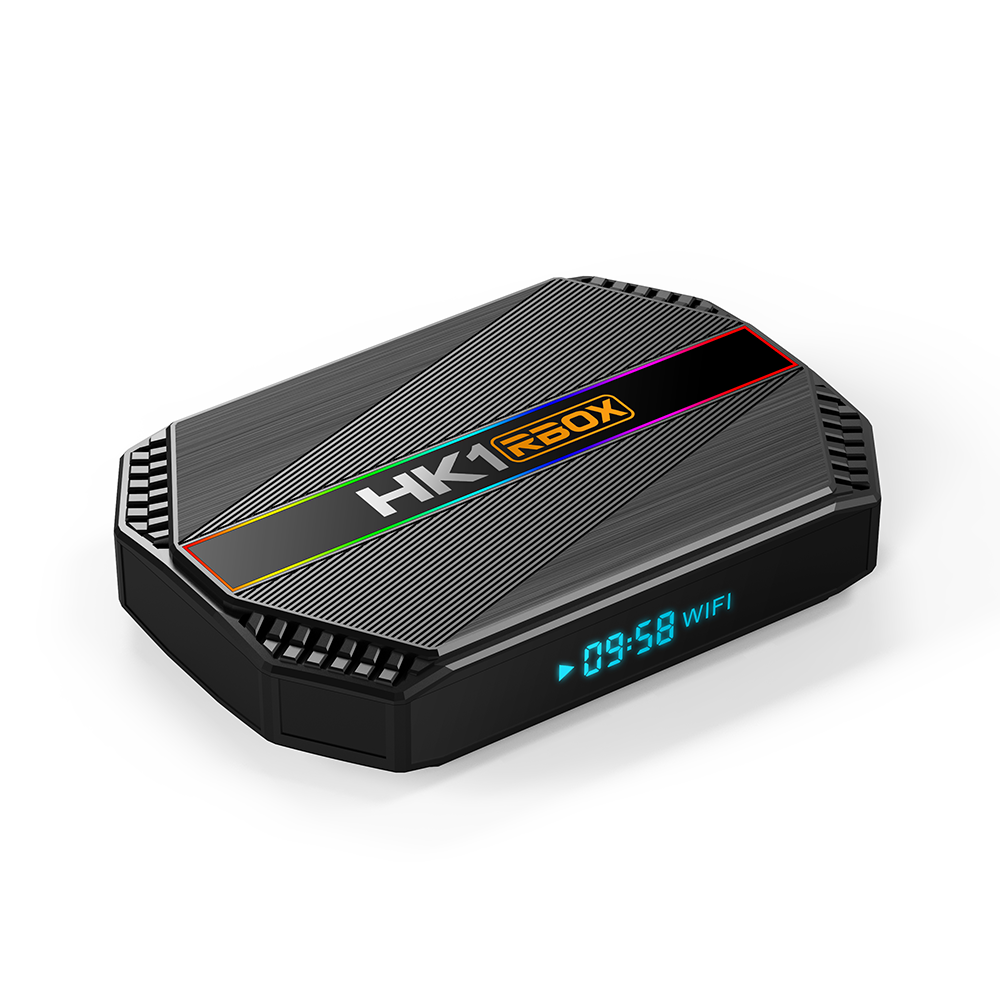

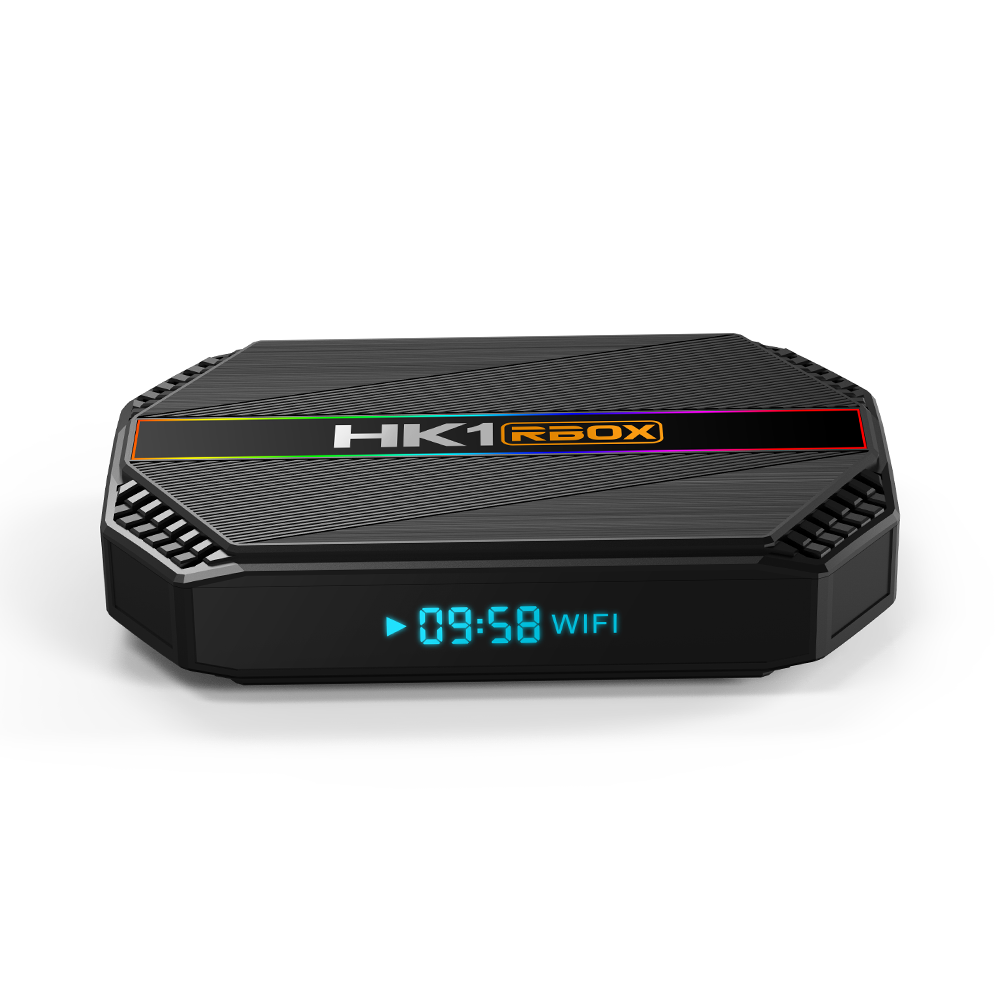

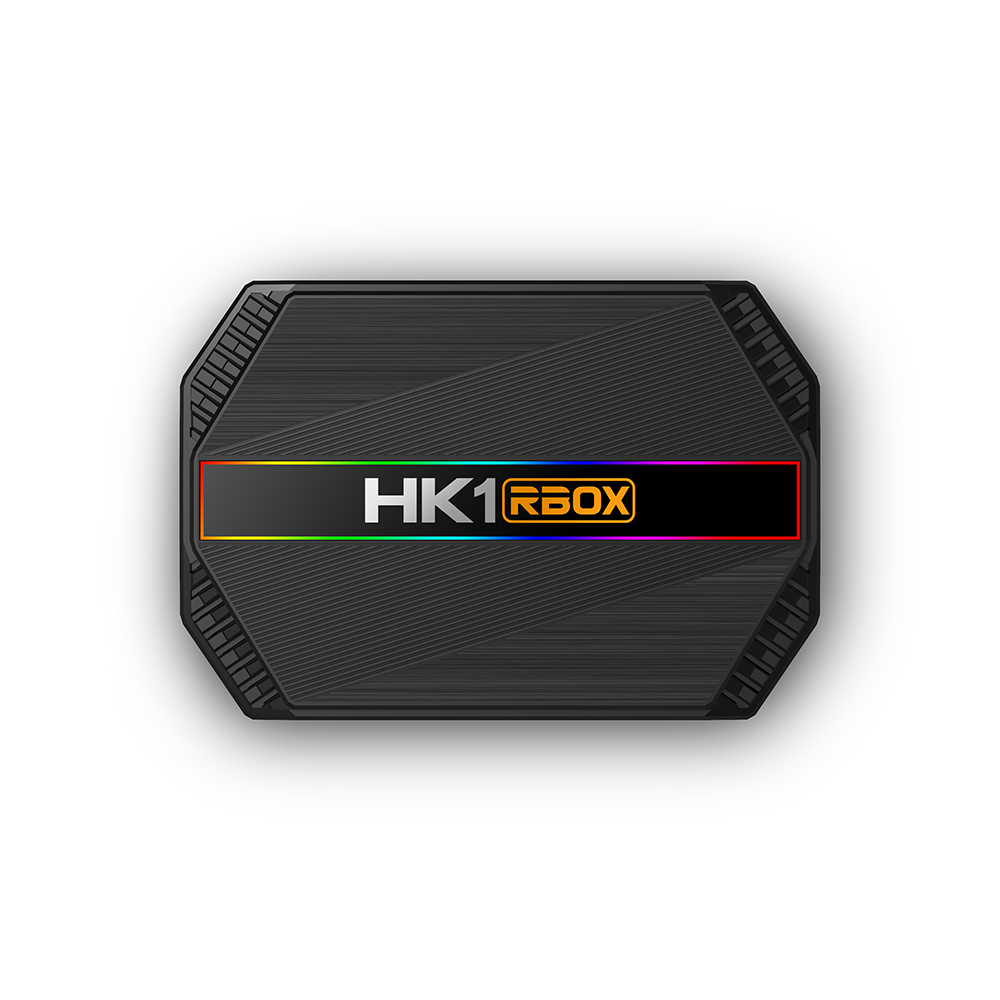

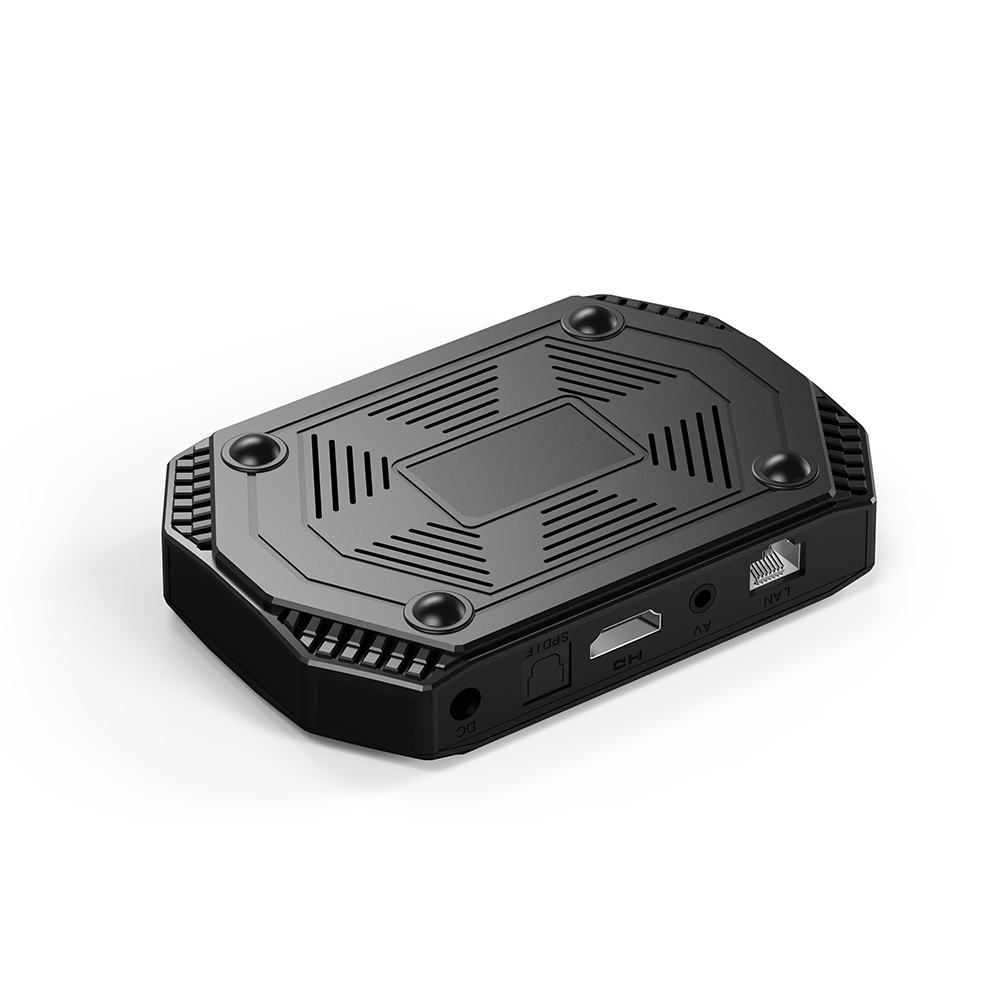

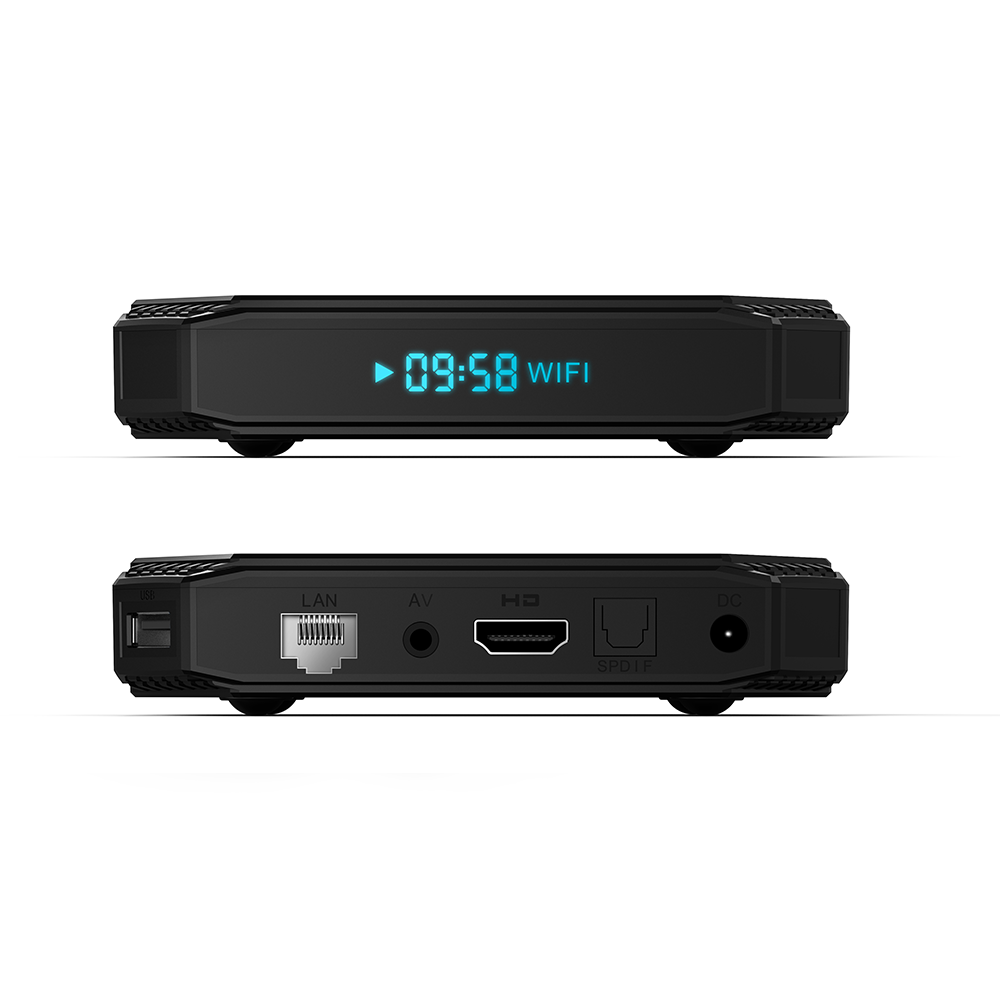

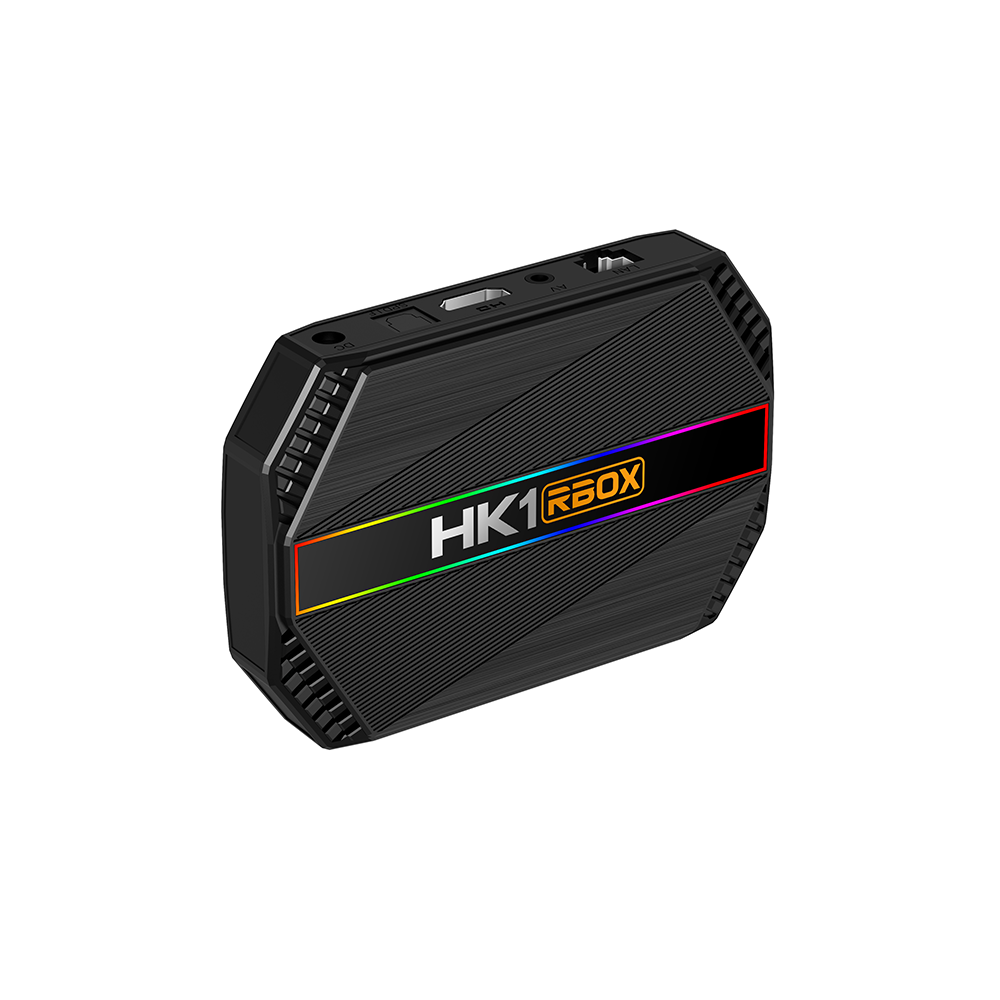

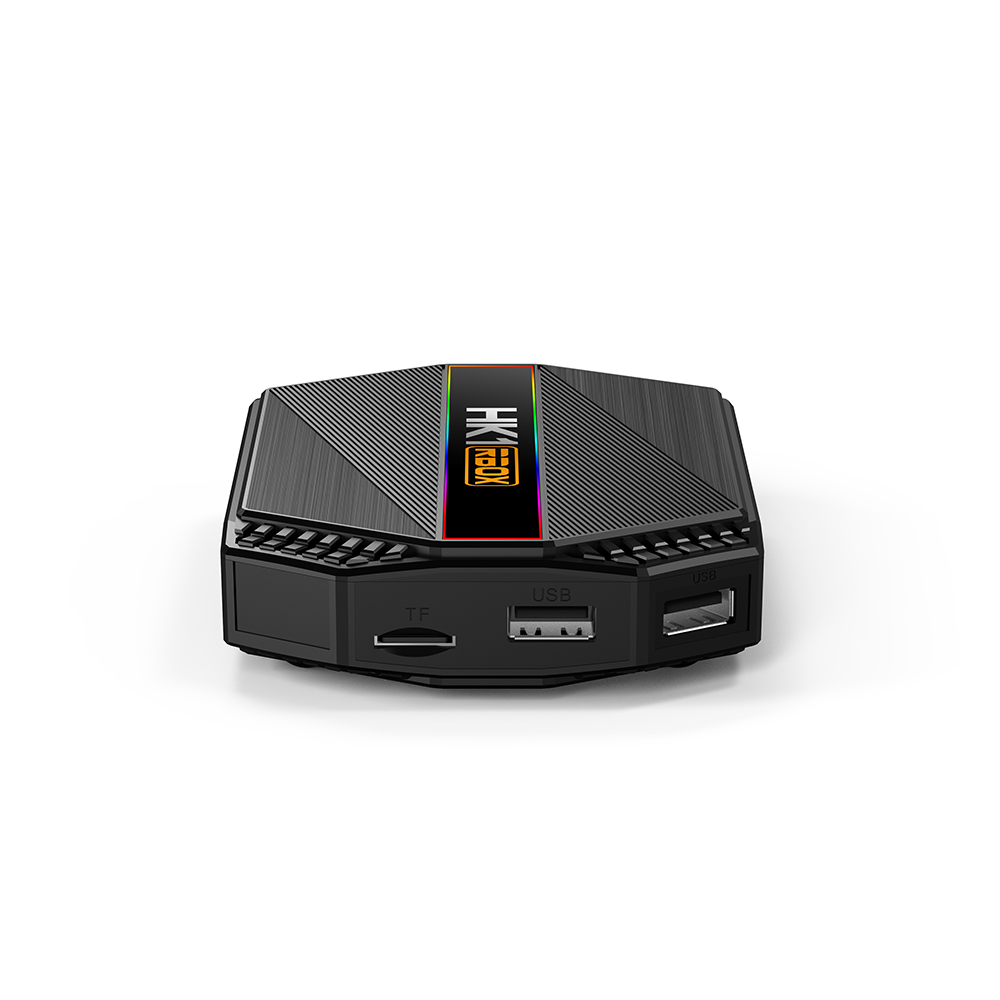

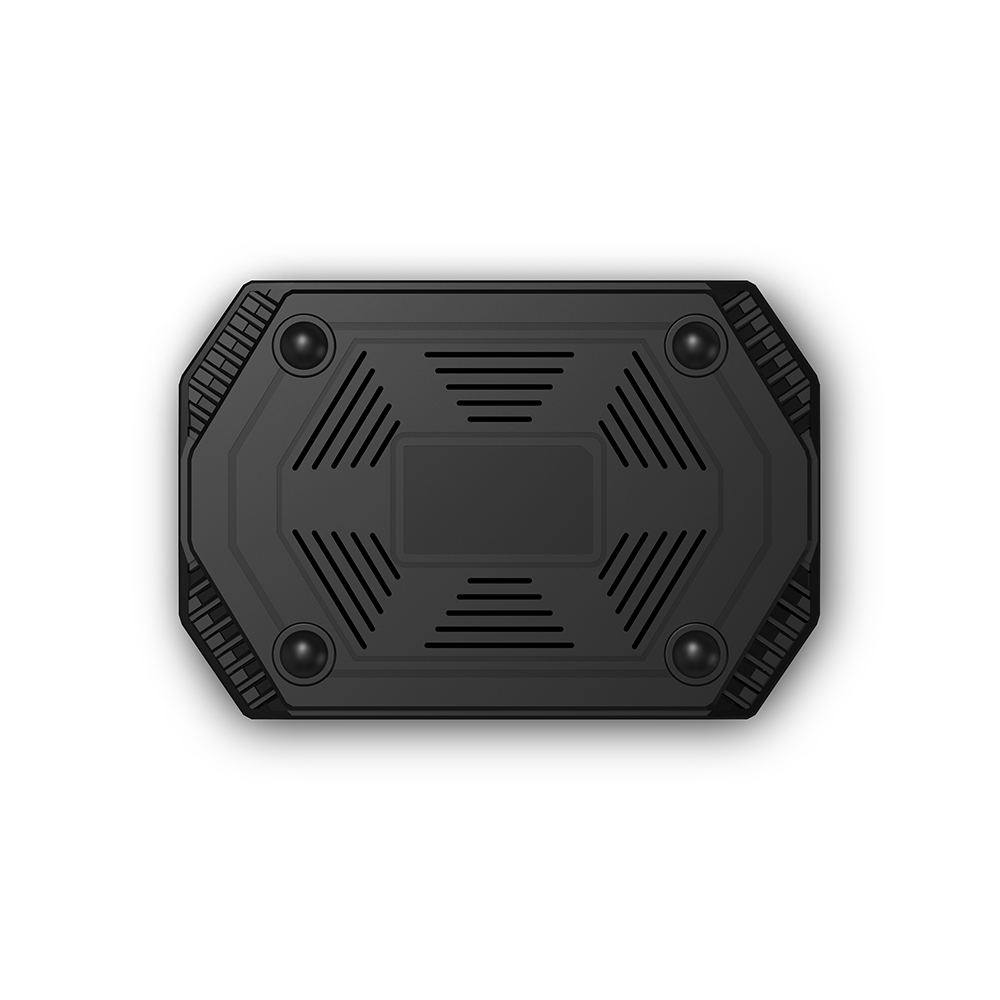

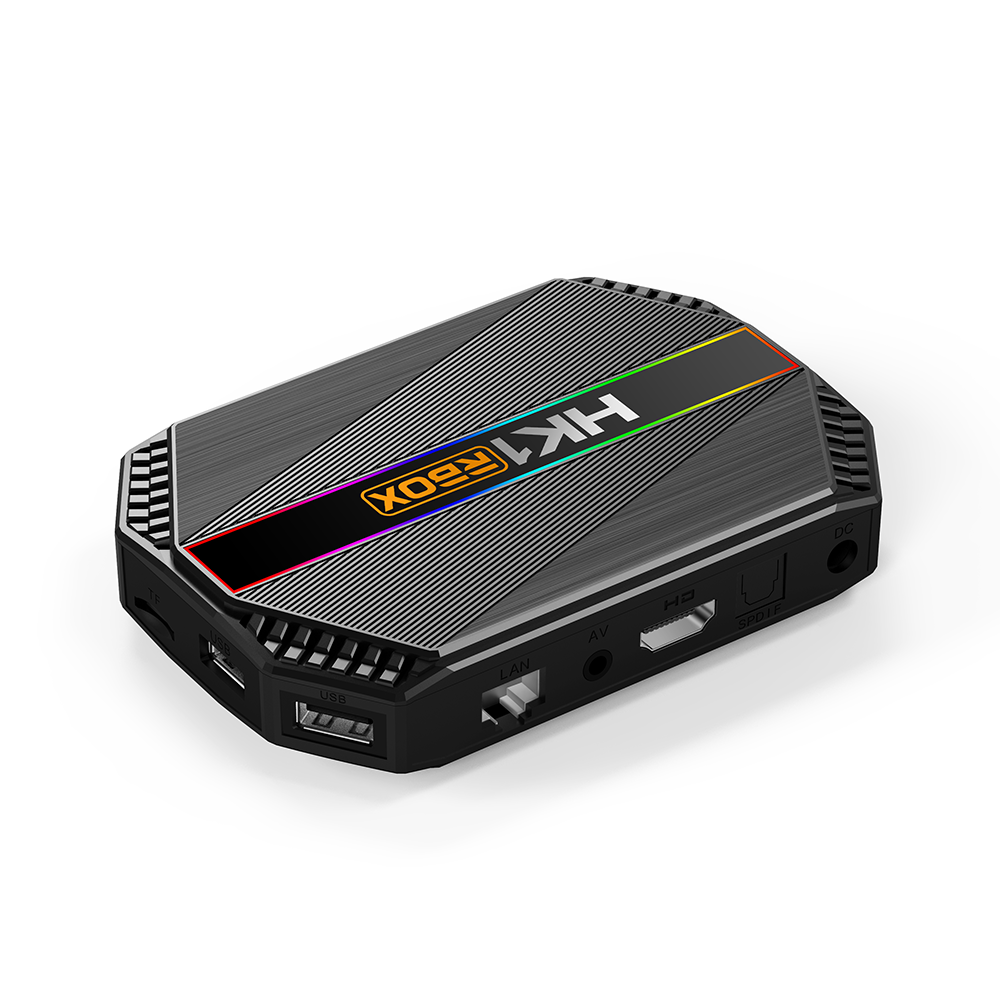

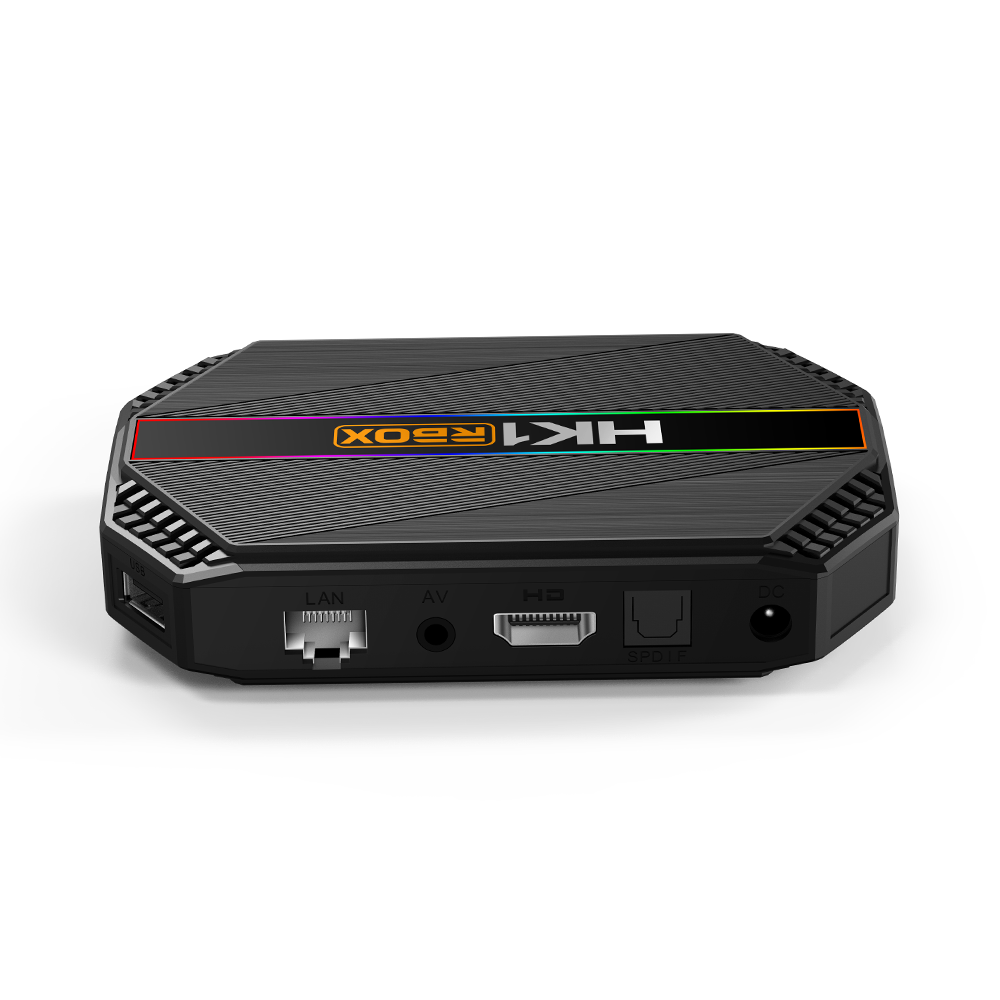

Product Picture:
