HK1Rbox H8X Allwinner H728 Octa Core Cortex A55 4GB 32GB 8K Android14 TV Box
Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.
● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service
● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee
19
0
- Description
Product Specifications:
| Basic parameters | ||||
| CPU | Chipset | Allwinner H728 | ||
| Architecture | Octa-core ARM Cortex A55 | |||
| GPU | Chipset | Mali G57-MC1 | ||
| RAM | Capacity | 4GB DDR3 | ||
| ROM | Capacity | 32GB / 64GB Emmc | ||
| External storage | USB Storage Devices | Supported | ||
| Software | ||||
| Operating system | OS Version | Android 14 | ||
| Language | Multi-Language | |||
| Multimedia | Video | Video Decoder: | ||
| H265 Main10@L5. 1 decoder up to 4K@60fps or 8K@24fps | ||||
| VP9 decoder up to 4K @ 60fps | ||||
| H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps | ||||
| Multi-format 1080p@60fps video playback, including VP8, MPEG1/2 SP/MP, MPEG4SP/ASP, AVS+/AVS JIZHUN | ||||
| Video encoder: | ||||
| H.264 encoder , up to 4K @ 25fps MJPEG encoder , up to 4K @ 15fps JPEG encoder , up to 8K x 8K resolution |
||||
| Audio | MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||
| Network service | ||||
| Wi-Fi | Type | Option:IEEE802. a/b/g/n/ac IEEE802. a/b/g/n/ac/ax WIFI6 |
||
| Frequency | 2.4GHZ ~ 5.8GHZ | |||
| Antenna Type | Inside antennas | |||
| Bluetooth | Bluetooth | BT5.0+ | ||

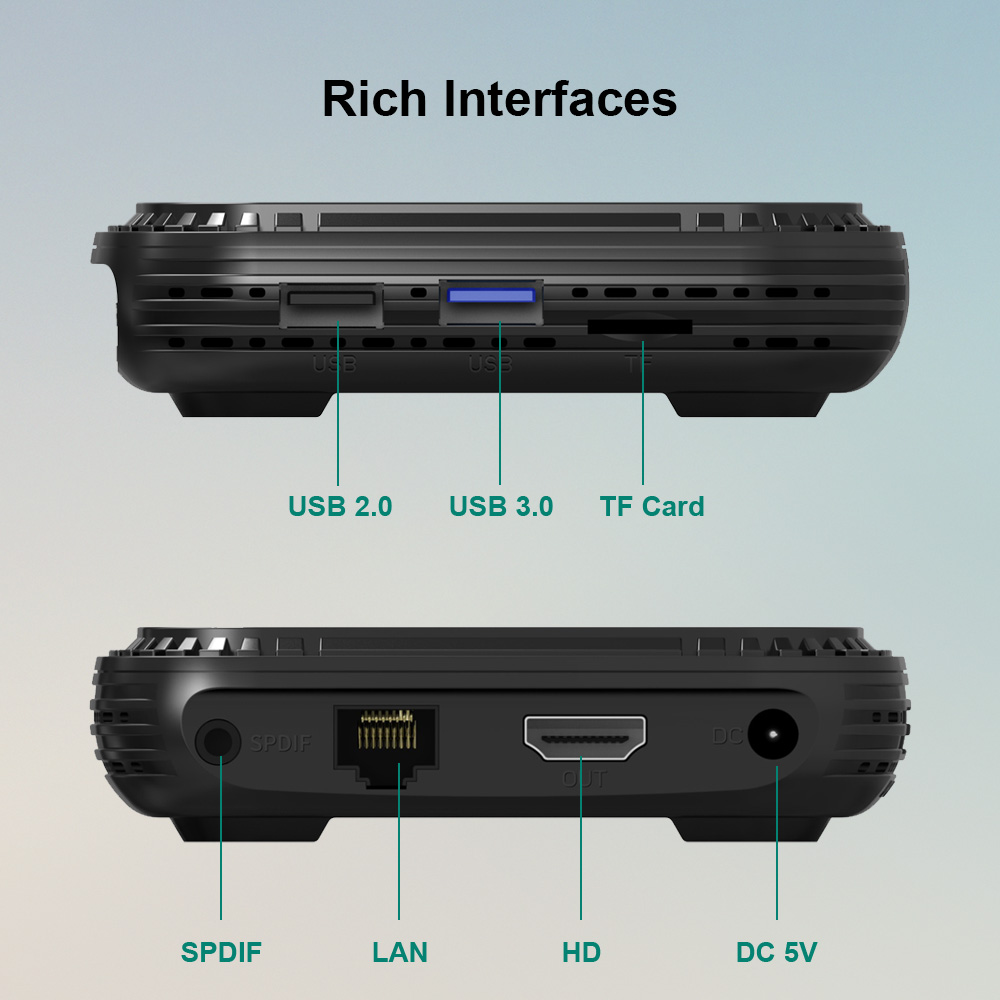

| Interface | ||||
| Charge | DC connector | DC 5V- 2A | ||
| Video output | HDMI | 1* 4K 2K Output, HDMI 2.0a | ||
| AV Port | / | |||
| OPTCAL | / | 1 * SPDIF | ||
| Ethernet | Ethernet | 1000M | ||
| TF Card | External memory | 1* TF Card | ||
| USB port | USB Host | 1* USB 2.0+1*USB3.0 | ||
| Update | soft | Update online | ||
| Others | Cool-Fan | LED Fan*1 | ||

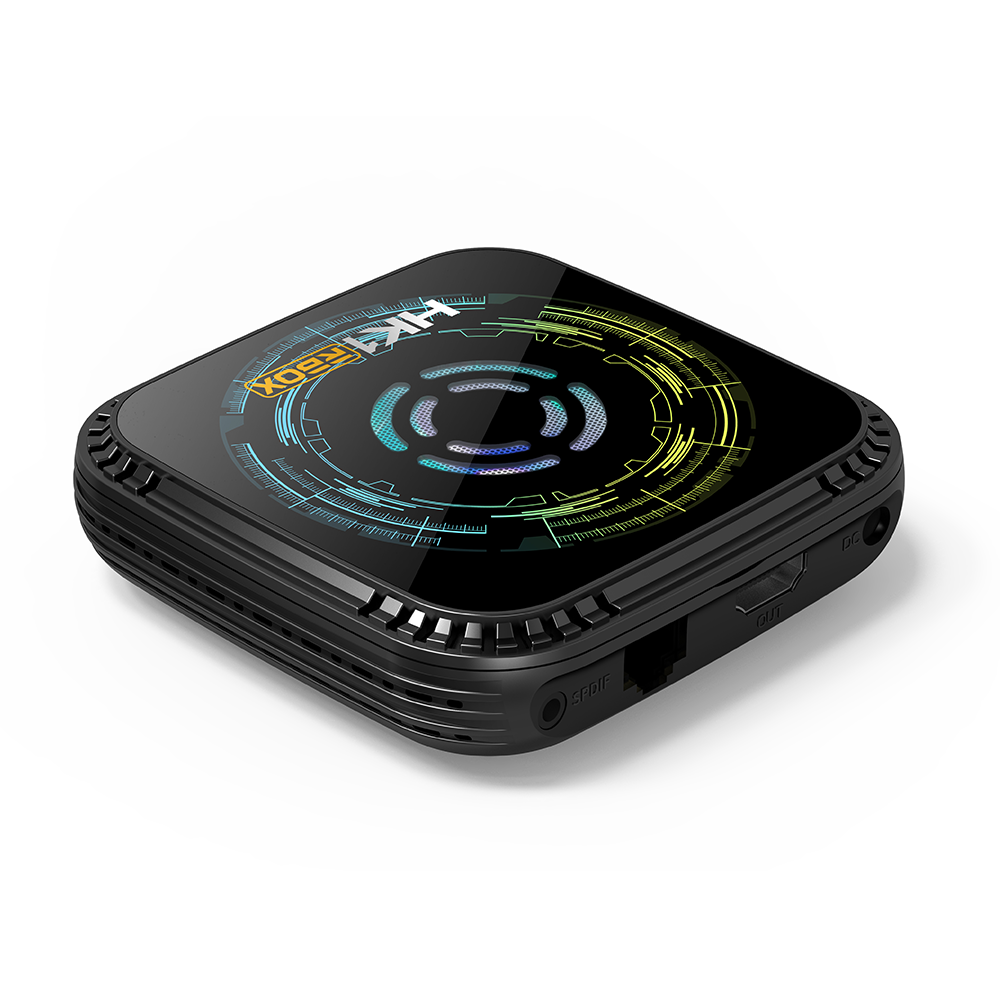

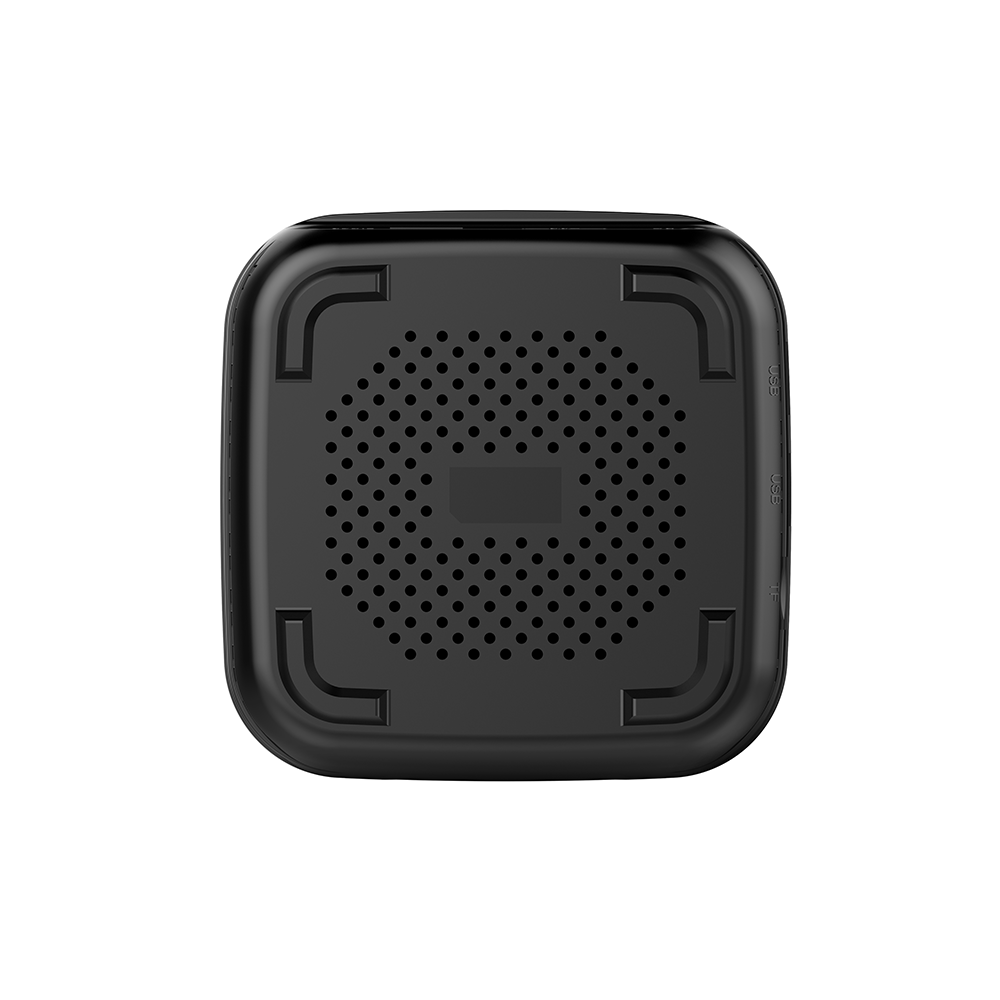

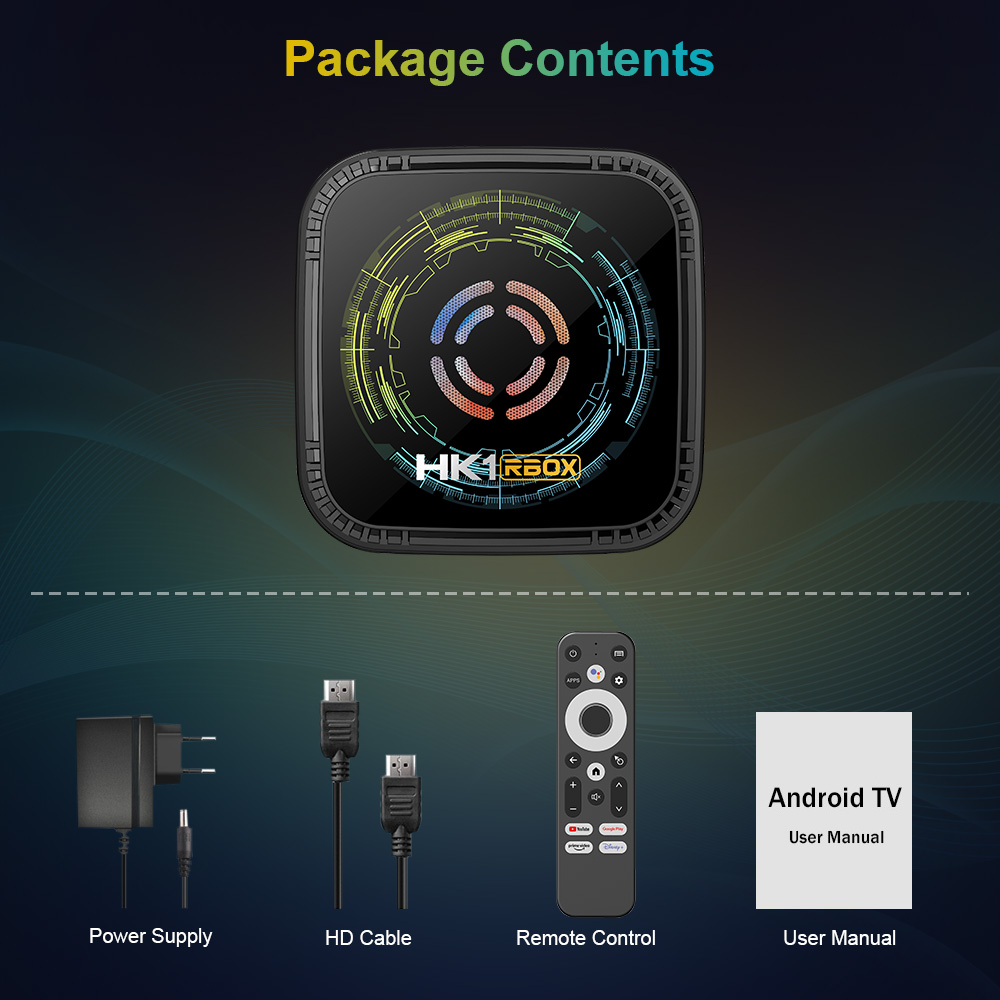

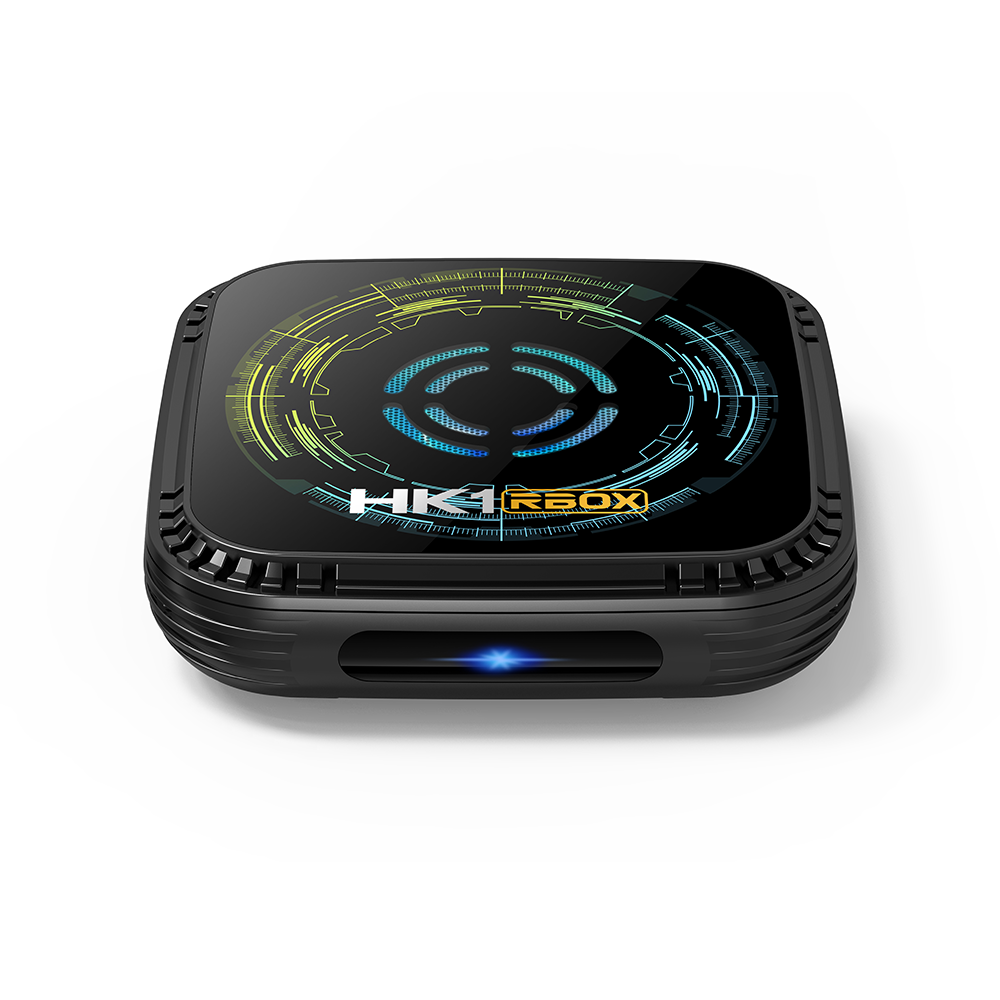

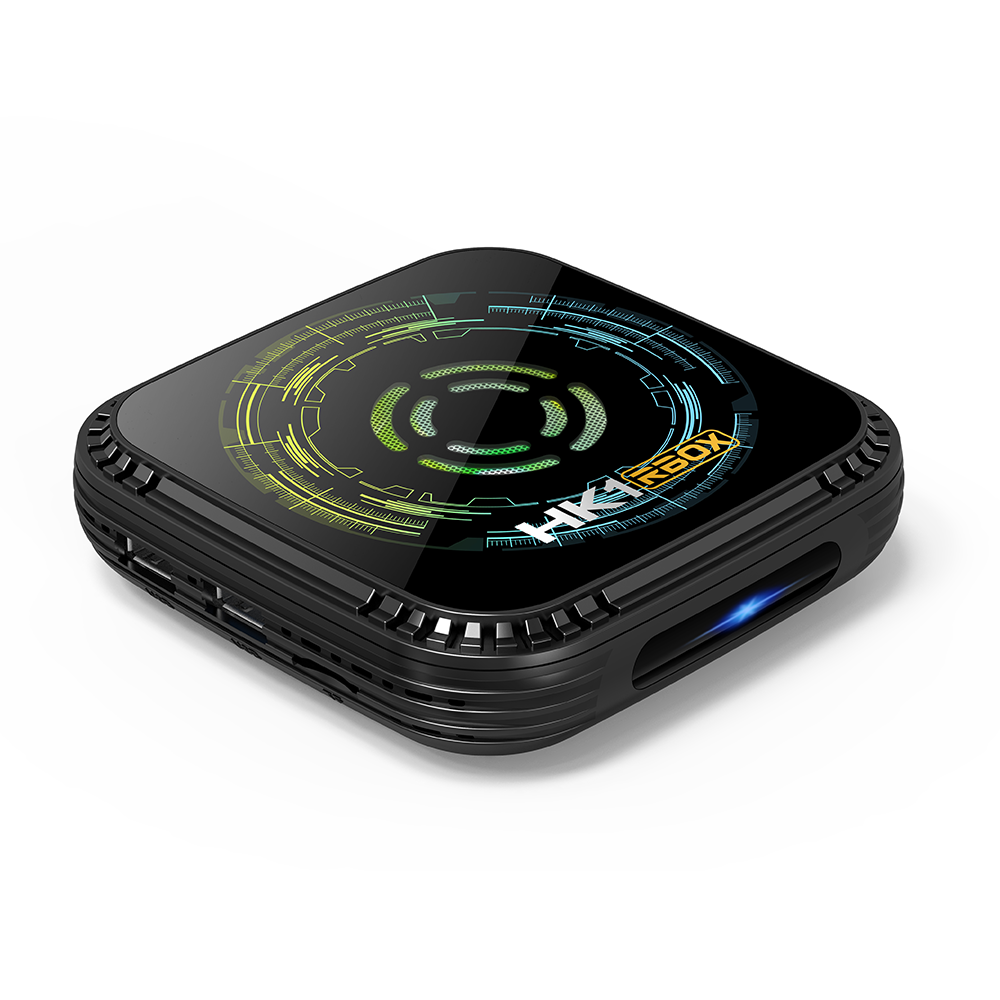

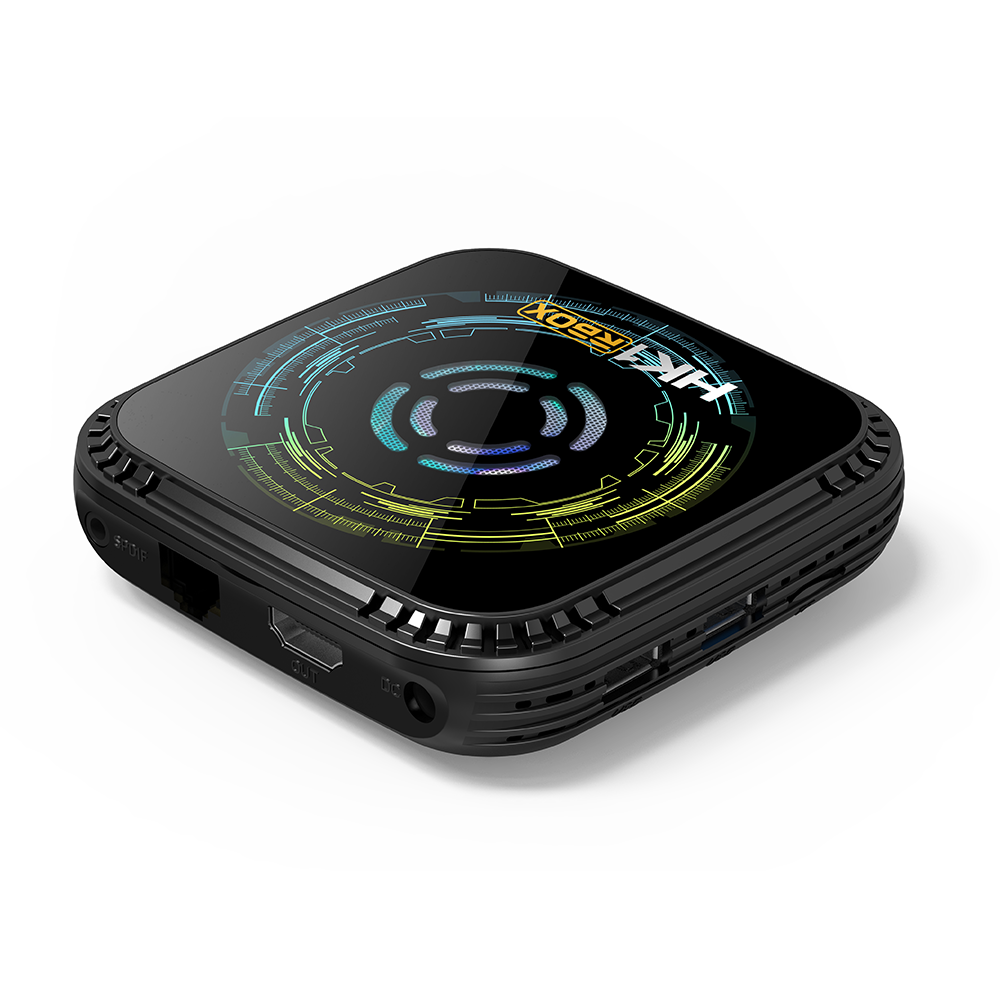

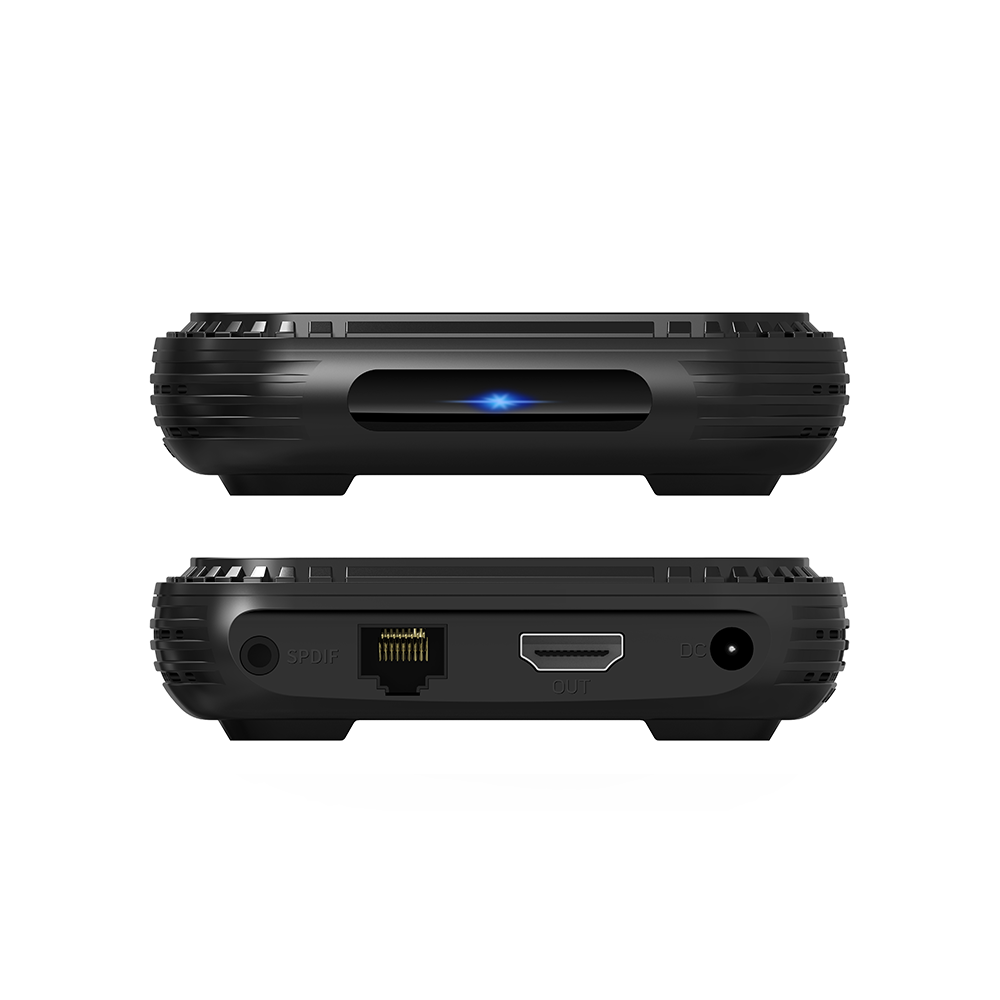

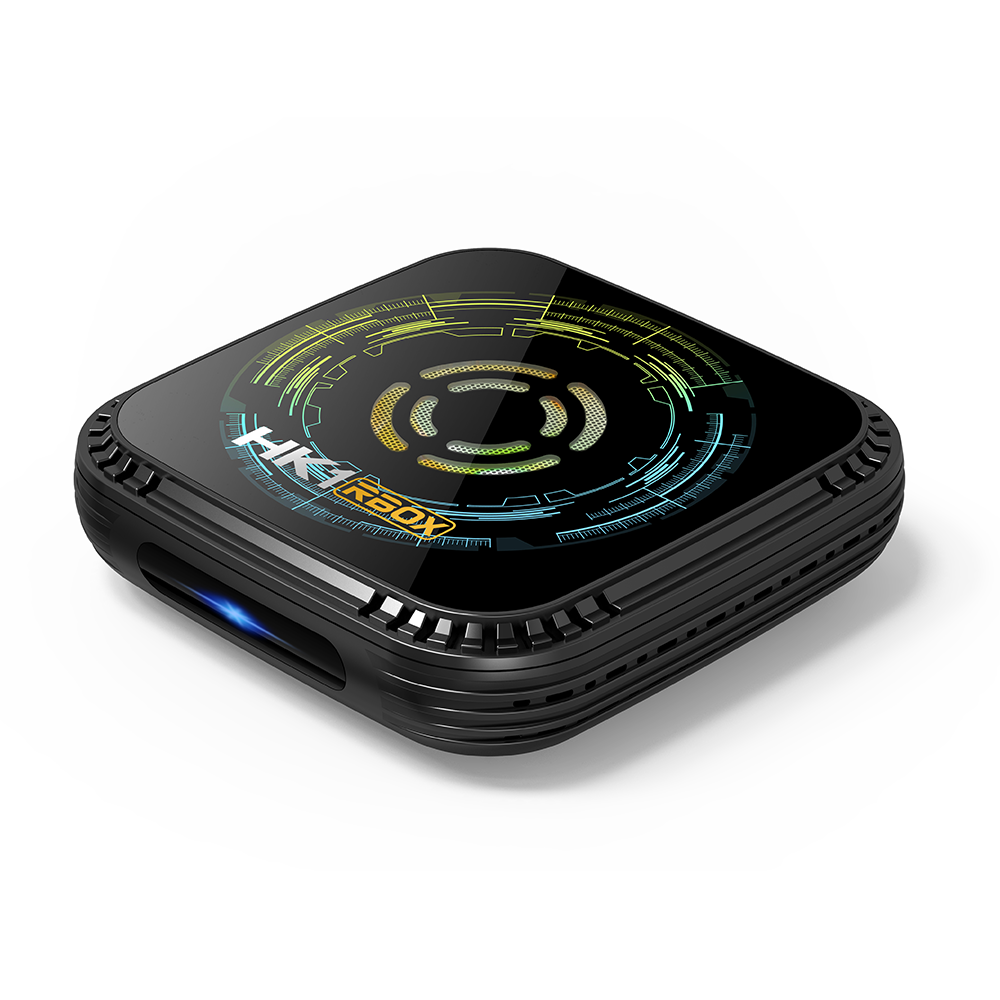

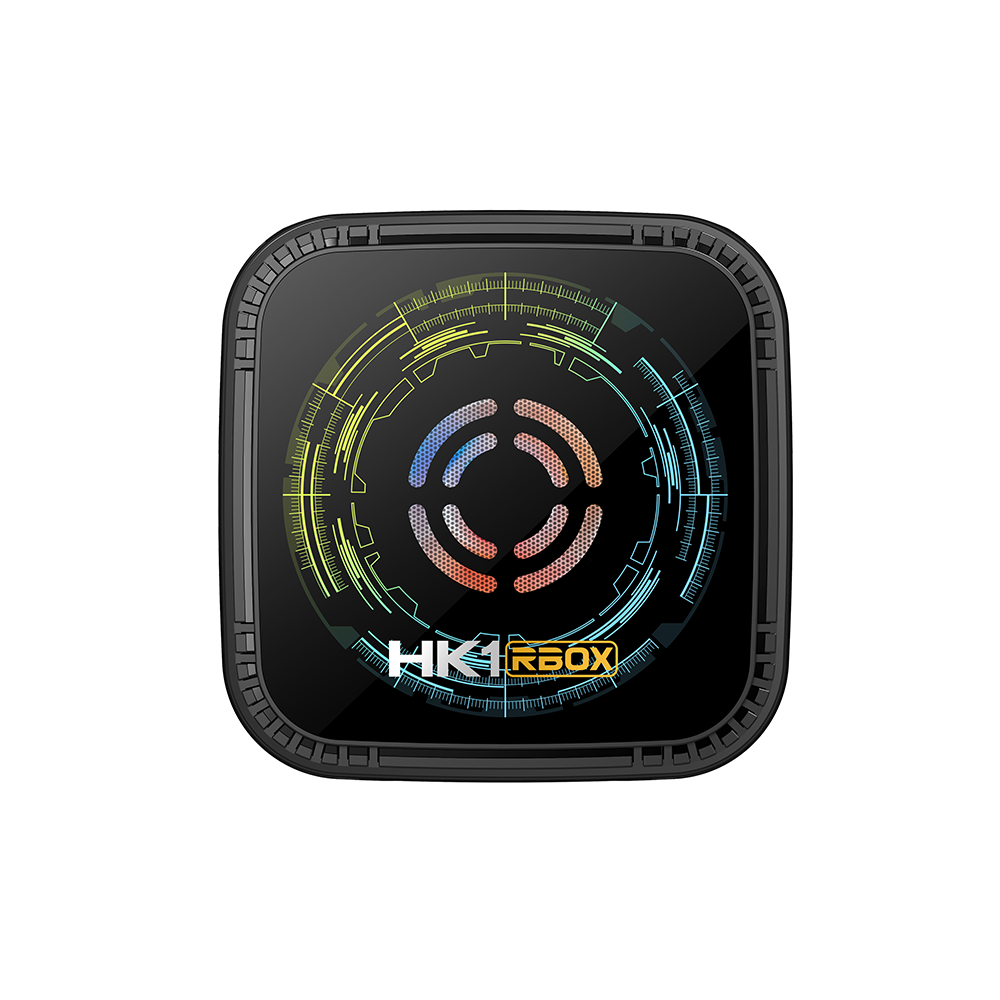

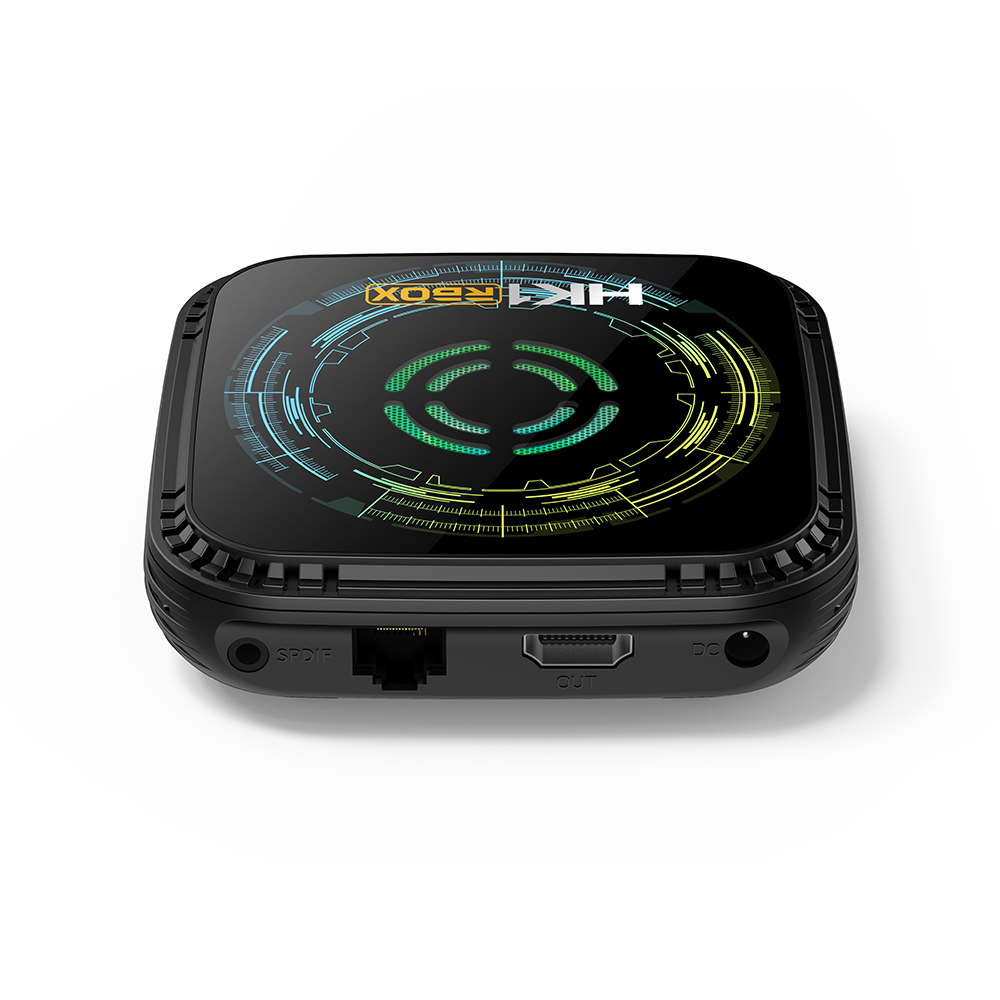

Product Pictures:
