OEM Customize HK1 Rbox X4S Amlogic S905X4 Quad Core 4K Android Tv Box 2GB 16GB Smart TV Box

Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.
● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service
● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee

GET PRICE
310 0
  • Description

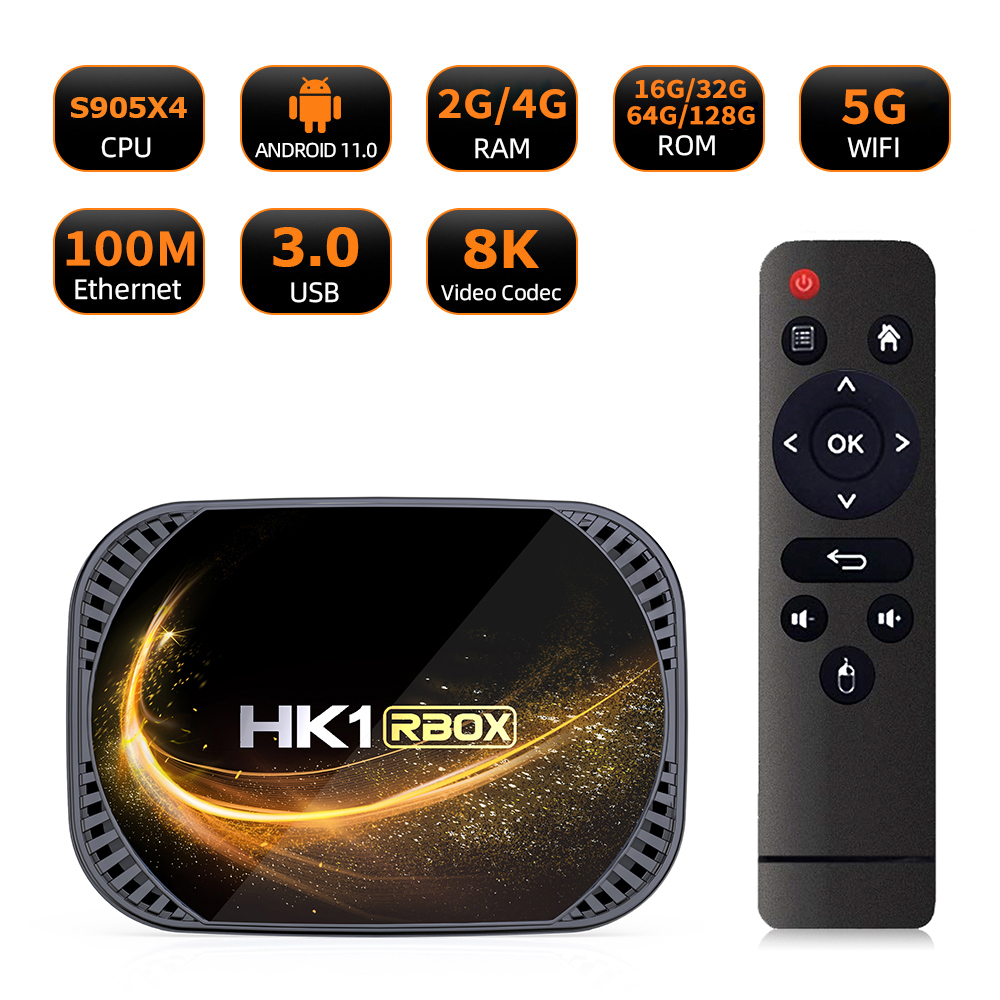

HK1 RBOX X4S TV Box Specifications:

Type
Android TV Box, Smart STB, Netbox, Streaming Media Box
CPU
Amlogic S905X4 64-bit quad core ARM A55 CPU
GPU
G31 MP2 GPU processor
Memory
DDR3: 2G/4GB
Flash
eMMC:16G/32GB/64GB/128GB

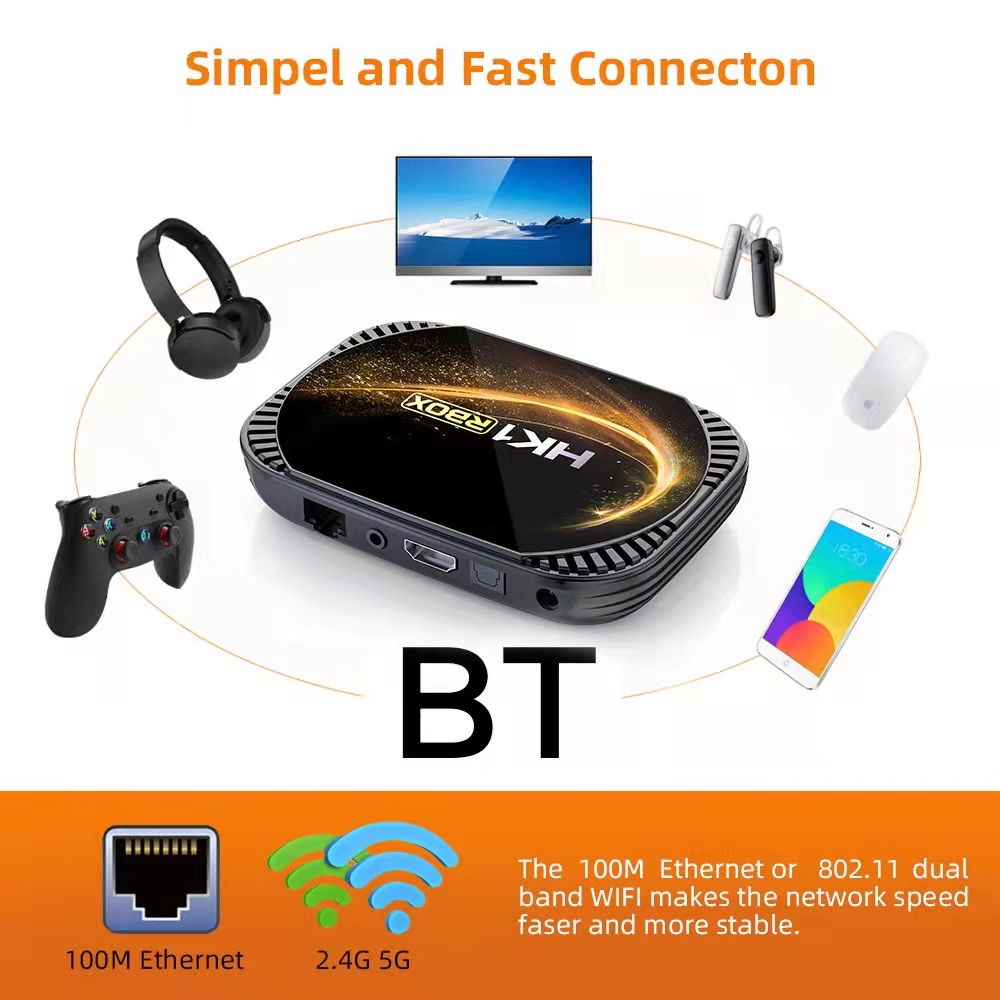

WiFi
IEEE 802.11 b/g/n ; 2.4G / 5G
BT
BT ; Support Voice Remote
Moudle
Plastic : Black Color

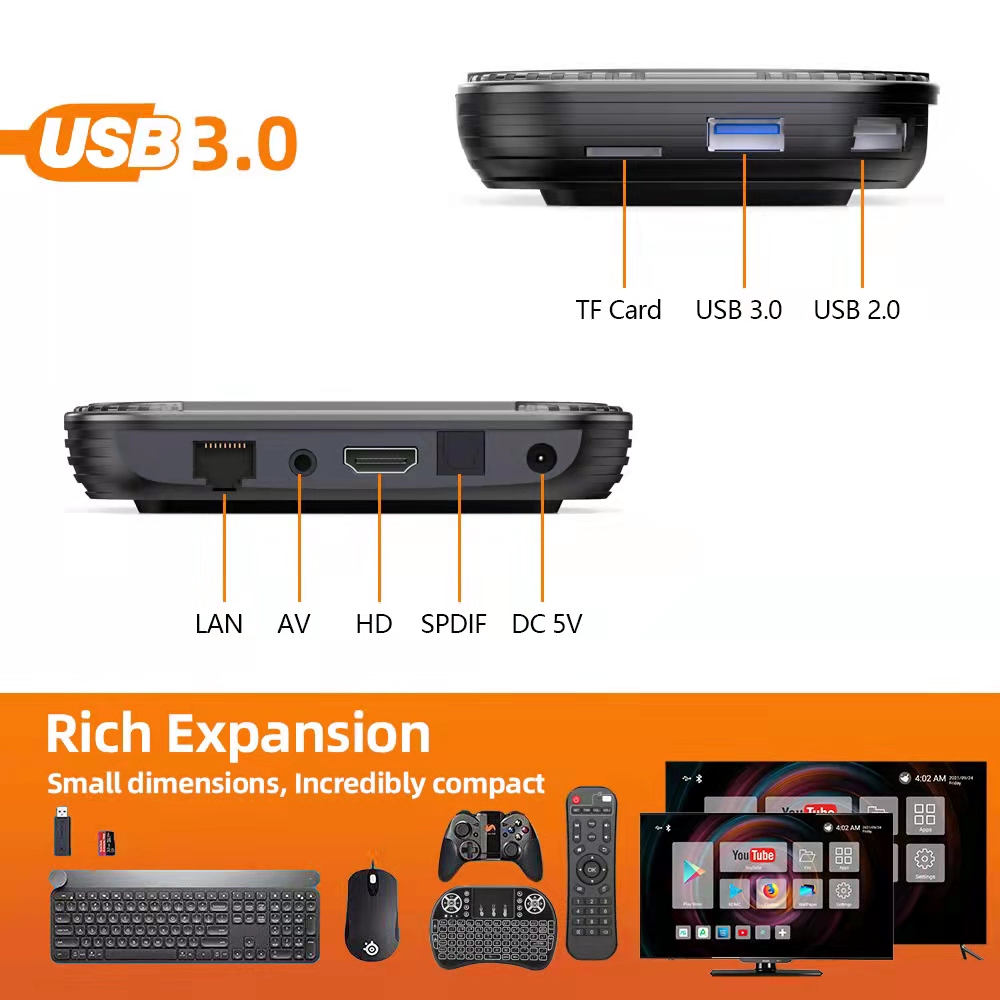

1*HD
HD 2.1 ,Support HD CEC, Dynamic HDR and and 8Kx4K@24 max resolution output
1*AV OUT
480i/576i standard definition output
2*USB
1 * USB 3.0 ; 1*USB 2.0
1*IR Reciver
Remote Reciver Connect
1*RJ45
Ethernet Interface;Support 10/100M
1*TF CARD
Support 4GB/8GB/16GB/32GB/64GB
Power Supply
DC 5V/2A
OS
Android 11.0
Video
Ÿ Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
Ÿ Support multi-video decoder up to 4x1080P@60fps
Ÿ Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
Ÿ Video/Picture Decoding/AV1 MP-10@L5.1 4Kx2K@60fps
– VP9 Profile-2 up to 8Kx4K@24 fps
– H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps
– AVS2-P2 Profile up to 8Kx4K@24 fps
– H.264 AVC HP@L5.1 up to 4Kx2K@30fps
– MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
– WMV/VC-1 SP/MP/AP up to 1080P@60fps
– AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
– MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
– MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
– RealVideo 8/9/10 up to 1080P@60fps
– Multiple language and multiple format sub-title video support
– MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
– Supports JPEG thumbnail, scaling, rotation and transition effects
– Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
Audio
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Low-power VAD
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x
32bits x 16ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
HD JPEG、BMP、GIF、PNG、TIF
Language
English French German Spanish Italian etc multilateral languages

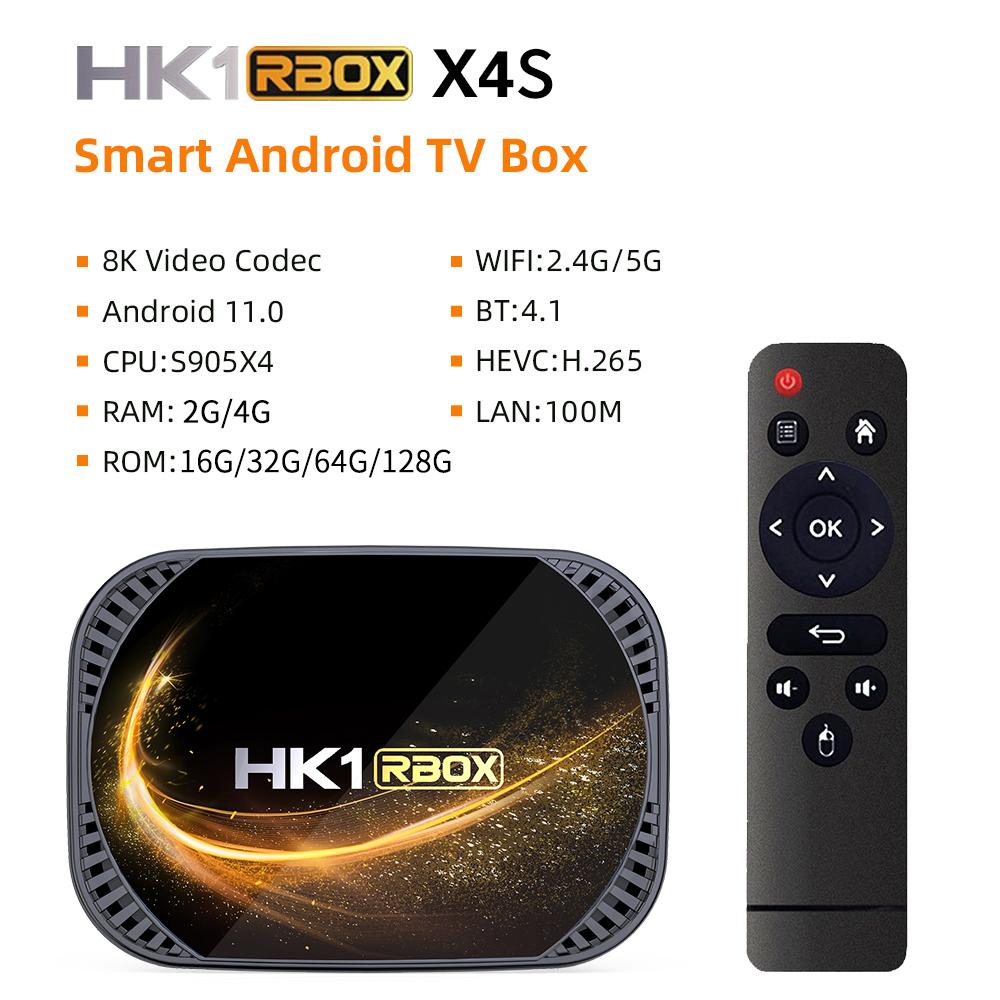

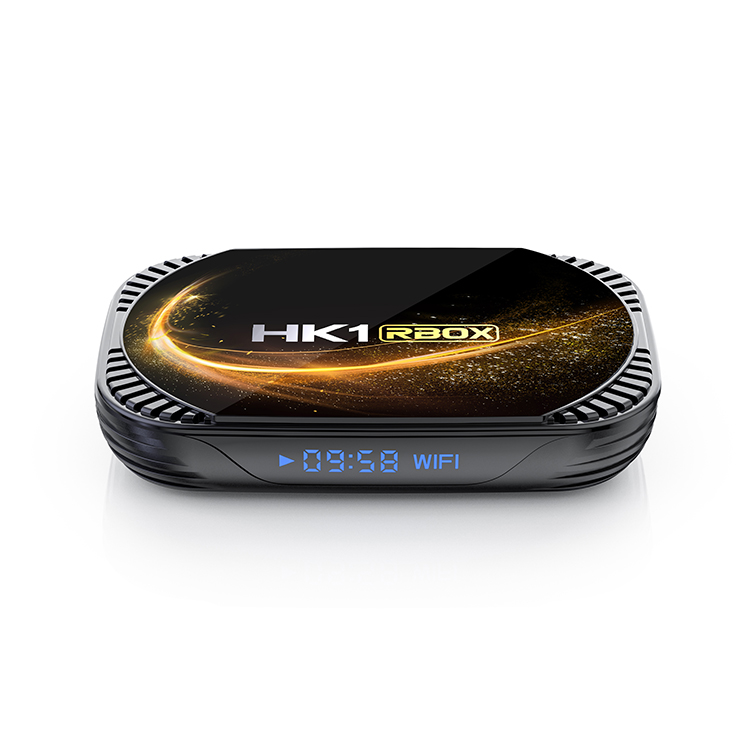

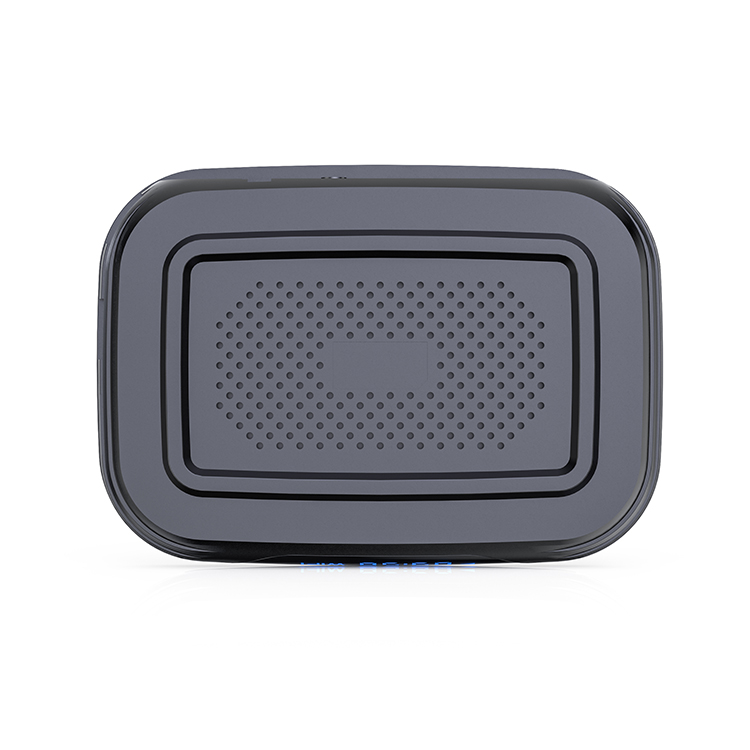

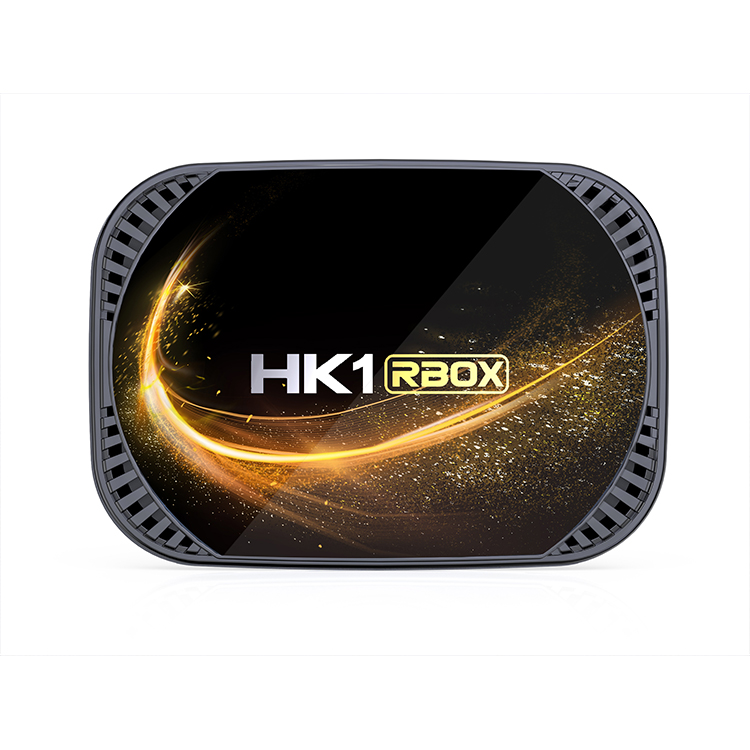

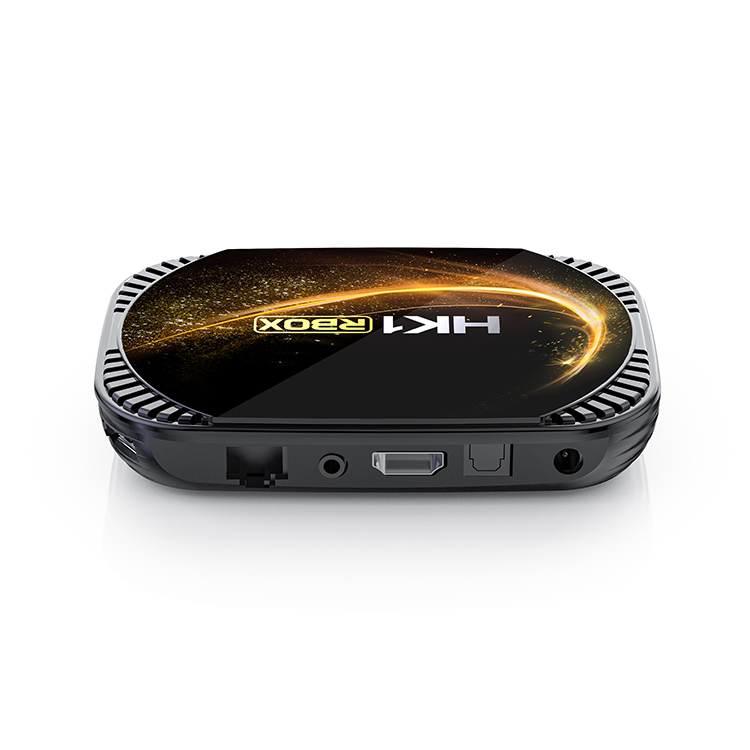

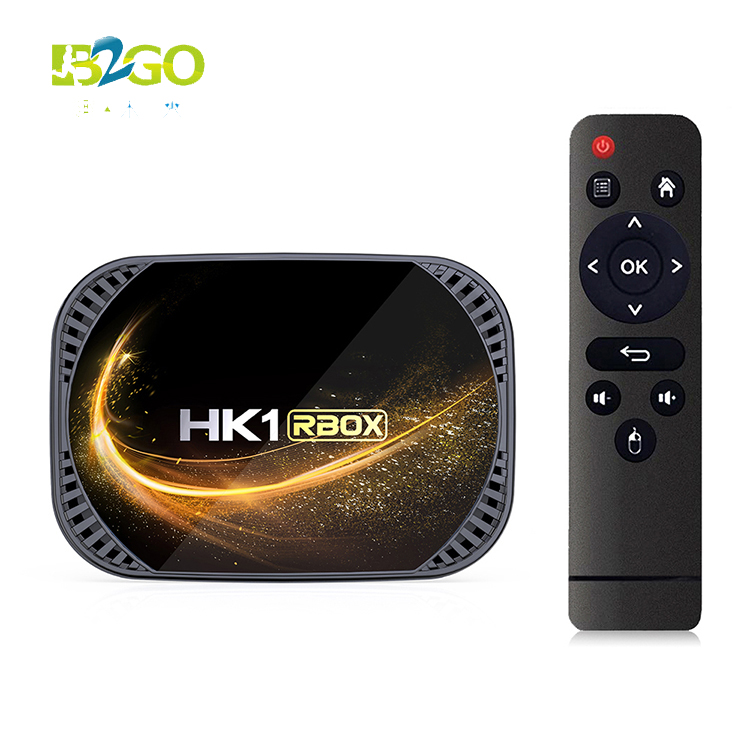

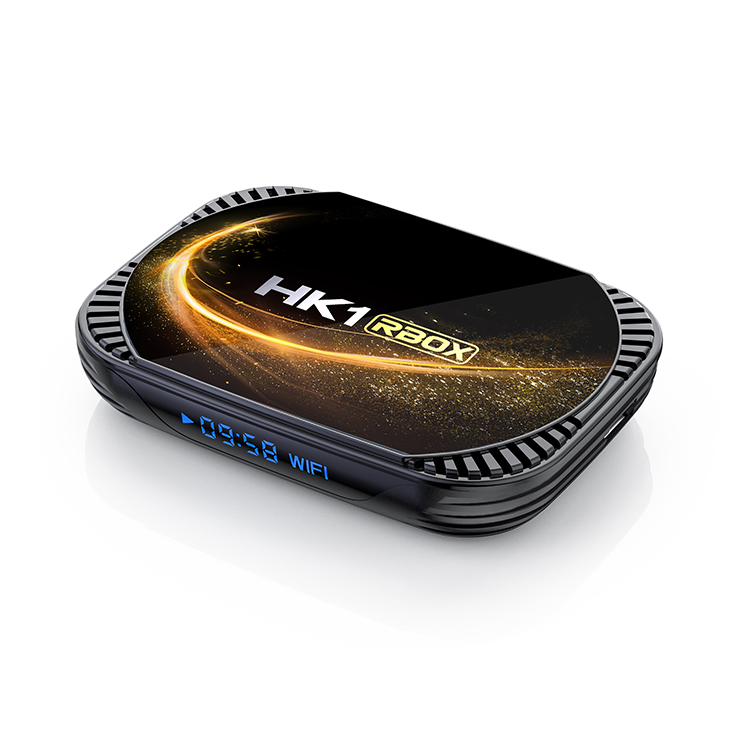

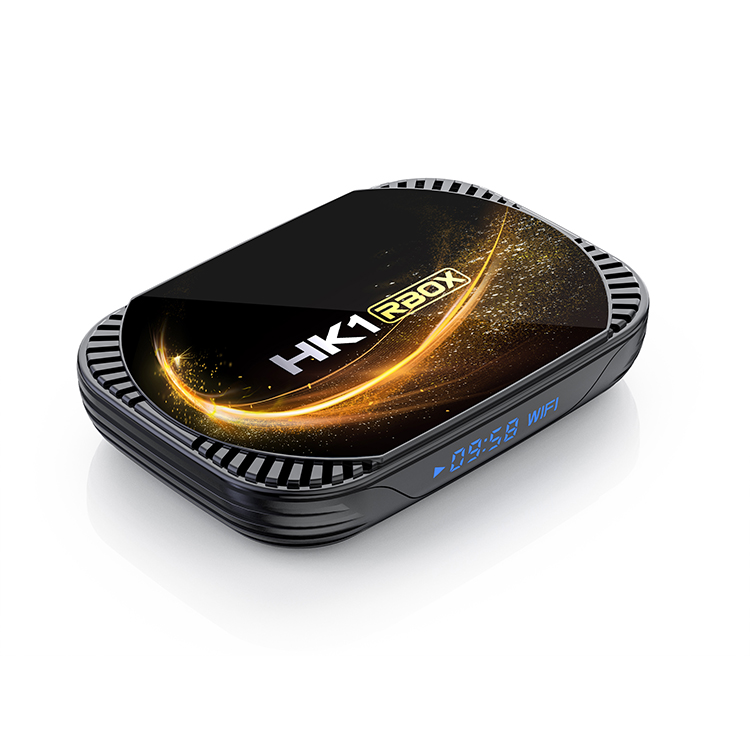

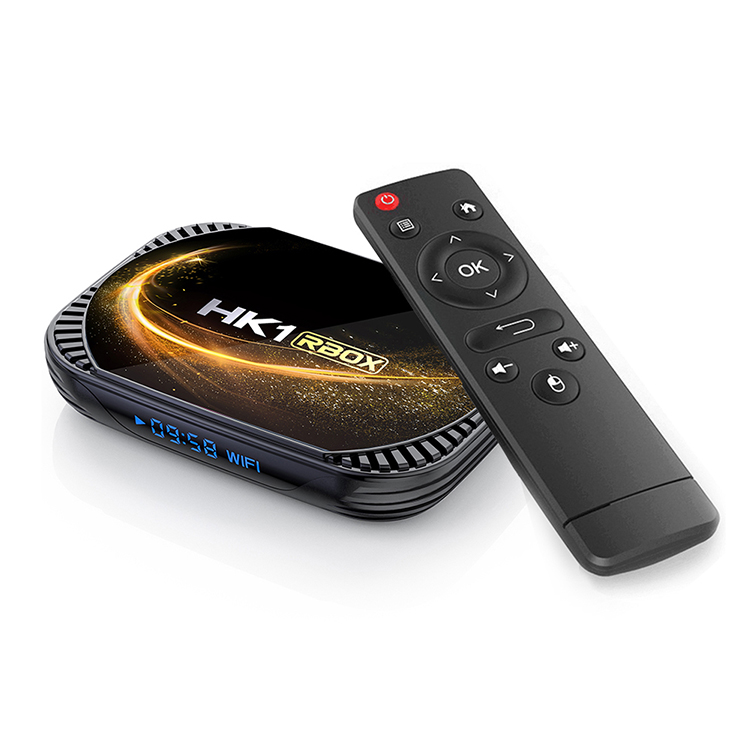

HK1 RBOX X4S TV Box Pictures:
