GENIATRON X96Q Ultra 2GB 32GB Rockchip RK3518 4K Android 14 Smart TV Box
Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.
● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service
● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee
94
0
- Description
GENIATRON X96Q Ultra tv box specifications:
| CPU | Chipset | RK3518 | ||
| Architecture | Quad-Core Cortex-A53 | |||
| GPU | Chipset | ARM Mali-450 GPU | ||
| Architecture | OpenGL ES 1.1/2.0 and OpenVG 1.1 support | |||
| RAM | Capacity | 1GB (2GB Optional) | ||
| ROM | Capacity | 8GB (16/32GB Optional) | ||
| External storage | USB Storage Devices | Supported | ||
| Micro SD card | Supported | |||
| Software | ||||
| Operating system | OS Version | Android 14 | ||
| Language | Multi-Language | |||
| Multimedia | Video | * Video Decoder | ||
| H.264/AVC BP/MP/HP profile @ level 5.1; H.264/AVC MVC; up to 4Kx2K @ 60fps | ||||
| H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps | ||||
| AVS2 4KX2K @60fps | ||||
| MPEG-1, Main profile, up to 1080P @ 60fps | ||||
| MPEG-2, SP@ML, MP@HL, up to 1080P @ 60fps | ||||
| MPEG-4, ASP profile @ level 5, up to 1080P @ 60fps | ||||
| AVS, Jizhun profile @ level 6.0; up to 1080P @ 60fps | ||||
| AVS-P16 (AVS+), up to 1080P @ 60fps | ||||
| H.263, up to 576P @ 60fps | ||||
| VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P @ 60fps | ||||
| * Video Encoder | ||||
| Support video encoder for H.264, HP@level4.2 | ||||
| H.264 maximum frame rate is up to 1920×1080 @60fps | ||||
| Capable of encoding HEVC Main Profile @ L4.1 High-tier | ||||
| H.265 resolution and frame rate are up to 1920×1080 @60fps | ||||
| JPEG encoder included | ||||
| Audio | Serial Audio Interface | |||
| SPDIF | ||||
| Audio CODEC | ||||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||
| Network service | ||||
| Wi-Fi | Type | Support WiFi IEEE 802.11 b / g / n / ac / ax | ||
| Frequency | Support 2.4GHz/5GHz WiFi 6 | |||
| Antenna Type | Single antennas | |||
| Bluetooth | Bluetooth | Support BLE | ||
| Interface | ||||
| Charge | DC connector | DC IN(5V/2A) | ||
| Video output | HD | 4K*2K UHD Output, HD 1.4/2.0 | ||
| IR Reciver | On board | Remote Reciver Connect | ||
| Micro SD | External memory | Support | ||
| USB port | USB host | USB3.0 *1 | ||
| USB2.0 *1 | ||||
| Ethernet | Ethernet | 100M Ethernet | ||
| Packing | Product dimension | 82*82*17(mm) | ||
| Qty per unit packing | 1pcs | |||
| Unit packing: (LxWxH) | 170*115*55(mm) | |||
| Unit packing (G.W.) | 0.35Kg | |||
| Qty per export carton | 20PCS | |||
| Export carton (WxHxL) | 370*290*250 （mm） | |||
| Export carton (G.W.) | 6.8Kg | |||

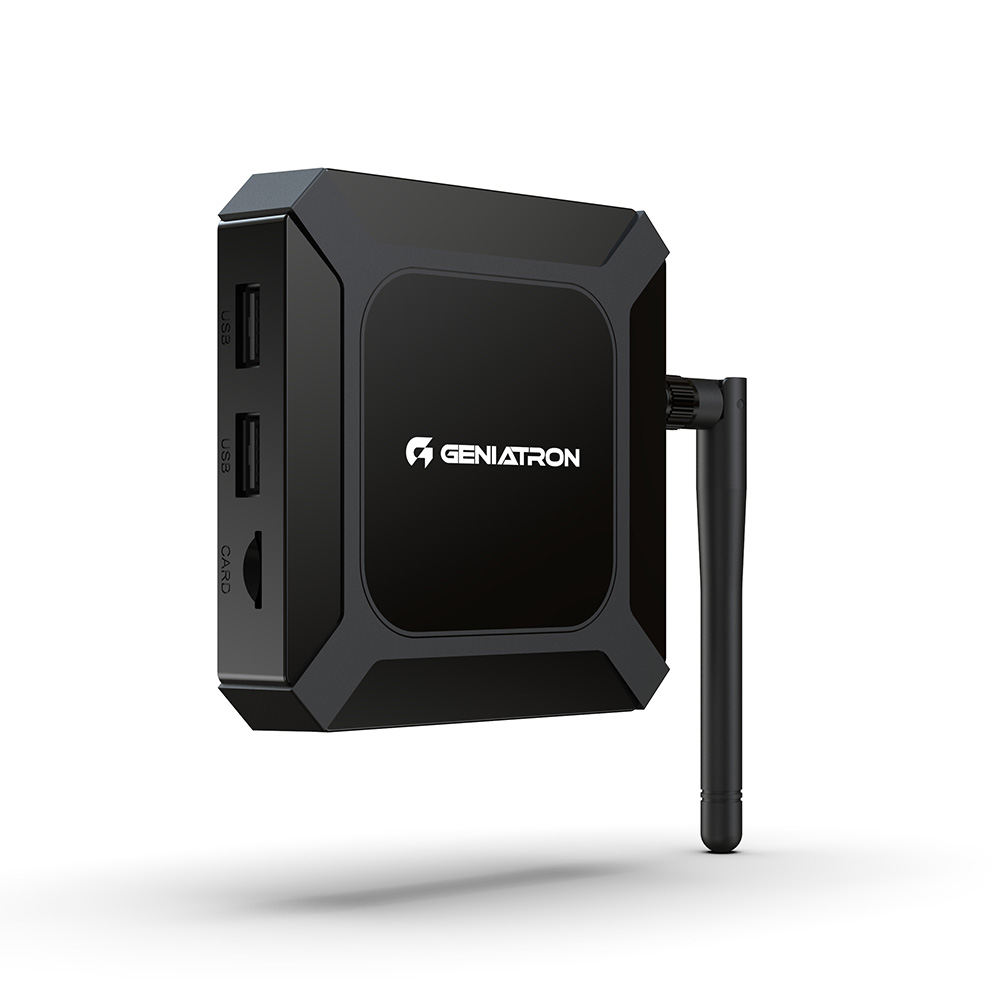

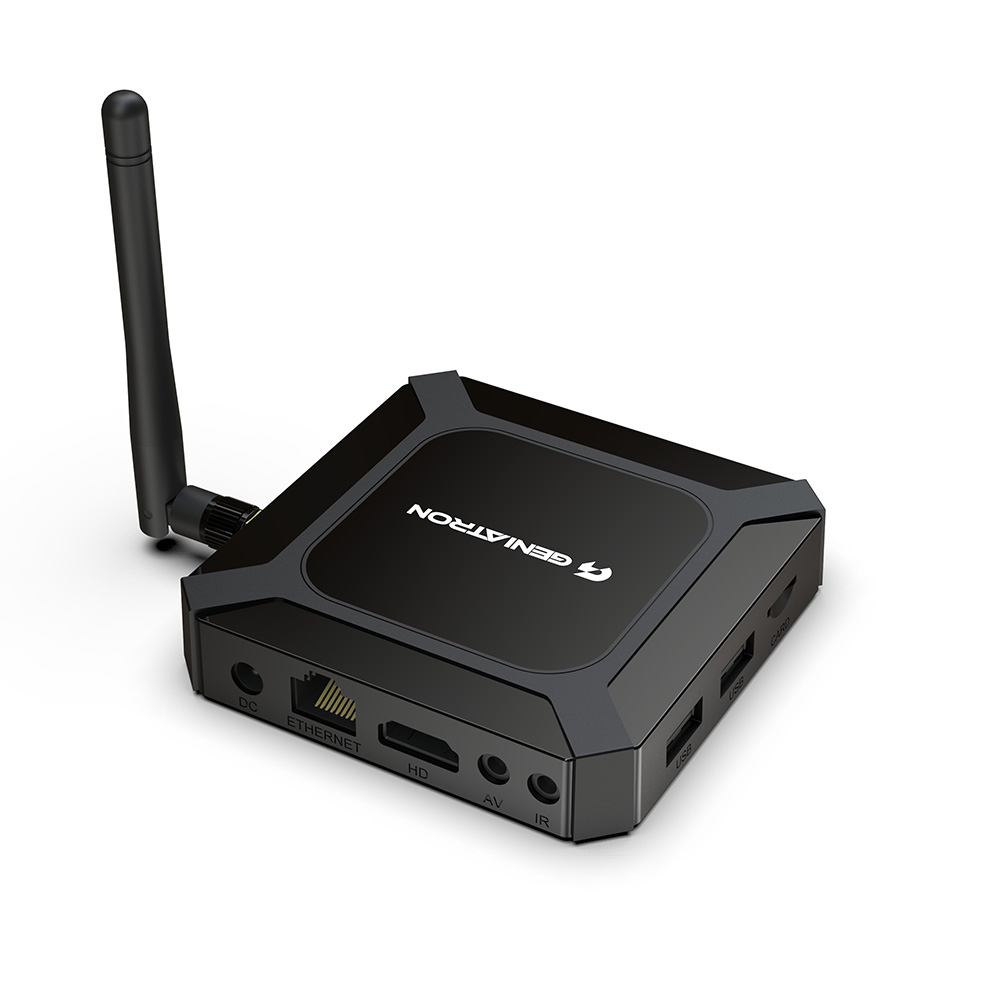

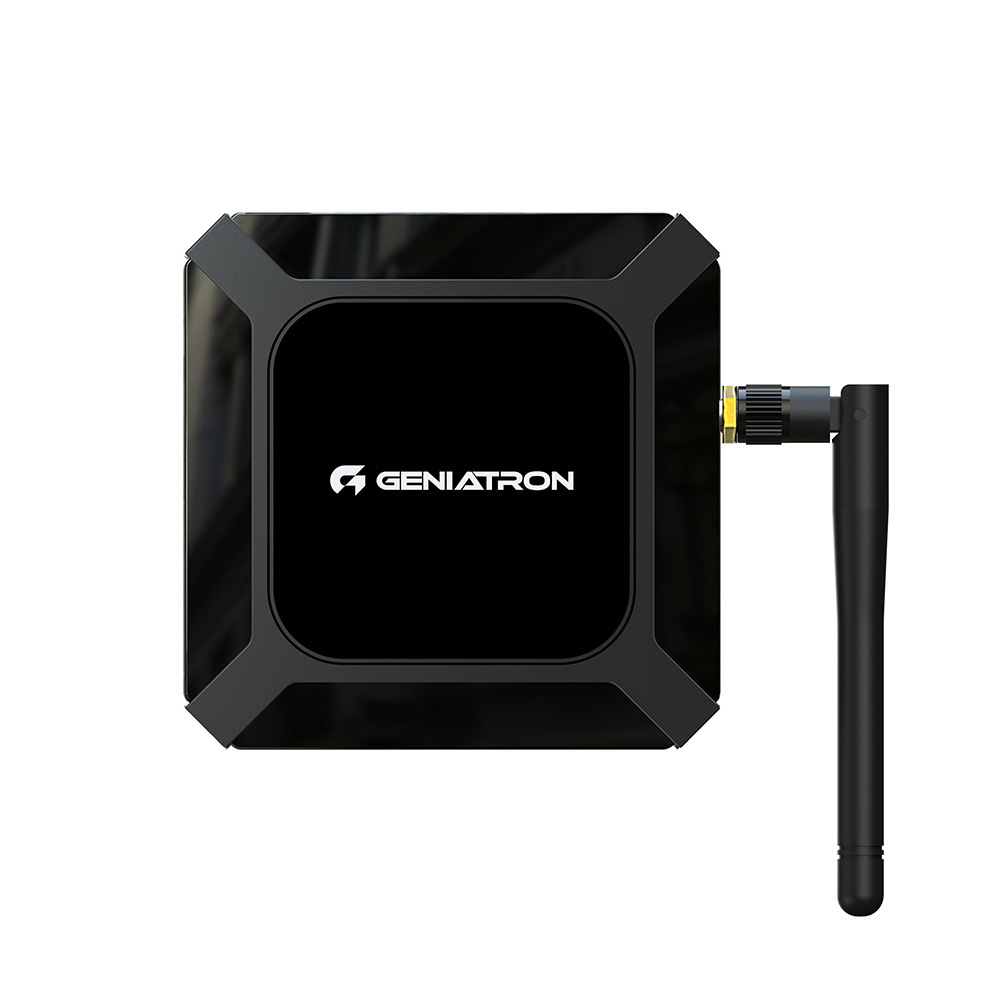

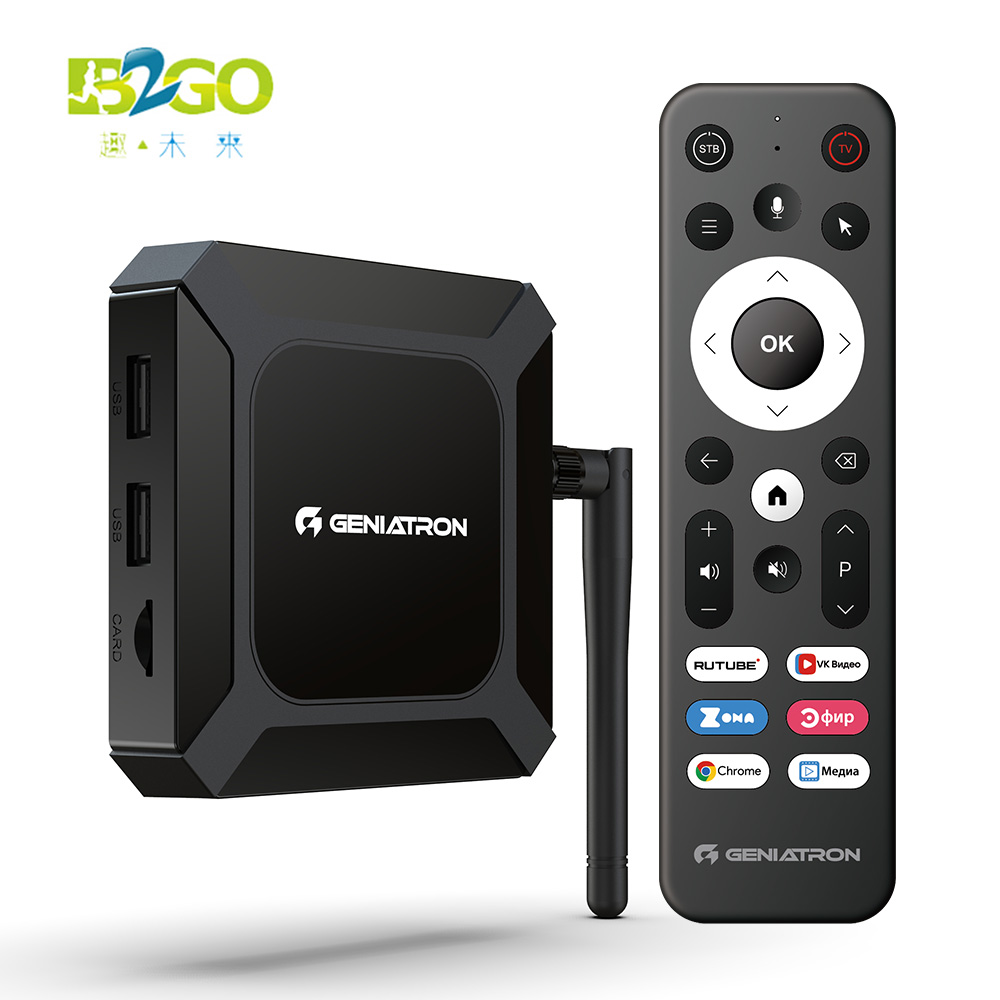

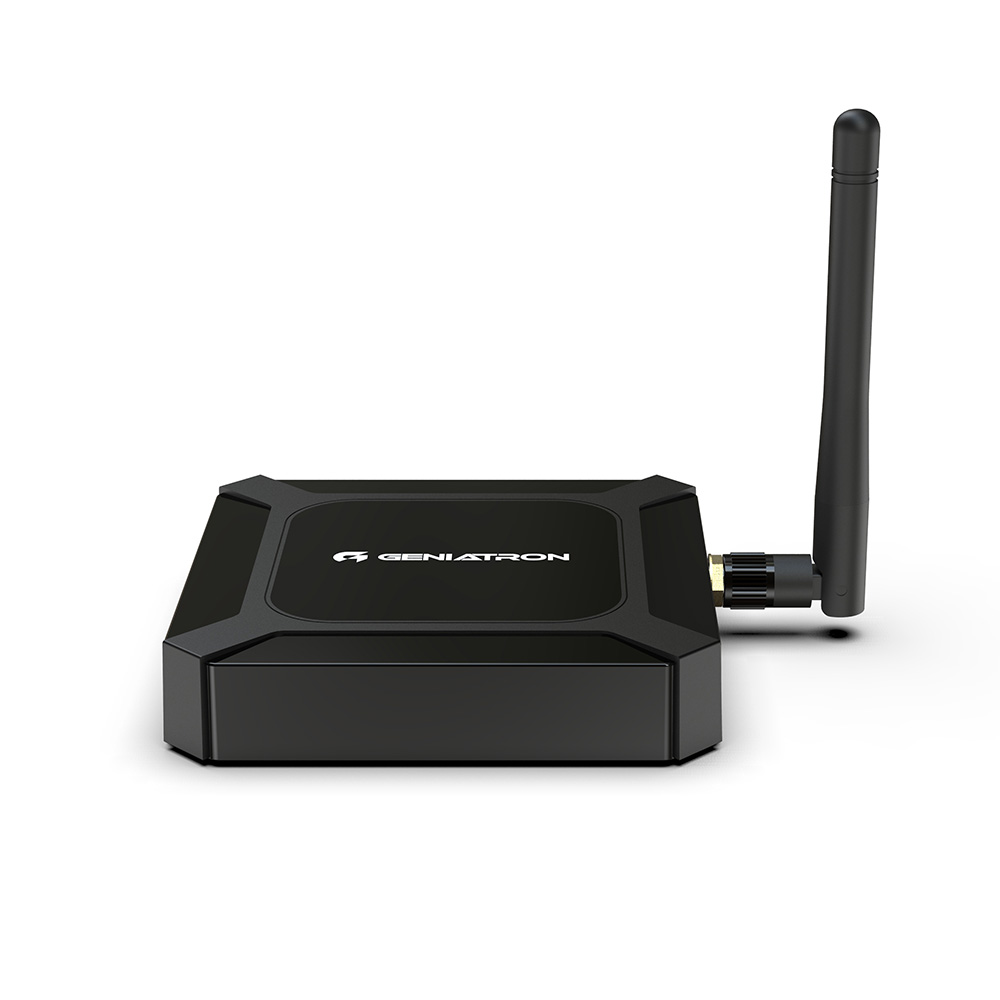

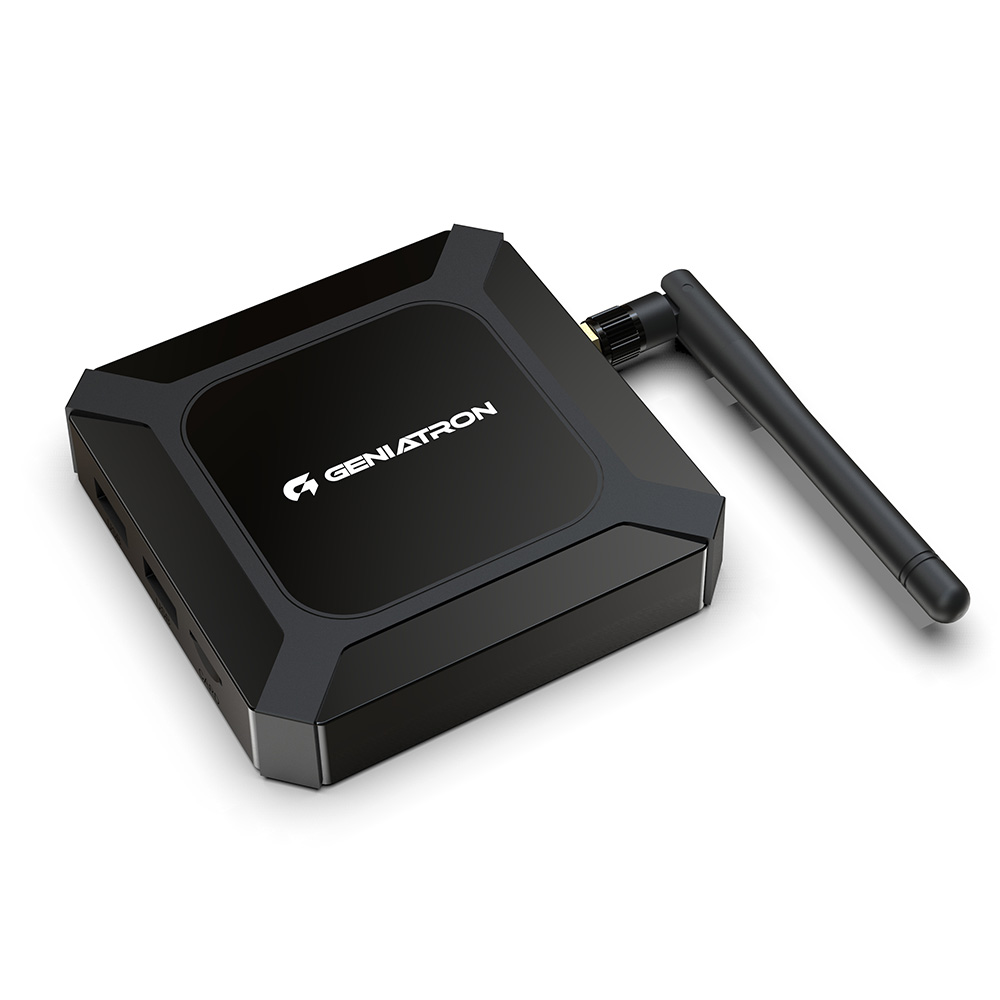

GENIATRON X96Q Ultra Pictures:
