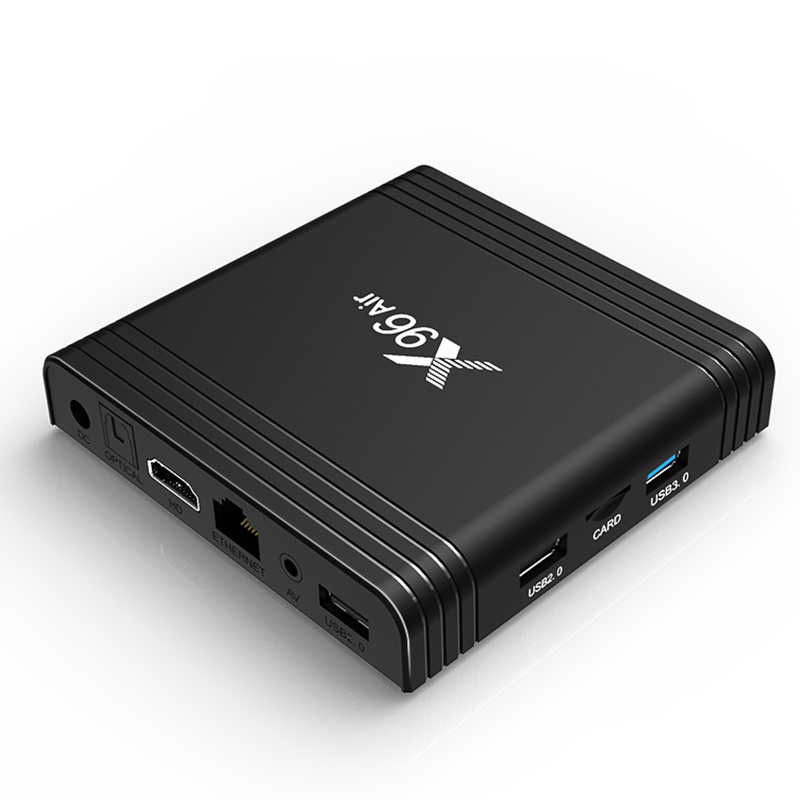

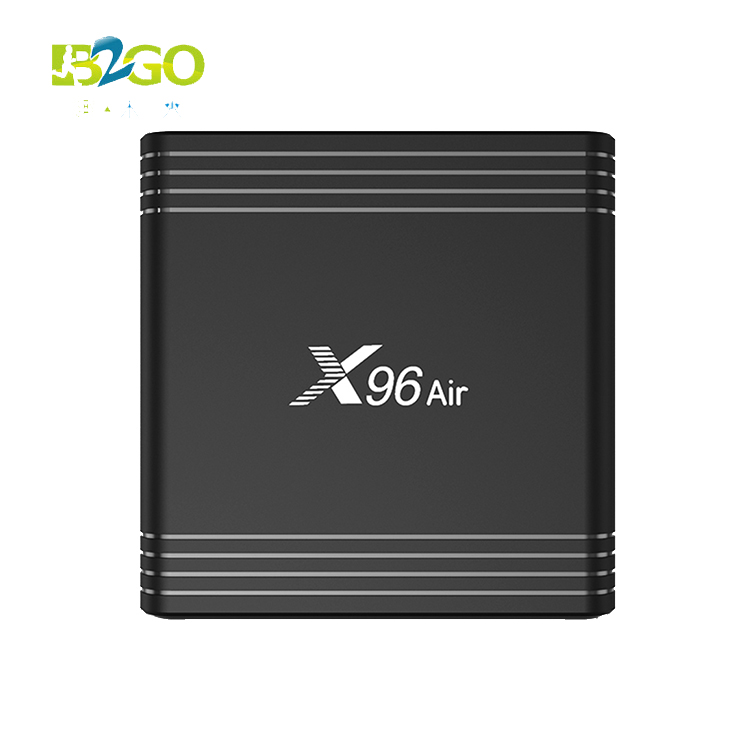

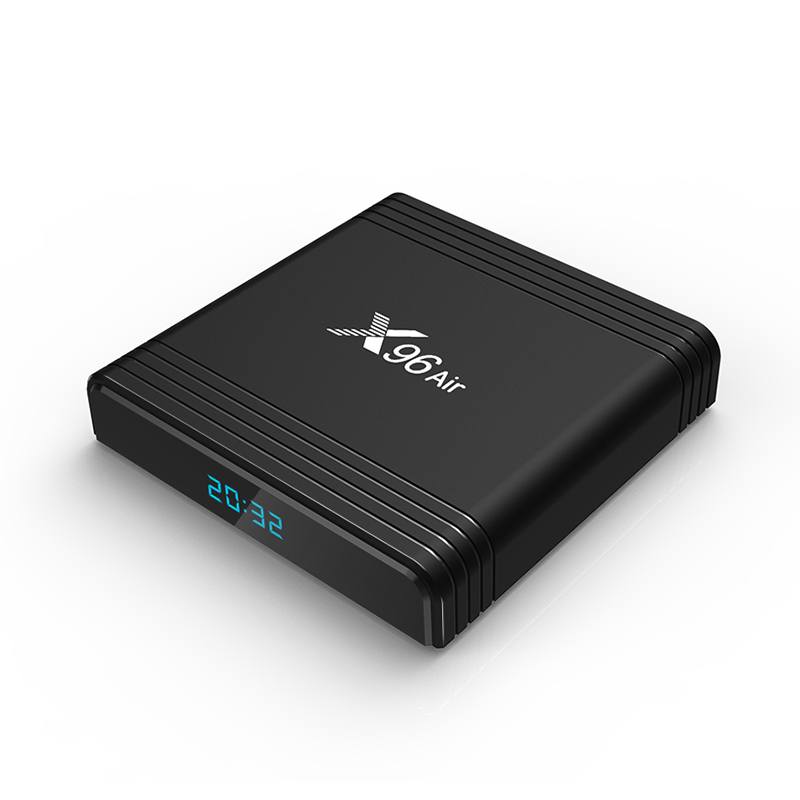

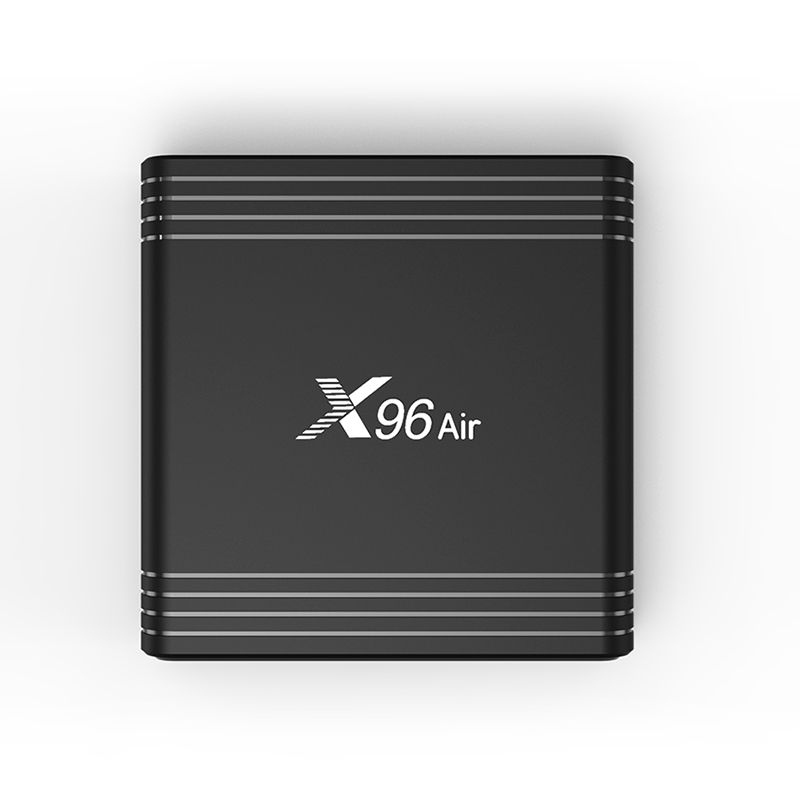

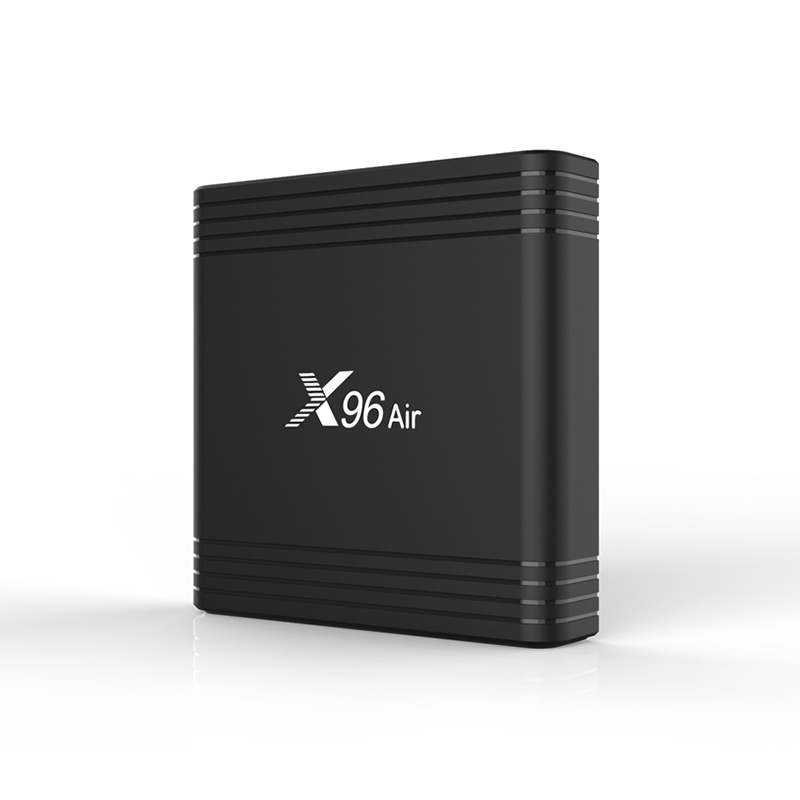

Amlogic S905X3 X96 Air Android 9.0 TV Box Support H.265 3D HDR10 8K 24fps

Specialize in OEM & ODM Customize:
● Support Boot Logo & Boot Animation Service.
● Support Pre-install APK Service.
● Support Customize UI Service.
● Support Logo Printing on the tv box.
● Support Customize Package Box and User Manual.
● Support Customize Remote Control
● Support OTA Update Service

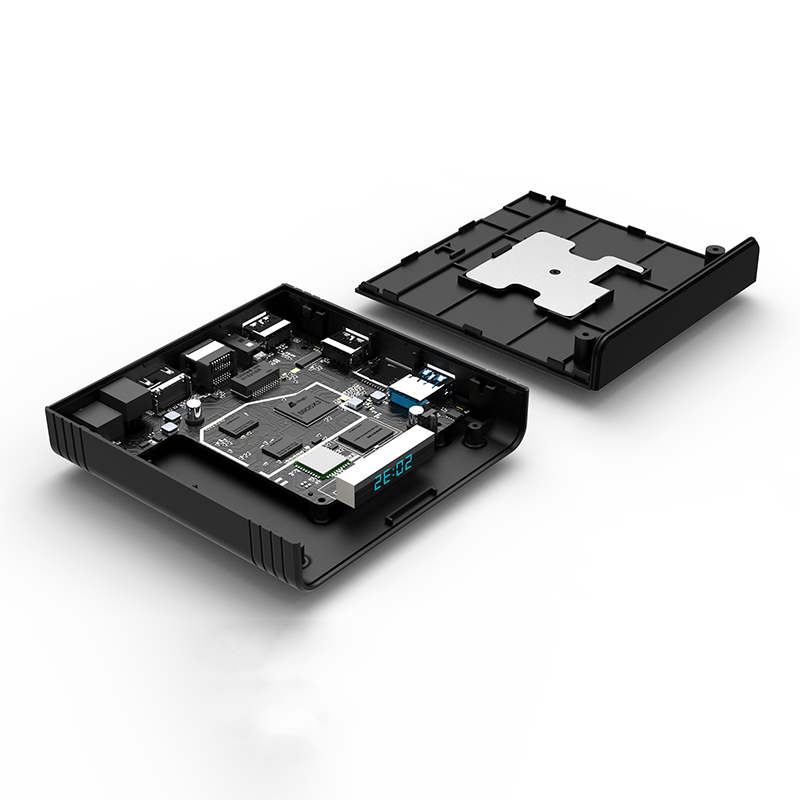

● Support Customize Design Motherboard and House Case
● Support Open Source for SDK
● Support Free Sample servoce for OEM VIP Customer
● Support 3Years Warranty time Guarantee

GET PRICE
6,142 6
  • Description

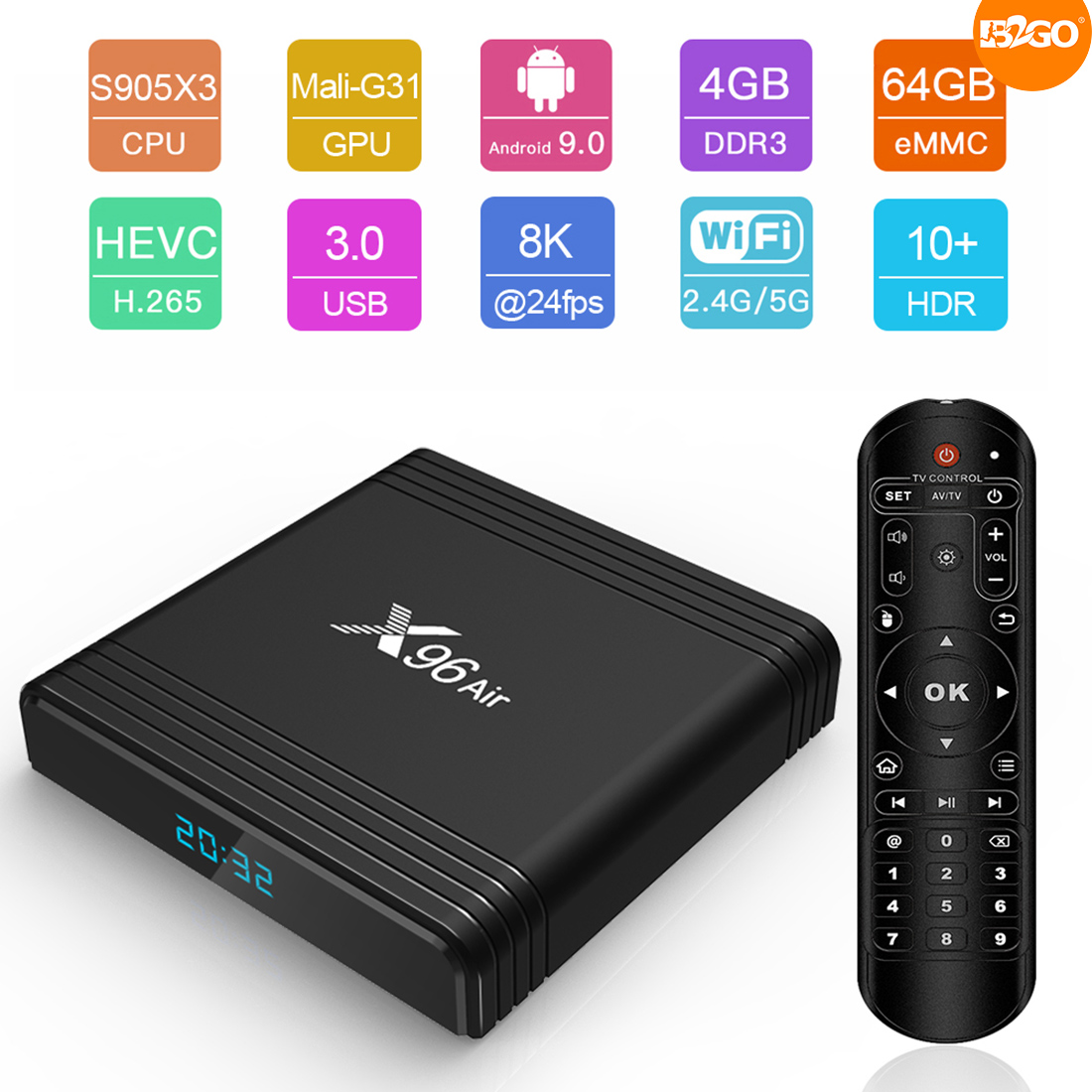

X96 Air Android TV Box Main Features:
Android 9.0 OS and Amlogic S905X3 quad-core 64-bit ARM CortexTM – A53
Come with Android 9.0 OS, powered by the high-performance Amlogic S905X3 quad-core CPU, including a Mali-G31 ™ MP2 GPU.
2GB / 4GB RAM + 16GB / 32GB / 64GB ROM
2GB / 4GB RAM + 16GB / 32GB / 64GB ROM provides plentiful room to quickly run the device. Supports TF card reading up to 64GB, it also greatly improves the reliability of your TV box.
HEVC H.265 3D HDR10
HEVC H.265 3D HDR10 hardware decoding can save 50 percent bandwidth resources, let you watch the 4K movie smoothly. Every detail of the screen is lucidity.
UHD 4K resolution with 8K resolution
Supports up to 8K 24fps UHD video hardware decoding, which provides you high definition viewing and fluent video playing, making it the highest resolution signal available for home movies.

X96 Air Android TV Box Parameter:
● CPU: Amlogic S905X3 64-bit quad core ARM® Cortex ™ A55
● GPU: G31 ™ MP2
● Android 9.0 OS
● RAM / ROM: 2GB / 16GB, 4GB / 32GB, 4GB / 64GB
● Support HD: 8K at 24fps, 4K at 60fps, UHD, HDR+, Airplay, Miracast

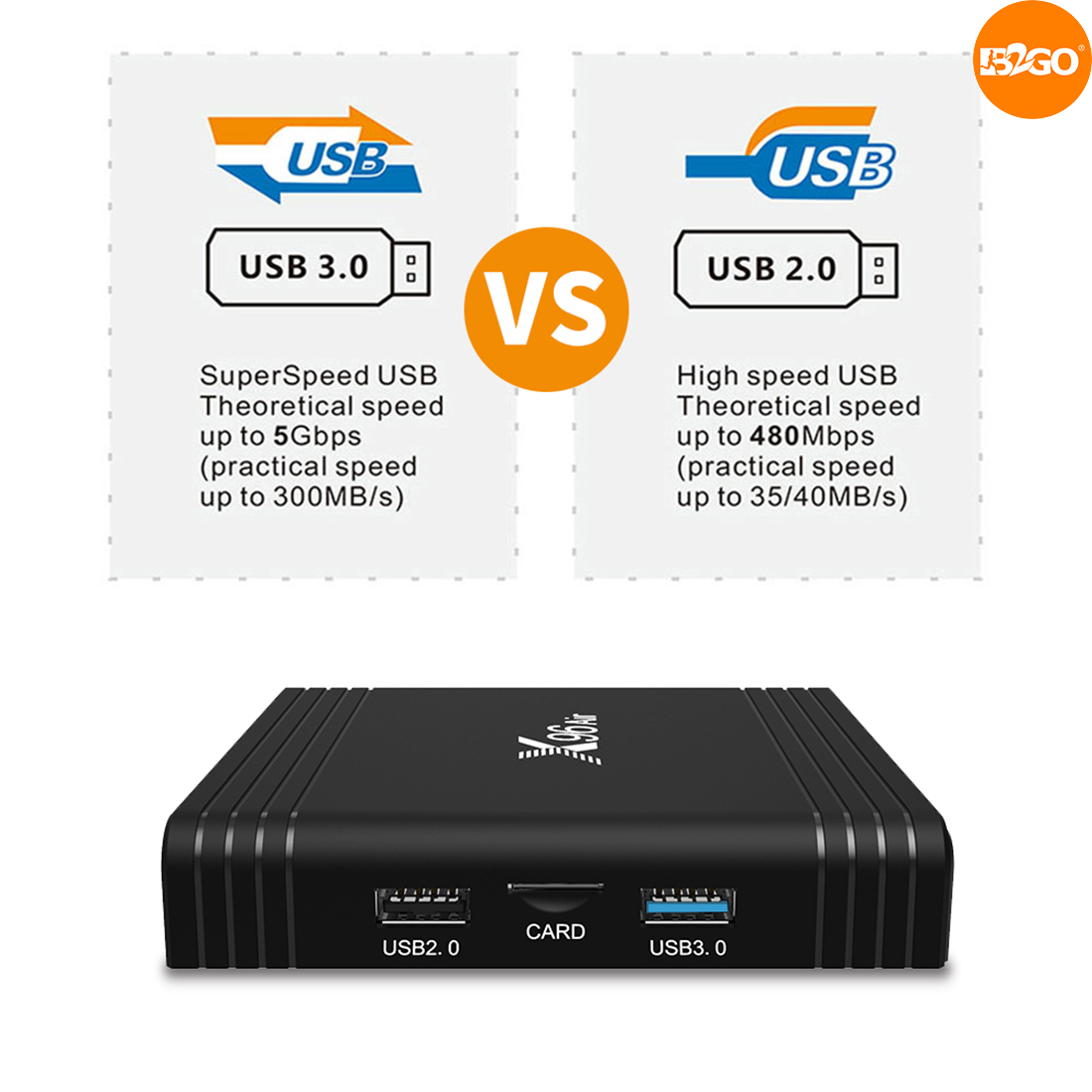

● Support HD 2.1, USB3.0, USB2.0
2GB RAM + 16GB ROM supports 2.4GHz WiFi, without Bluetooth 4.1

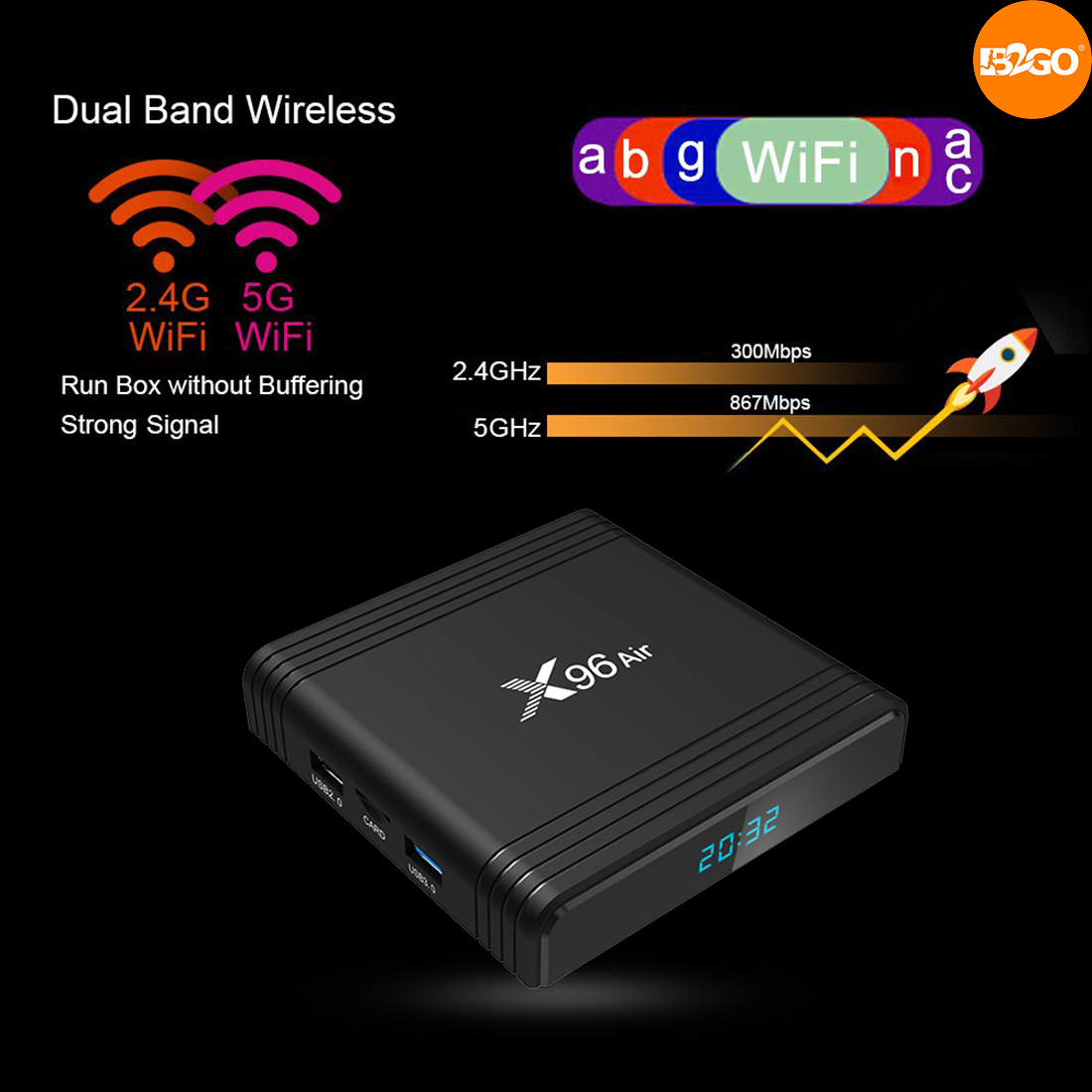

4GB RAM + 32GB ROM and 4GB RAM + 64GB ROM support 2.4G + 5.8GHz Dual WiFi, Bluetooth 4.1
● Support firmware online upgrade
● Remote control battery: not included

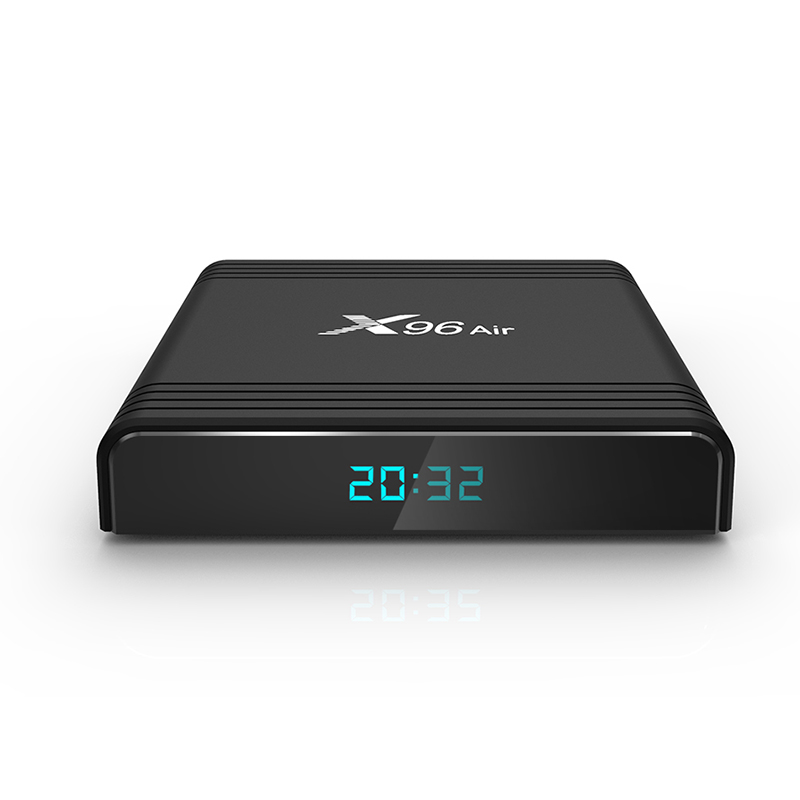

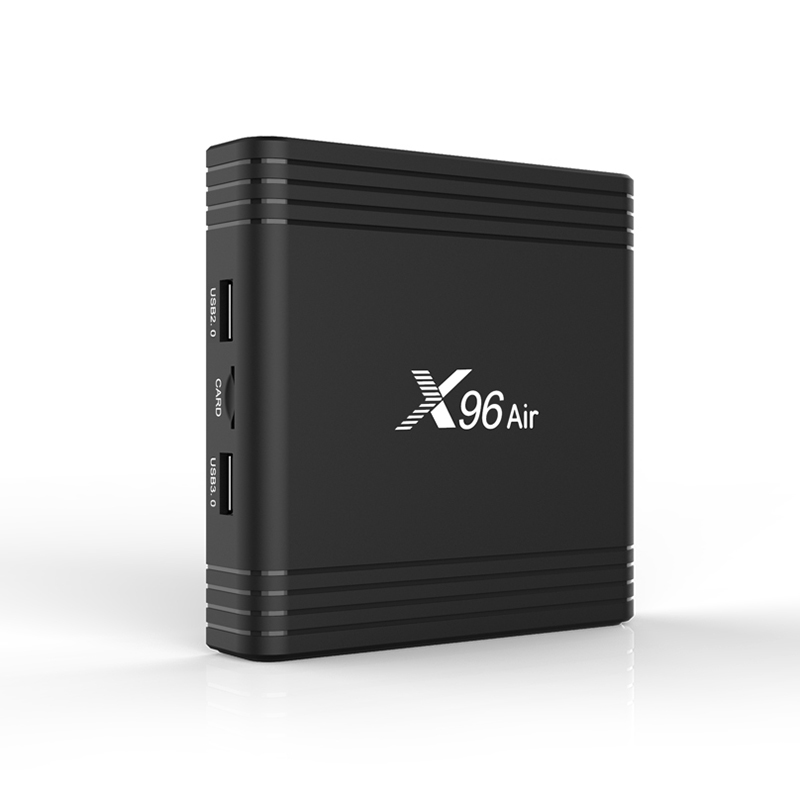

X96 Air Android TV Box Specification

General Brand: X96
Model: X96 Air
Type: TV Box
GPU: Mali-G31
System: Android 9.0
CPU: Amlogic S905X3
Core: Quad Core
RAM Type: DDR3
Max. Extended Capacity: TF card up to 64GB (not included)
Color: Black
Media Supported Decoder Format: H.263, H.264, H.265, HD MPEG4
Audio format: Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1 / 5.1 down-mixing Low-power VAD Built-in serial digital audio SPDIF / IEC958 input / output and PCM input / output 3 built-in TDM / PCM / I2S ports with TDM / PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs Built-in stereo audio DAC Supports concurrent dual audio stereo channel output with combination of analog + PCM or I2S + PCM
Video format: Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders  Support multi-video decoder up to 4x1080P @ 60fps  Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding  Video / Picture Decoding – VP9 Profile-2 up to 8Kx4K @ 24 fps – H.265 HEVC MP-10@L5.1 up to 8Kx4K @ 24 fps – AVS2-P2 Profile up to 8Kx4K @ 24 fps – H.264 AVC HP@L5.1 up to 4Kx2K @ 30fps – MPEG- 4 ASP @ L5 up to 1080P @ 60fps (ISO-14496) – WMV / VC-1 SP / MP / AP up to 1080P @ 60fps – AVS-P16 (AVS +) / AVS-P2 JiZhun Profile up to 1080P @ 60fps – MPEG -2 MP / HL up to 1080P @ 60fps (ISO-13818) – MPEG-1 MP / HL up to 1080P @ 60fps (ISO-11172) – RealVideo 8/9/10 up to 1080P @ 60fps – Multiple language and multiple format sub-title video support – MJPEG and JPEG unlimited pixel resolution decoding (ISO / IEC-10918) – Supports JPEG thumbnail, scaling, rotation and transition effects -.. Supports * .mkv, * wmv, * mpg, * .mpeg, * .dat, * .avi, * .mov, * .iso, * .mp4, * .rm and * .jpg file formats
Photo Format: HD JPEG, BMP, GIF, PNG, TIF
Support 5.1 Surround Sound Output: Yes
Product Details 5G WiFi: Yes
WIFI: 802.11 a/b/g/n/ac
Bluetooth: Bluetooth 4.1 + EDR
Power Supply: Charge Adapter

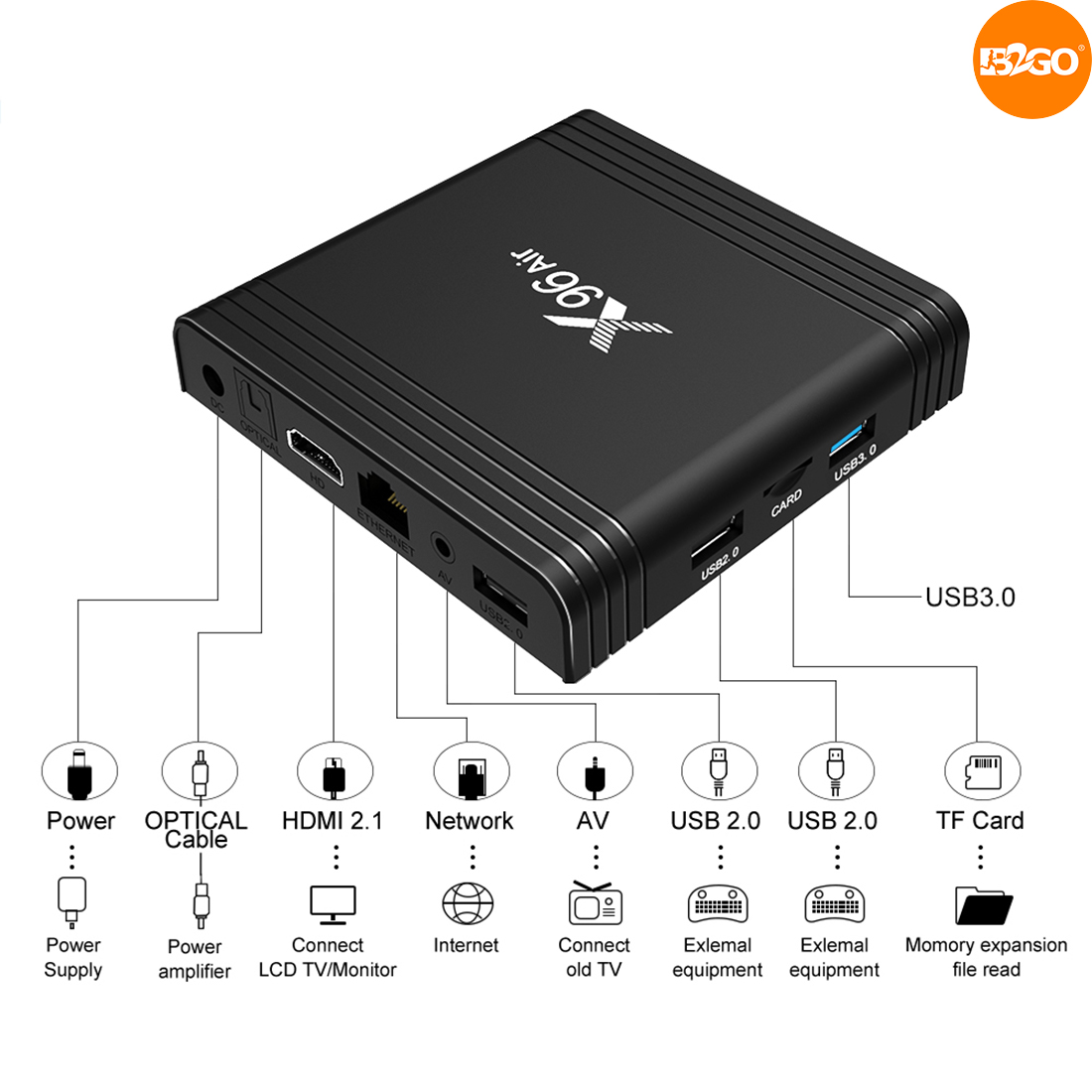

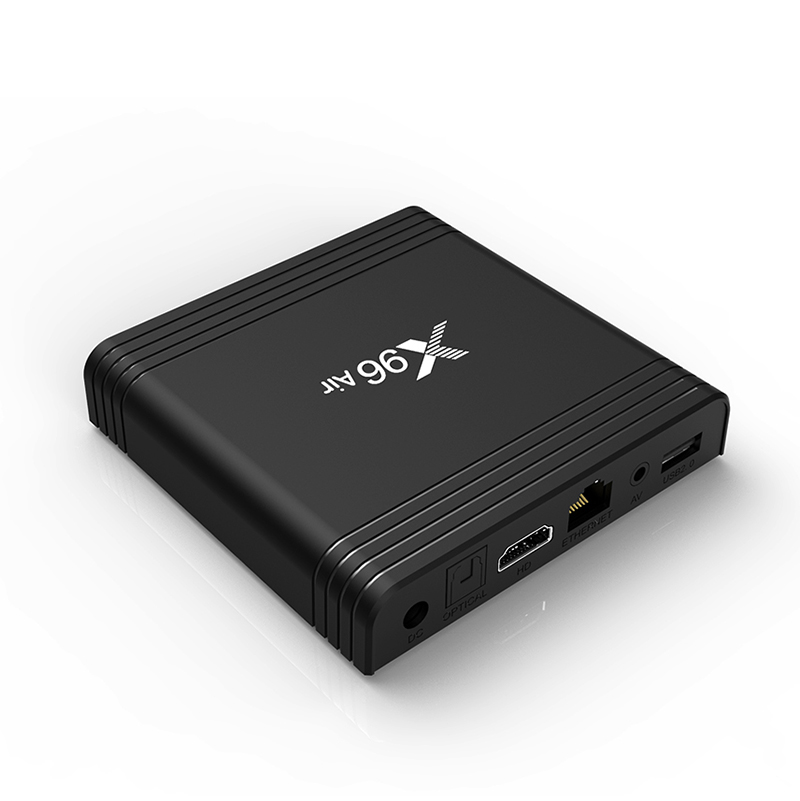

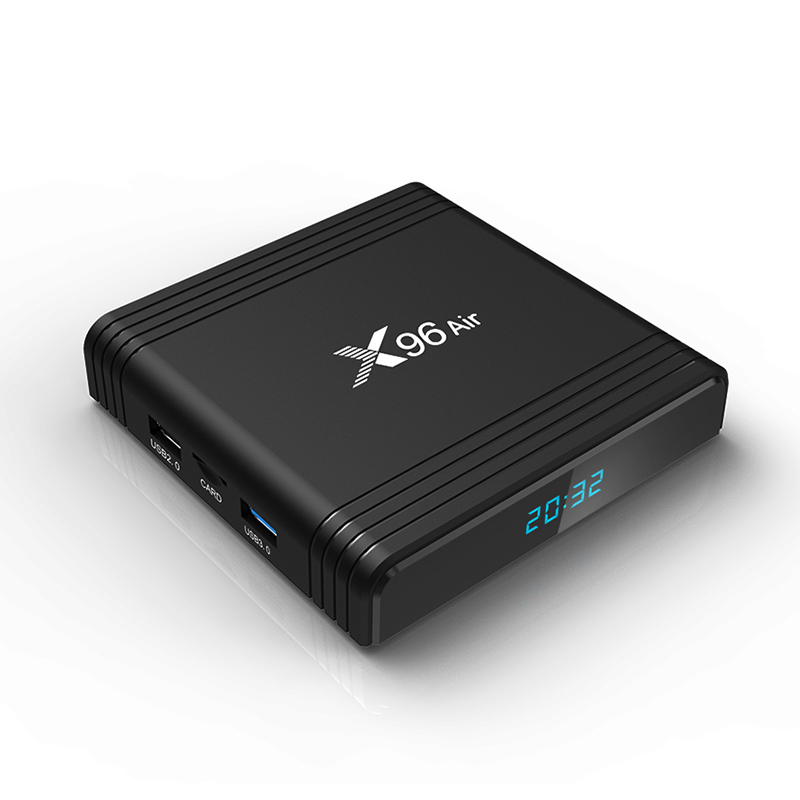

Interface: AV,DC 5V,HDMI,RJ45,TF card,USB2.0,USB3.0
Language: Multilanguage
HDMI Version: 2.1
Other Functions: Others
HDMI Function: HDCP
Power Consumption.: 5W
RJ45 Port Speed: Support 10 / 100M
Firmware Information System Bit: 64Bit
Power Requirement Power Type: External Power Adapter Mode
Power Input Vol: 5V
Power Adapter Input: 100-240V / 50-60Hz
Power Adapter Output: 5V 2A
Dimensions and Weight Product weight: 0.1950 kg
Package weight: 0.5350 kg
Product size (L x W x H): 10.50 x 10.50 x 2.00 cm / 4.13 x 4.13 x 0.79 inches
Package size (L x W x H): 16.80 x 13.60 x 8.00 cm / 6.61 x 5.35 x 3.15 inches

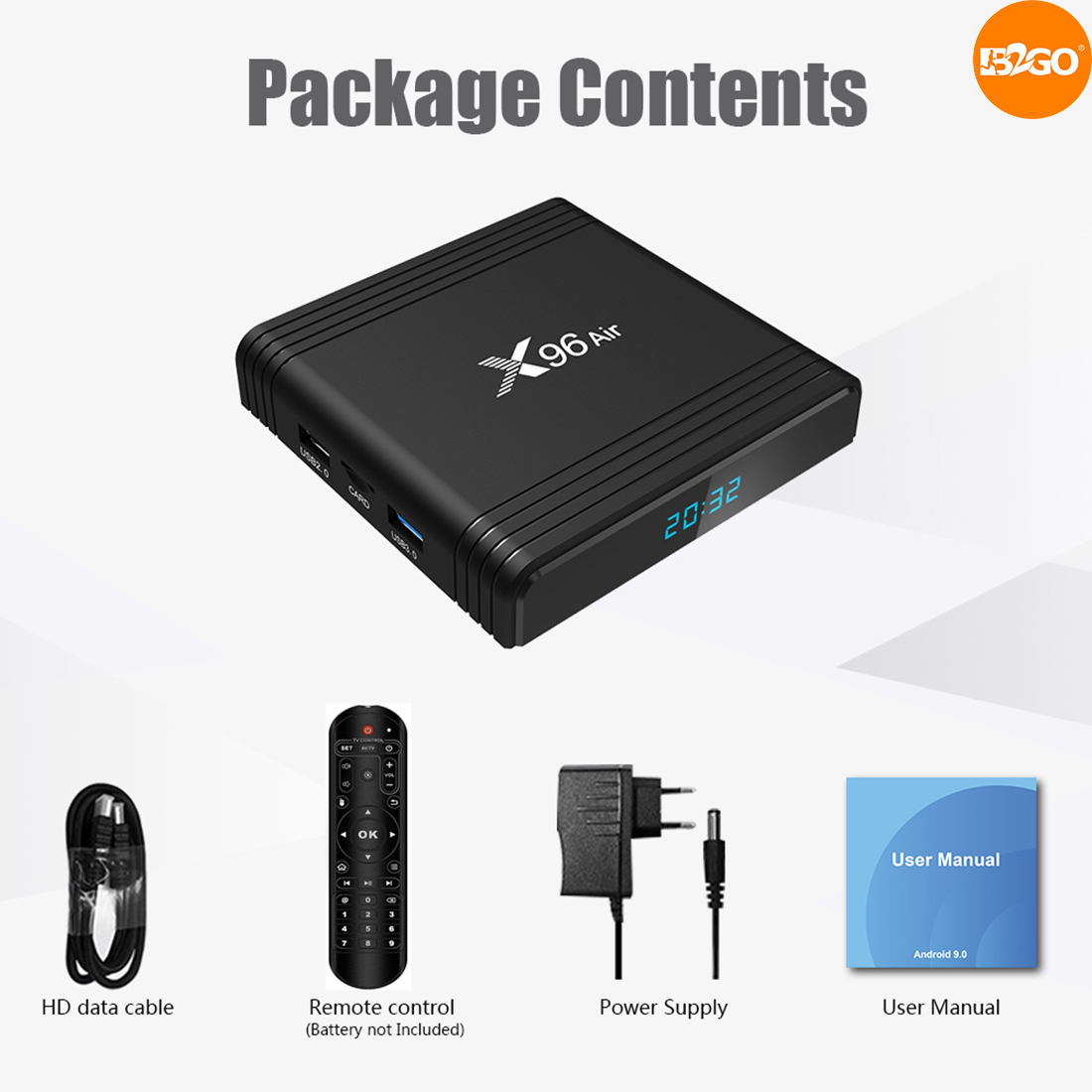

Package Contents Package Contents: 1 x X96 Air TV Box, 1 x Remote Control, 1 x Power Supply ( 5V / 2A ), 1 x HD Cable, 1 x English User Manual

x96 air tv box x96 air android tv box x96 air android box x96 air amlogic s905x3 x96 air 2gb x96 air 4gb x96 air firmware x96 air factory x96 air set top box x96 air smart tv box
